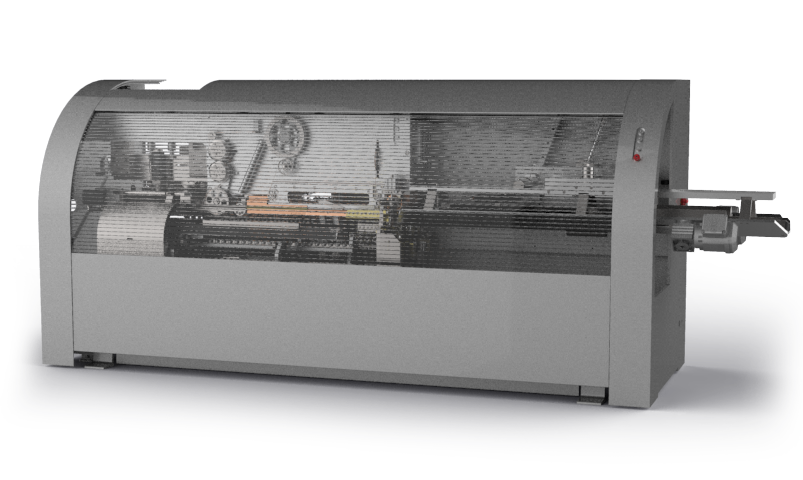

X7 Configuration_Archiv

FORMAT OPTIONS
x
mm
Max. Speed:
cpm
EQUIPMENT

To prevent that the seam coating breaks off the seam which could contaminate the can-content.

Inside

For a silver coloured seam and to prevent that the seam coating breaks off the seam

Outside

Wired panel with adjustable 12.9" HMI

Wired

Wireless 9.7" HMI in a multifunctional aluminium housing

Wireless

With Infrared and Acceleration sensors, including can ejection system

Qualimaker™ 2

Can ejection kit, including software, sensor and eject cylinder to reject cans which are detected as "faulty" can by the Pacemaker™

NOTE: Not required when Qualimaker2™ is chosen

Single can ejection

Signal and status lamp (green, yellow, red)

3 color LED lamp
EXTRA EQUIPMENT

Water cooling unit (chiller), with bypass circuit, including cooling additive and water filter system. Water cooling unit is needed for canbody production with mercury free welding heads, but could also be organized locally according to Can Man's specifications

Cooling unit

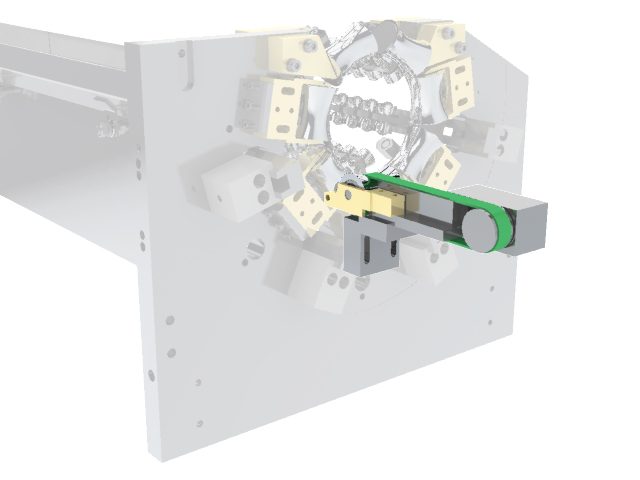

Belt to guide undersquare canbodies (height < diameter) smoothly through the calibration crown

Belt for short cans

Additional welding arm including welding roll PowerROLL™ if big variances of diameters are welded to reduce welding roll costs

ø ≥ 52

Additional welding arm including welding roll PowerROLL™ if big variances of diameters are welded to reduce welding roll costs

ø ≥ 99

ORC, lacquer supply by inverted bottle

Outside Lacquering
ACCESSORIES

Recommended for a precise re-grinding of welding rollers

Welding roller dressing unit

2 copper wire ends can be welded if copper wire coil needs to be exchanged; 1 die for 1 or 2 copper wire diameter (to be specified) included

for copper-wire 1.24 / 1.38 mm
for copper-wire 1.38 / 1.50 mm

For "offline" control of blanks, portable and made with first quality materials for highest measuring precision

Blank measuring unit up to ø 158 mm

For "offline" control of blanks, made with first quality materials for highest measuring precision

For ø up to 190 mm

For "offline" control of blanks or sheets up to a length of 1000 mm, made with first quality materials for highest measuring precision

Blank measuring unit for ø up to 310 mm

Measuring unit for inside diameter, including 1 tooling for 1 canbody diameter; available for ø range of 52 - 127 mm

Inner diameter gauge

Test of the entire seam including the beginning and end of the can.

Balltester

Easy spring back (hardness) testing of tinplate before further processing.

Tinplate hardness tester

Summary
