Problem:

The cold plate of the IGBT modules in the pacemaker HF (V1&V2) has reached the maximum temperature limit of 55°C.

In normal operation, solenoid valve Y126 should open at 35°C and close again when the cold plate has cooled down to 30°C.

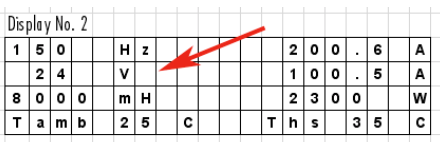

Note: If you push the down arrow button, you can observe all values, including the current temperature values.



Possible Causes & Resolutions:

Check following as soon as the solenoid valve Y126 switches on (when cold plate has reached 35°C):

  • Clean all filters, replace filter cartridges
  • Clean the solenoid valve Y126: Switch off the cooling unit and disconnect the water inlet to the Pacemaker HF and drain the water. Remove coil and the piston unit with a torx screwdriver. Blow out the valve and clean the rubber seal. Reassemble the valve properly: Insert the piston unit with the spring on top, so the rubber seal is closing the outlet hole.

  • Disconnect the return hose from the water station: There is a reducer in the hose ! The hole may be blocked. Blow out/clean.

Note: In the Pacemaker HF V1 devices, the solenoid valves are integrated in the Pacemaker HF housing. The system works similar, even the solenoid valve type is the same.



If the solenoid valve Y126 does not switch on, although the temperature exceed 35°C, check the following points:

  • Check relay RL5 on the main board: If the temperature rise up to 35°C it should switch on. The LED LD20 indicates whether the relay is switched on.
  • If LD20 is on and still no power on terminal 9, check the jumper behind the relay: The jumper must connect both pin.
  • Possibly the relay is broken. Exchange the relay.



Problem:

Circuit breaker Q5 trips when the machine is switched on or during production.

Possible Causes or Resolutions:

  • Measure voltages at all phases, even under load. It is possible that one phase did drop down, and this triggered the circuit breaker.
  • Measure the current of each phase with a current clamp after Q5. If the measured value is below the value of the circuit breaker and Q5 still keeps tripping, the circuit breaker may be defective. Replace it.
  • Maybe the parameter “Low bat voltage” (coming from Pacemaker) is set too low: That means that the contactor in the Pacemaker closes too early with a precharge voltage that is too low and therefore Q5 trips. To check this, please open a ticket to contact CanMan.

Problem:

Homing for the drawer pull-out system is not executed or stops and error message “Automatic Homing Failed” appears.

Possible Causes & Resolutions:

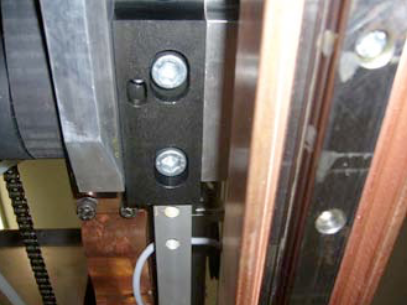

  • Check the light barrier in front of the drawers. It must be ensured that the sensor above has a direct line of sight to the reflector below. If necessary, realign and check that all screws of the holder are tightened.









Problem:

All drives are starting correctly, but the vacuum and welding current are not active.

Possible Causes & Resolutions:

  • Welding pressure has been set below the min. value of 2.0 bar => Check the welding pressure setting value on the precise air-regulator and reset if needed.
  • Solenoid valve welding pressure Y10 does not work correctly  => Check the welding pressure valve Y10. Does the valve switch correctly and do the welding rollers close?
  • Welding rollers are closing and welding pressure is set correct, but no welding pressure value is displayed on the HMI => Check whether the analogue sensor B77 is working correctly or not.









Problem:

Some Beckhoff i/o terminals are not active and status LEDs are off, control does not respond to commands.

Possible Causes & Resolutions:

  • The 24Vdc supply of the EK1100 coupler or the EL9410 intermediate supply terminal is missing or the voltage is too low > Check all connections, measure voltage, check fuses.
  • Bad contact between the terminals > Switch off the main power and remove the terminals. Clean the contact between the terminals.
  • Defective EL9410 intermediate supply terminal > Exchange terminal.
  • Defective EK1100 coupler > Exchange coupler.







Problem:

  • Welding process starts but welding current is not constant. Finally the welding wire breaks.



Possible Causes & Resolutions:

  • Bad condition of the lower welding roller or upper roller head. In this case, the current only flows through the welding wire and no longer over the welding roller or upper roller head. The welding wire heats up and breaks. Exchange lower welding roller. If the problem still exists, replace the upper roller head.

Reason for error message:

  • The Pacemaker™  capacitor bank voltage is to low.



Possible causes:

  • Supply voltage mains drop down. Please check all phases even when the machine is running. Does a phase drop down?
  • Check complete wiring, Are all clamps tightened?

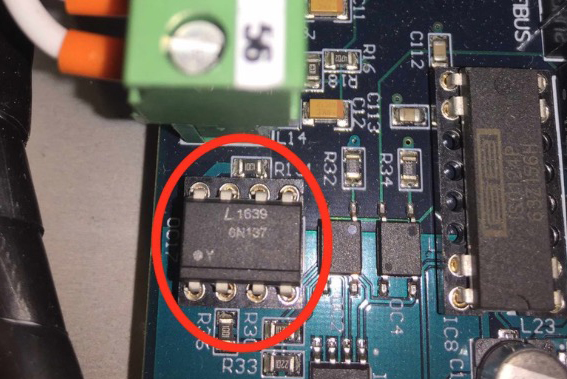

  • Check the 24Vdc supply terminals 17/18 on Pacemaker board. This 24Vdc are supplied by the welding machine and has to be always on. If the 24Vdc is missing, the precharging of capacitors works, but the main contactor will not switch on => Ubatt Error





  • Check the 24Vdc output terminals 41/42. After precharging is complete, 24DC should be applied here to close the main contactor. Possibly the small print relay on the electronics board is defective.



Problem:

PowerCURE display shows error message “E-Stop remote”

Possible Causes & Resolutions:

  • One of the overcurrent motor protection relays Q27 for the fan exhaust has tripped.
    Check the fans for lacquer residue. Can the fan rotate freely? Not blocked by lacquer?
  • Inverter for bridging conveyor is in error state. Check the belts. Free of lacquer? Check motor.
  • Inverter of conveyor is in error state. Check the conveyor belts. Check motor.



Problem:

After main switch off and on again, HMI piece counter values and settings are lost or old recipes are loaded.

Possible Causes & Resolutions:

  • IPC has not shut down correctly.Check the IPC after you switched off the main switch: Normally it will continue to run for at least 30 seconds to shut down correctly. If LED’s of IPC goes off within a few second, the battery of the UPS – unit is dead and needs to be replaced.



Problem:

During production, the error message “over temperature upper current conductor” appears. This means that the cooling is no longer sufficient to keep the upper current conductor constantly below 40 degrees Celsius.

Possible Causes & Resolutions:

If the cooling unit is working properly (temperature and pressure is OK) and no flow switches are giving an error, then contamination is most likely the cause of the problem.

Clean the cooling circuit, especially the cold-water circuit in this case, including the cooling unit. Check the water level in the cooling unit and top up if necessary and replace lubricant (if PowerROLL – coolant or DISCON is used) and clean the cooling system as recommended every 6 months.

Cooling emulsion exchange and cleaning

Problem:

Downstacker motor doesn’t move correctly to the reference position, stops or suddenly changes the direction of rotation. Display of servo controller U16 shows „IMax“ or „P03 trip“.

Possible Causes & Resolutions:

To check:

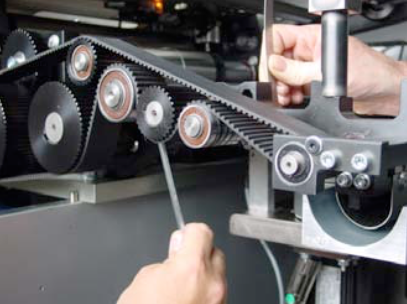

  • Mechanical condition of downstacker motor: Turn it by hand and check that everything runs smoothly.

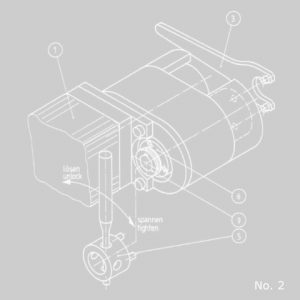

  • Resolver mounting: Is firmly connected to the motor shaft?
  • Resolver bearings: Remove the resolver from the motor shaft and check if it is turning smoothly.
  • Resolver and motor connections: Motor and resolver are connected correctly and clamps/plugs tightened?
  • Motor windings: Disconnect the motor from the inverter and check the windings with an ohm meter (U-V,U-W,V-W). All values are equal?
  • Output servo controller: Measure the inverter output voltage when it should run (U-V,U-W,V-W). If 0V and display shows „IMax“ maybe servo controller defective.

Problem:

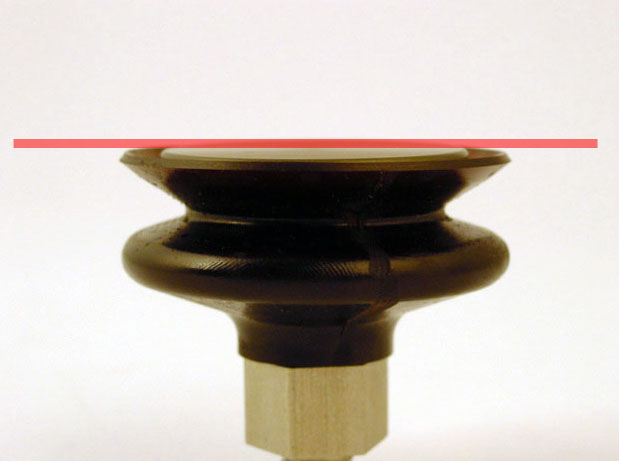

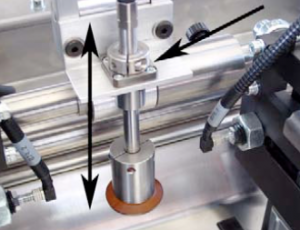

Suction cup malfunction.
Vacuum not working, constantly on or constantly blowing air instead of (sucking and then blowing) once only.

Possible Causes & Resolutions:

  • Most likely a relay is defective and needs to be replaced.
  • Vacuum suction injector is defective and needs to be replaced.



Components:

KA1.2-1.7 Relays

Y108 Vacuum blank feeder back
Y109 Vacuum blank feeder front
Y110 Vacuum 1.Table

Y111 Blow off blank feeder back
Y112 Blow off blank feeder front
Y113 Blow off 1.Table

Spare Part:

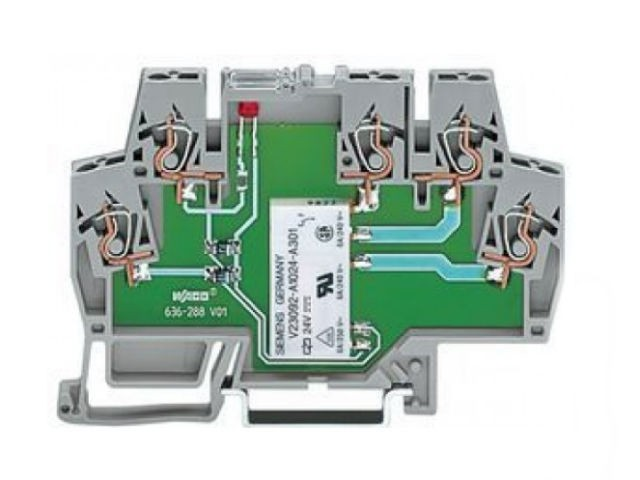

003246                        Relay / terminal 1 two – way contact
https://www.canman.ch/shop/shop-search/query/003246/?q=003246&search=Search

010482                        Vacuum suction injector        (Y109/Y112)

010486                        Vacuum suction injector (Y108/Y111, Y110/Y113)

Problem:

Drives start but the slitter does not start cutting in automatic mode. Pockets on sheet collector are full but stacks are not pushed out automatically and the button on the panel for pushing out manually does not work either.

Possible Causes & Resolutions:

  • Signal feeder active: Check the signal from feeder. When the feeder pick up the sheet stacks inside collector, the push out of new sheet stacks is blocked.

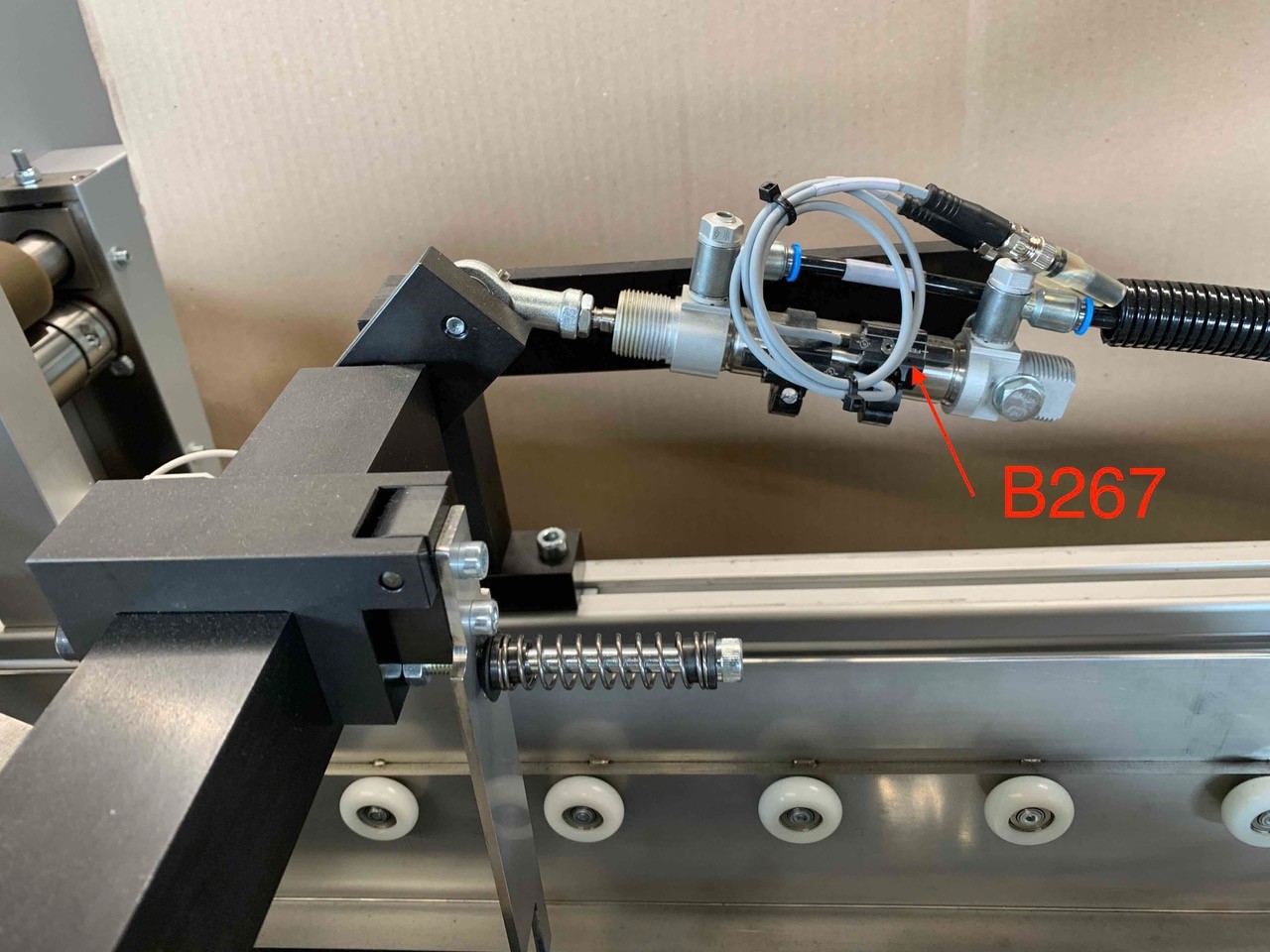

  • Reed switch B267 blank collector closed: If the blank collector is not closed, the function push out sheet stacks does not start. Check reed switch B267.



  • Light barrier B266 sheet stack in pick-up position: If this light barrier is damaged or not adjusted well, the function push out sheet stacks does not start.



  • Wrong setup for blank collector: If wrong type of blank collector is selected, push out of sheet stacks is disabled.

Problem:

Machine stops and message „Pacemaker: Profibus communication error“ is displayed.

Possible Causes & Resolutions:

  • Cooling water valve: Wrong type of valve or plug without protective circuit (suppressor). The voltage peaks can cause interferences in the Pacemaker electronics. Always use the original plug and valve type.
  • Profibus plug: On the plug of first and last client of profibus system the termination resistant must be set to ON. Otherwise interference may occur.
  • Profibus cables: Check the position of the cables in the control unit. If they are close to contactors, high voltage peaks can create interferences.

Problem:

The HMI cannot be started and the browser shows „NOT FOUND, The requested URL /en/default.htm was not found on this server“.

Possible Causes & Resolutions:

Not connected to Canman Wifi (only for wireless connected iPad’s): Check the wifi settings. Choose Canman wifi and try again.

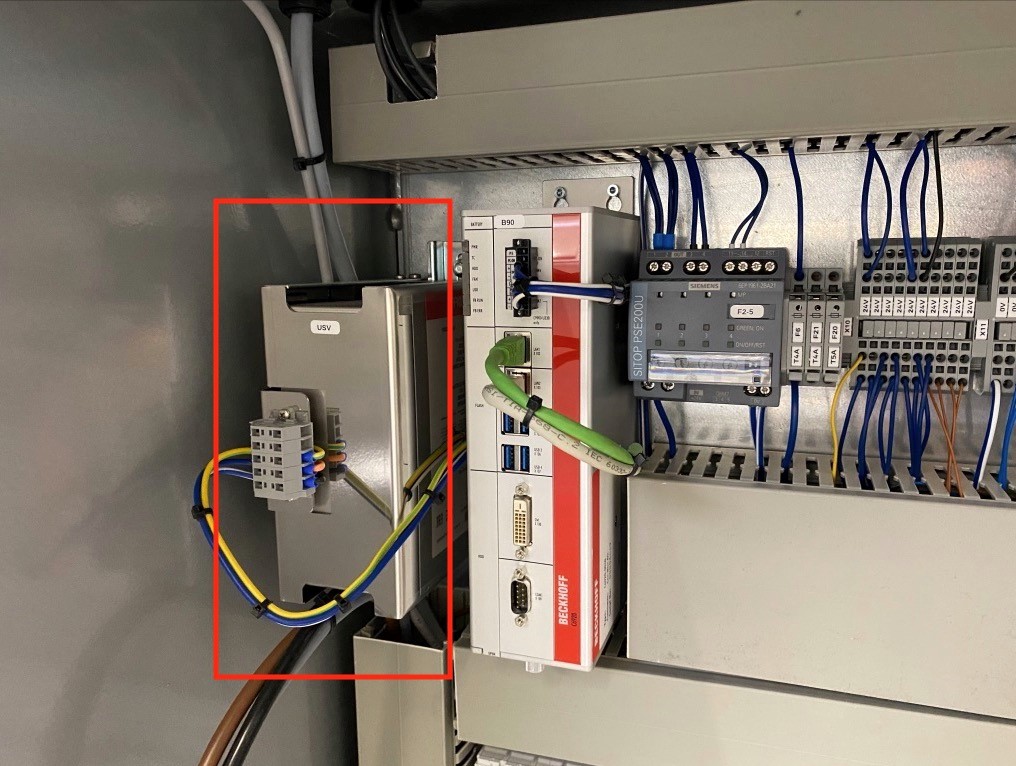

IPC has not shut down correctly: In this case probably the HMI software can’t start up automatically by restarting the machine.

Check the IPC after you switched off the main switch: Normally it will continue to run for at least 30 seconds to shut down correctly. If LED’s of IPC goes off within a few second, the battery of the UPS – unit is dead and needs to be replaced.  Contact Canman for online support to restart HMI.

Problem:

First operation feeds the stripes too early into the upper magnetic belt of 2. table. Therefore the stripes do not stop on the upper magnetic belt and will be ejected through the slot in the frame of the 2. table.

Possible Causes & Resolutions:

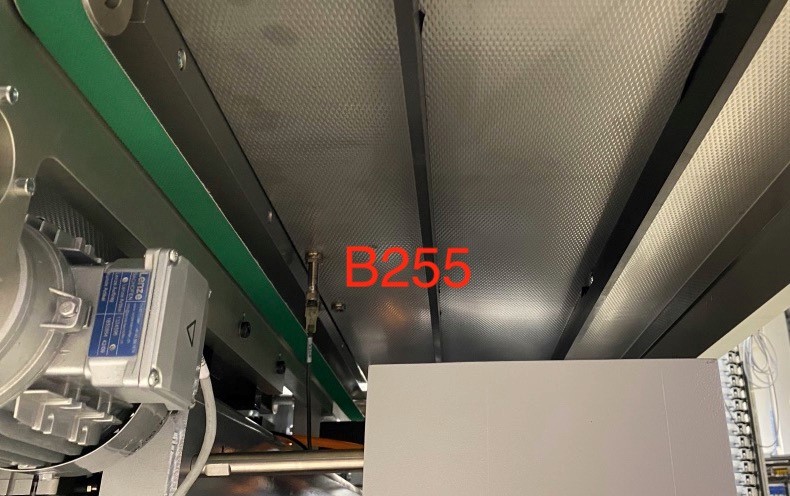

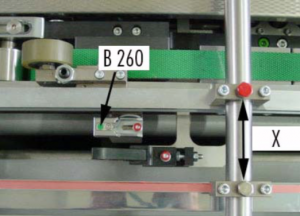

Sensor B255: This sensor sends a signal to the control that the upper magnetic belt is ready for new stripes. The sensor might be defect or wrong adjusted.

Sensors B237 and B238: Sensor B237 does slow down the sheets and B238 stops the sheets for the centering. If the sheets do not stop, they may run through the first operation without being centered and with incorrect timing. The sensors might be defect or wrong adjusted.



Problem:

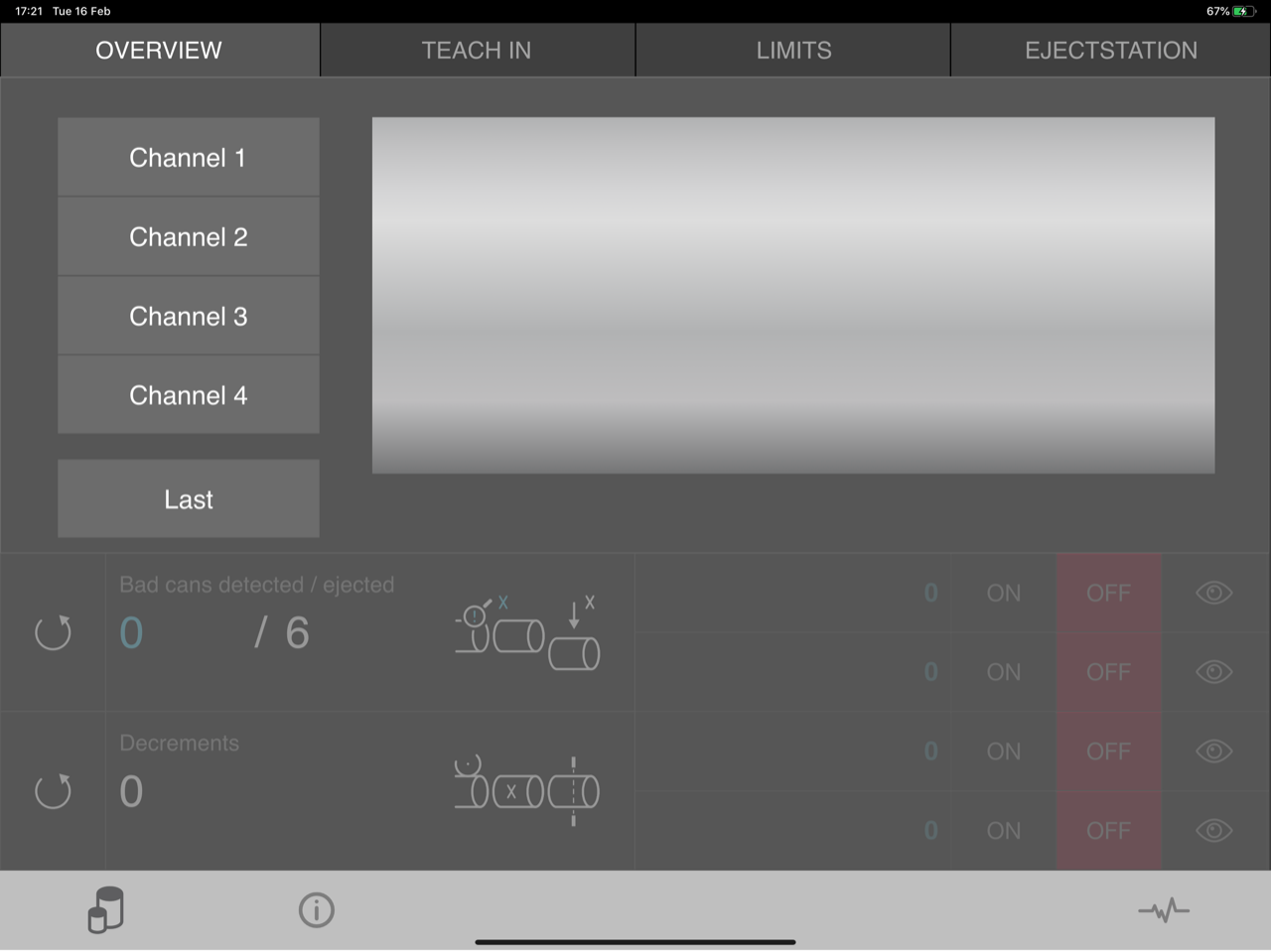

Graph remains grey and shows no curves at all.

Possible Causes & Resolutions:

Avoid very fast switching between pages. This causes overloading of the browser.

Close alle open browser connection (HMI app) and wait for >2 min.
Now you should be able to open the HMI without error message.



Close HMI app on iPads with home button:

  1. Double-click the Home button to show your most recently used apps.
  2. Swipe right or left to find the app that you want to close.
  3. Swipe up on the app’s preview to close the app.



Close HMI app on newer iPads without home button:

  1. From the Home Screen, swipe up from the bottom of the screen and pause in the middle of the screen.
  2. Swipe right or left to find the app that you want to close.
  3. Swipe up on the app’s preview to close the app.



Problem:

Everything looks fine but the drives do not start if the green button “Production On” is pressed.

Possible Causes & Resolutions:

The main power supply 72 VDC of the Linmot controller is missing:

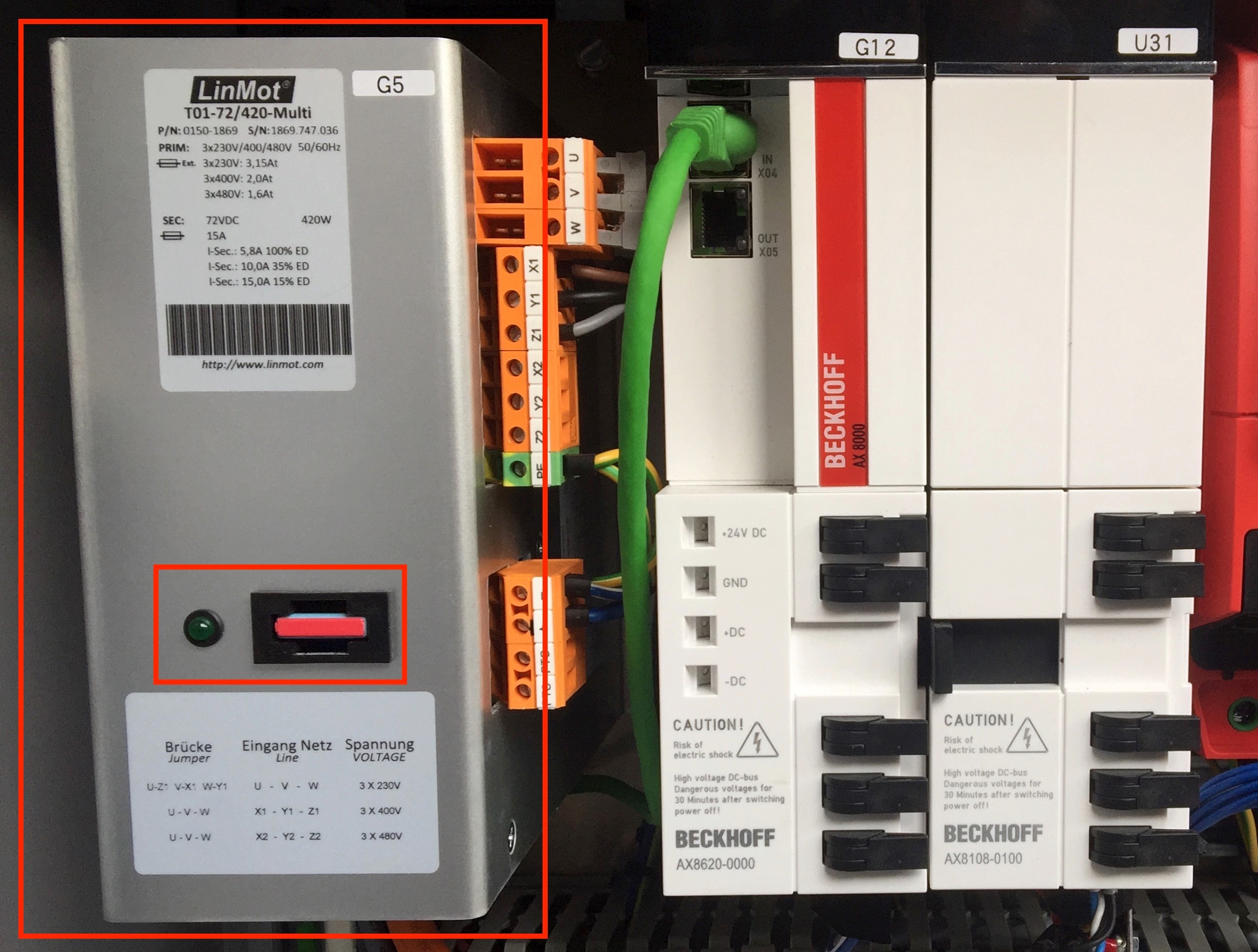

Check the power supply G5 inside the control panel on the second table (see attached picture). Most probably the 15 Amp. fuse is melted. Replace the broken fuse with a new one.

Problem:

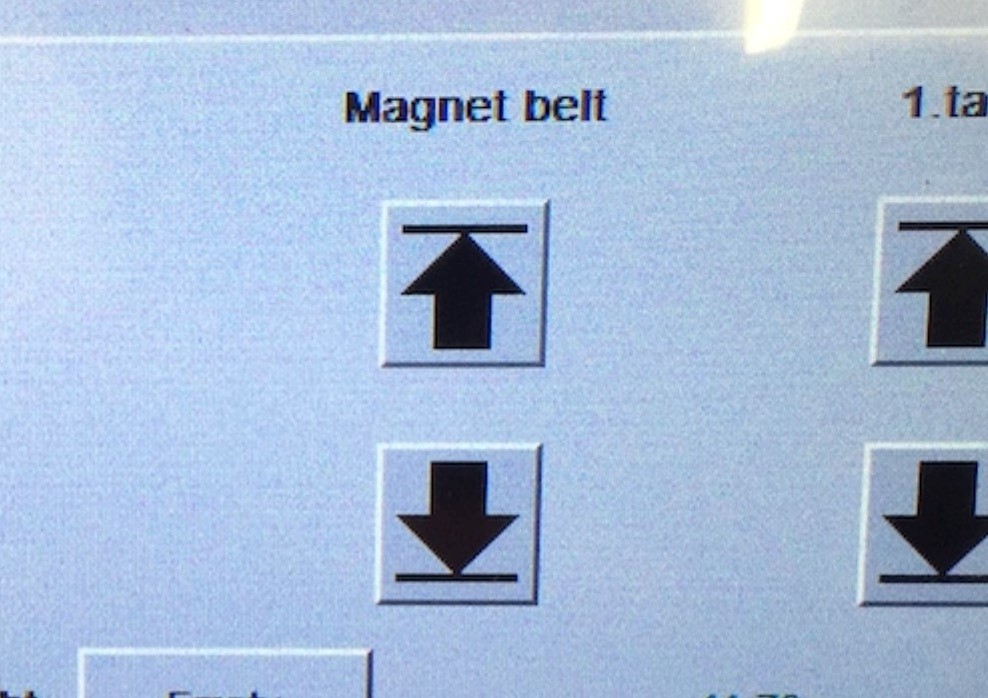

Error message „Magnet belt not down” displayed on HMI (magnet belt does only exist on the 2. table on a duplex slitter), and arrow buttons „Up” and „Down” for magnet belt are not visible anymore.

Possible Causes & Resolutions:

Arrow buttons magnet belt up may be visible for a short time and pushed during start up of panel.
Delete of error message:

  1. Login with canman user => Contact CANMAN for password
  2. Go to Setup
  3. Change the function Single slitter to OFF (See attached picture)
  4. Go back to main screen. Now the up and down button for magnet belt will be visible.
  5. Push and hold the arrow button down for magnet belt until the error message “Magnet belt not down“ disappears.
  6. Go back to the canman settings and set the function “Single slitter” back to ON.



Possible reason:

  • Check the blank cutting tolerances (can be supplied by Can Man): If the cutting tolerances are to big, the blanks will create all kind of downstacking errors.
  • Check the burrs on the blank: If the burrs are to big, the blanks will create all kind of downstacking errors.
  • Check the setting of the separating air: If the separating air is to low, the blanks can not being pulled down correctly. Try with more or less separating air.

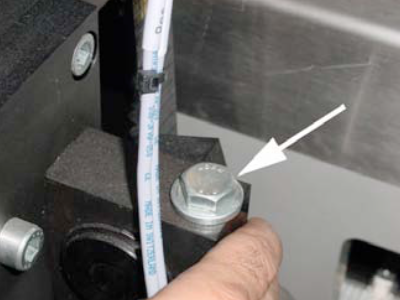

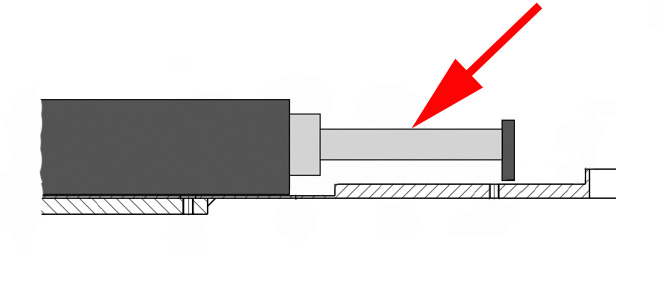

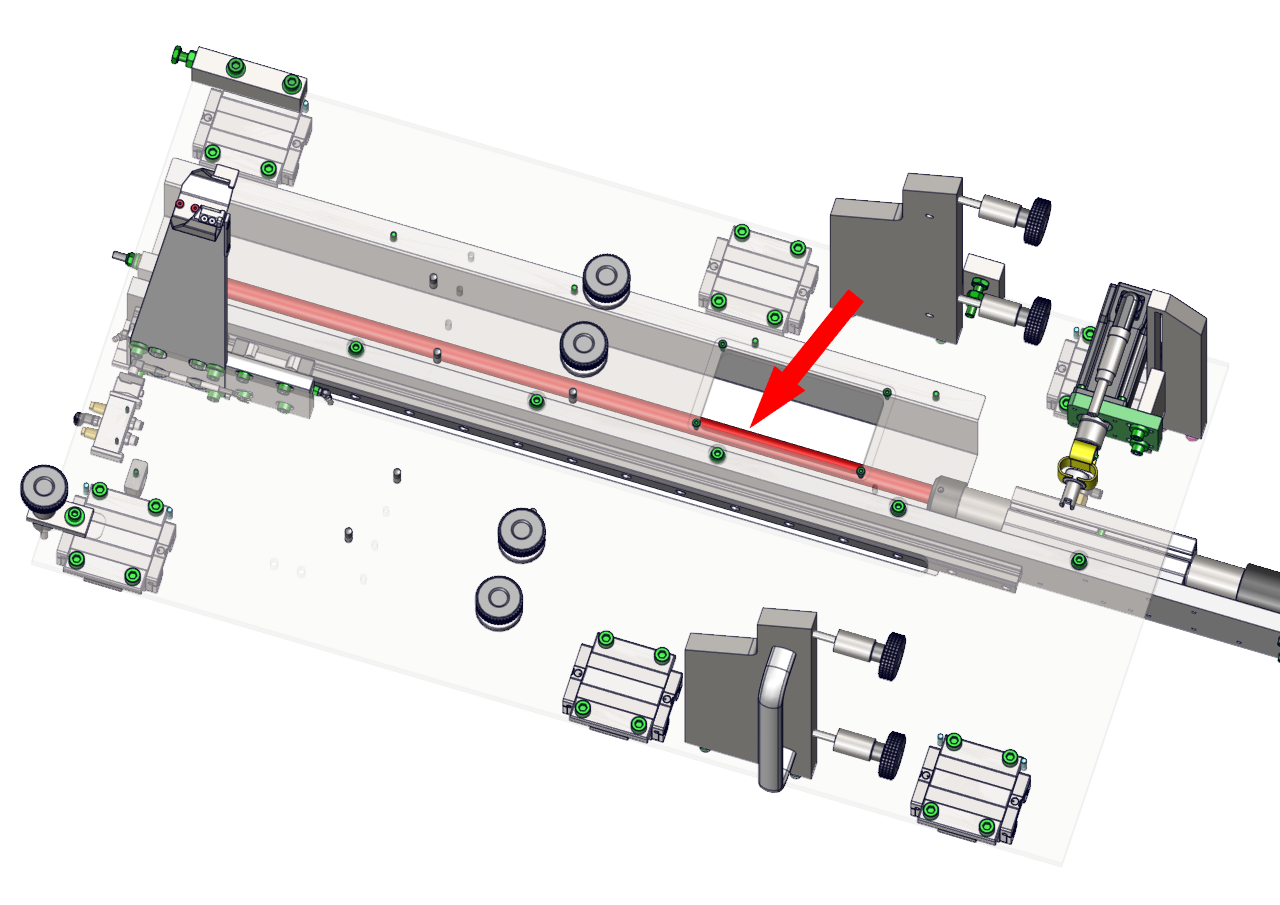

  • Clean the slider of the Linmot pusher according the manual.

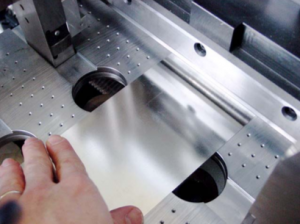

  • Magnets in the base plate might brake the blanks to much: Can Man does equip each base plate with 4 or max 6 magnets, depending on the the blank size. Remove eventually 2 magnets.

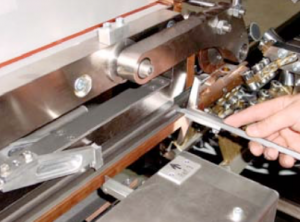

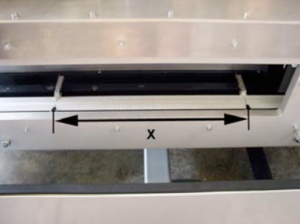

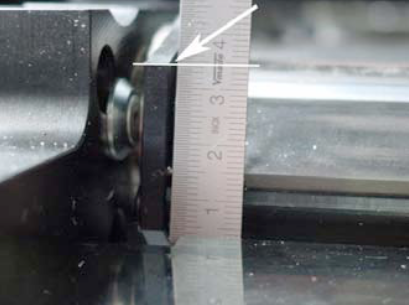

  • Check the clearance of the first rollformer roller pair: The clearance between the lower and upper roller might be too small. Adjust the value according manual.
  • Check the “Quick Change Level 40mm” setting acc. below pictures on the HMI: If the distance between the blank stack and the base plate measures 30 mm, set the function “Quick Change Level 40mm”  to OFF. If you measure 40mm, set it to ON.



  • Check the vacuum-stop point: The process to stop the vacuum must be activated by the mechanism around 3 mm before the blank arrives at the base plate. Please check the manual how to set.
  • Check if the supporting air-pressure to stop the vacuum is adjusted correctly: Check the value / setting according the manual.

Problem:

Canbody transport motor doesn’t move correctly to the reference position, or stops, or changes the direction of rotation, or the display of the servo controller U7 shows „IMax“ or „P03 trip“.

Possible Causes & Resolutions:

To check:

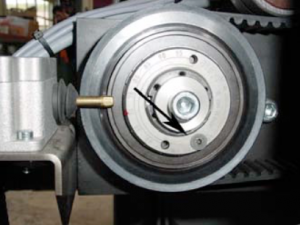

  • Mechanical condition of canbody transport motor: Turn it by hand and check that everything runs smoothly.
  • Resolver mounting: Is firmly connected to the motor shaft?
  • Resolver bearings: Remove the resolver from the motor shaft and check if it is turning smoothly.
  • Resolver and motor connections: Motor and resolver are connected correctly and clamps/plugs tightened?
  • Motor windings: Disconnect the motor from the inverter and check the windings with an ohm meter (U-V,U-W,V-W). All values are equal?
  • Output servo controller: Measure the inverter output voltage when it should run (U-V,U-W,V-W). If 0V and display shows „IMax“ maybe servo controller defective.



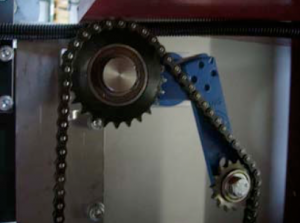

  • Machines with lift table and non-stop: Check whether the white gear wheel on the encoder shaft of the downstacker motor is fixed on the shaft by the M3 grub screw. Make sure that the grub screw is aligned to the flat surface on the shaft.

Problem:

  • Welding process starts but no welding current.

Possible Causes & Resolutions:

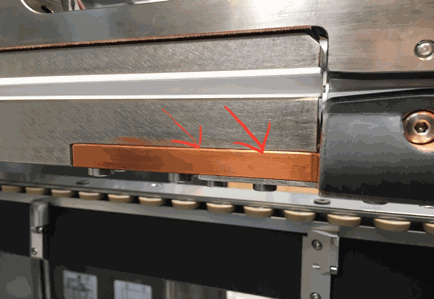

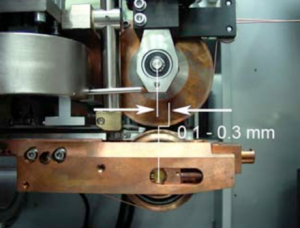

  • Condition of lower welding roll: Possibly the roll is worn out or mercury very old. Refill mercury or exchange lower welding roll.
  • Condition of upper roller head: Possibly the roller head is worn out or mercury very old. Refill mercury or exchange upper roller head.
  • Waterflow: The green button for welding current on/off must light up when the water flow is ok. If not maybe the water flow is to low. Check also the relay K21. If water flow is ok this relay has to be on.
  • Welding pressure switch S31: If welding rolls are closed the switch S31 do enable the welding current. If the welding pressure is adjusted to low or also to high the control do not enable the current. Do adjust the welding pressure correctly according manual.
  • All connections of current conductors on secondary side of welding transformer: All screws must be tightened. If there are signs of corrosion, disassemble parts and clean the contact surfaces.
  • Connection between head piece and lower welding arm: Remove the head piece and check the contact surfaces.



  • Fine-wire fuses F2, F3 and F4: This are located inside control. Check them with ohm meter and replace if necessary.
  • Transformer T4 (18-0-18V): Measure the outputs of small transformer inside control. The easiest way to do this is to measure it at the terminals of the WEC card. c32/c30 => 18VAC, c32/c28 => 18VAC, c28/c30 => 36VAC
  • WEC electronic card: Firmly inserted in the card holder?
  • Thyristor: Maybe thyristor module is broken.

Problem:

  • HMI communication error (see picture)
  • Not able to run the welder




Possible Causes & Resolution:

  • Turn the machine off and back on and see if the error message comes up again.

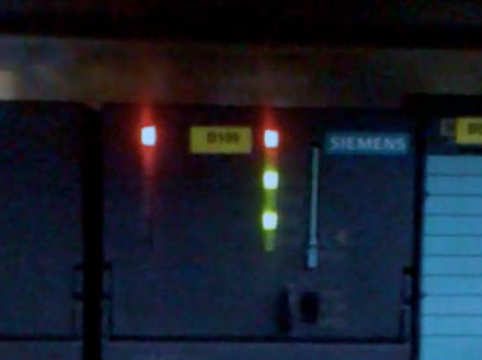

  • Check for the LED “on” at the PLC.
  • The machine isn’t showing any reaction (for example wire manual)
  • Please check the MPI-bus connection between the touch panel and the PLC.
  • Also check if all the PLC modules are properly mounted to the c-rail.
  • The machine was switched off for a longer period.
  • The PLC has an internal battery. To be sure that it can be sufficient charged, leave the machine power on for >24 hours.

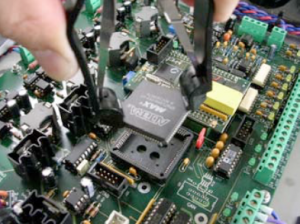

  • Change the battery of the Pacemaker, see FAQ PM send error / PM receive error or welding parameter don’t match after starting the machine.

Problem:

  • Speed of the drives changes during production



Possible causes & resolutions:

  • Wrong position of the switch for the terminating resistor on the bus plug.
    Check all switches on the complete bus system. Follow the cable thoroughly from first DP bus device (PLC) to last DP bus device. The terminating resistor switch of first and last must be set to „ON”, all other to „OFF“.
  • Bus connector/plug defect
  • Check wiring of all profibus cables, especially the connection of the cable shield inside the plug.
  • Problem of terminating resistor supply by last device on bus. Try to change the profibus wiring to use on another device as last client.



The HMI of Can Man machines is optimized for an iPad, but as an alternative, a computer, laptop or another tablet with a browser can be used as well.
How to:
  1. Connect your device to the WLAN „CM_SMARTControl“. If you don’t have a Wi-Fi connection on your machine, connect a LAN cable to the router.
    Note: The Wi-Fi is password protected! Contact Can Man by opening a new ticket or ask your superior.
  2. Open the browser. Supported browser are Safari, Chrome or Firefox.
  3. Enter the correct IP address:
    Welder ➔ http://192.168.10.10
    Welding monitor ➔ http://192.168.10.11
    Slitter ➔ http://192.168.10.13
    Feeder ➔ http://192.168.10.15

Note: If you use a new iPad the icons for the machine type can be produced, when you tap on “Add to home screen“ button.
page54image3824832

Problem:
Display shows „Could not activate iPad“

Possible causes & resolutions:

  • No internet connection > Check network connection of machine.
  • Firewall blocks connection to iPad > Try to connect the iPad to other Wifi without firewall, for example hot spot of mobile phone.
  • Try to make a reset by holding down the home and power button simultaneously for a few seconds until the Apple logo appears. Don’t worry, the iPad doesn’t have any data inside, it only displays the values from the browser. Can Man does not use an Apple ID to activate the iPad’s, so the iPad is resettable.
  • iPad might be defective > We will offer new one or you organize it locally.

For connecting an alternative display / PC, please have a look at the separate FAQ.

Please consider the following suppliers for various raw materials:

Raw Material Suppliers

Copper Wire Suppliers

Please follow the below instructions carefully:

  1. Cooling unit for cold water (for both welding rollers):
  • The cooling emulsion must be changed yearly, but more preferably every 6 months. Follow the X7 manual if you have to change the emulsion !
  • The filter cartridge of 50 µm needs to be replaced monthly ! Follow the X7 manual if you have to the filter cartridge !
  • Check the level of the cooling emulsion on the internal tank. If you have to refill the tank, follow the X7 manual to get the correct mixing ratio for the emulsion, and fill the tank. Note: If the water level is too low, the chiller should show an error message, and the X7 should stop and show an error on the iPad !



  1. Cooling water / emulsion distribution station on X7:

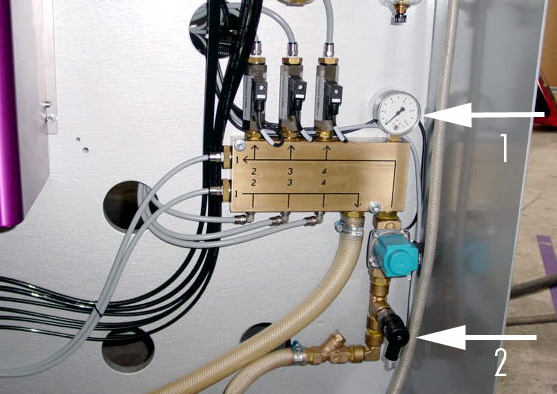

  • Run some (5 to 10) can bodies and control the water pressure on the manometer: 5.0 bar is the min. required water pressure !
  • Run some (5 to 10) can bodies and control the water flow on the flowmeter S26 (2. From right side): 5.0 liter per minute is the min. water flow.
  • Note: The water pressure switch S120 is set to > 4.0 bar. If there is the error message “Error S120” on the iPad , first check the water pressure on the manometer, and if it’s below 4.0 bar check the cooling unit again !



  1. Weld roll ø 42 / 49 / 54 / 62 / 90 mm and lower weld arm:
  • It’s possible that the cooling circuit from waterflow meter S26 to lower weld roll, and back to the outlet on the water distribution, is blocked:

Take off the lower weld roll, unplug the grey water tube ø 10 mm labeled with “àWR” directly at the flow switch S26, and blow into the tube with air pressure. Check the out-going air-pressure at the free hole in the lower weld arm (supply for lower weld roll). If the circuit is free, you feel an equal air pressure (like on the output of the air gun) on your finger tip. If you recently took off the lower weld arm, there might be a problem with one or both o-ring seals between arm and upper bus bar:



Please check them if needed !

  • Now unplug the grey tube ø 10 labeled with “WR à” on the water distribution and blow into the tube with air pressure. Check the out-going air-pressure at the free hole in the lower weld arm (exit of lower weld roll). If the circuit is free, you feel an equal air pressure on your finger tip
  • If you re-install the lower weld roll again, make sure that the arrow “running / turning direction” is showing into the right direction.

Before re-connecting both grey tubes ø 10 mm, blow into one tube again by air-pressure, and feel the equal air-pressure on the other tube by your finger tip. If it’s ok, correctly connect both tubes again.



  1. Copper wire / copper wire profiling unit:
  • Measure the copper wire profile after the profiling unit on various positions (within around 300 mm). Check the correct width in the X7 manual. The tolerance must be within 0.03 mm !
  • Please check if the wire guiding wheel in front of the lower weld roll is broken. If it’s broken, replace it by a new one. Make sure you choose the correct size 1.90 or 2.30 mm !
  • Please check if the copper wire tension is correct. Set the correct tension according X7 manual !



  1. Welding parameters:
  • Please check the weld pressure. Set the correct welding pressure according X7 manual. The range should be between 40 and 50 daN.
  • Please check the welding frequency. Set the correct value according the recommendation in the iPad !
  • Please check the welding overlap. The welded overlap should be nosepiece overlap + 0.1 mm !
  • Check if the IR-Sensor graph of the Qualimaker 2™ on the iPad are within the correct range and straight, which means that the crown and exit conveyor settings are correct:

  1. Other possible errors:
  • If the copper wire gets burned, check if the upper and lower weld roll are touching each other without a blank between. Press the button on the main-aluminium plate to close the welding roller and test it.
Problem:

Error message: Setup data corrupt / User data corrupt



Resolution:

  1. Connect the monitor and mouse to the DVI and USB port on the IPC. Then switch off the system and wait until IPC has completely shut down and switched off.
  2. Plug the Beckhoff IPC Service Tool Stick into a free USB port.
  3. Switch on the main switch of the system again. The IPC starts now and boots from the USB stick.
  4. The menu for creating the backup appears. Now insert the backup hard disk on a free USB port.
  5. Press the “Backup” button.
  6. Select Acronis Backup and press “Next”
  7. Select volume to be saved. Select all drives of the IPC. It can be drive C: and E: or C: and D:
  8. Leave a password window blank and set “Compression” to “High”
  9. Now the path for the backup can be selected. Select hard disk for backup and create a new folder with right-click.
  10. In this example “CM 33 No. 019 Savola”. Then select this folder as the path.
  11. Add file name with machine type and serial number. Customer does not need to be supplemented because this is already in the folder. At the bottom you can see if the backup volume has the required storage space.
  12. Now all information appears summarized again. Check everyhing and then start backup.
  13. Backup will be created now. This can take a few minutes. Wait until this is complete.
  14. If the backup is finished, close the window with “close”. Now the backup menu appears again. To check whether the file has been created, the key “Manage Images” can be pressed. If you choose the path on the hard disk for backup, there should have been created a folder “Catalog” and a file as shown in the image below.
  15. This completes the backup. In the main menu, the “Shutdown” button can now be pressed and the IPC shuts down. If it is completely switched off, the IPC Service Tool Stick and the hard disk can be removed again. Switch on the main switch of the system and the IPC returns to normal.

NOTE: When setting up a new IPC using the backup file, note that the licenses on the new device are lost and must be restored!

How To:

  1. Switch off cooling unit.
  2. Switch off main power. Wait 10 min until the capacitors inside PM HF are discharged before removing cover.
  3. Before you remove any cable, take some picture and note how they are connected.
  4. Disconnect the cables and water tubes on the c-bank.
  5. Disconnect the Powercable and the water tubes on PM HF unit.
  6. Disconnect the signal cable (Plug Sub D 25 Pin) and the panel cable (Plug Sub D 9 Pin).
  7. Disconnect the two valve cables inside PM HF.
  8. Remove the PM HF and replace with new or spare unit.
  9. Reconnect all cables.
  10. ATTENTION: Check the coil before connecting it!
  11. Double check all connection before switching on the main power.
  12. Compare the settings/parameter and change it if necessary. For instructions which parameters has to set and how to do please contact Can Man
  13. Re-start the PowerCURE™

Problem:

  • Welding process does not start or starts too early before the welding rollers are closed and burns a hole in the can.

Possible Cause:

  • Wrong signal of welding pressure switch. The start of welding current and transport is activated by a digital pressure switch S31 installed on the air regulator for welding pressure. If the welding rolls close and the digital pressure switch reach the programmed value the welding does start.

Check:

  • Is the setting of welding pressure correct?
  • Does the welding pressure cylinder work fine? Does it open and close smoothly?
  • Does the welding pressure switch work properly? The switch must switch on when the welding pressure is between 1.5 and 3.0 bar.



Bildschirmfoto 2019-10-21 um 08.19.32.jpg

Question

How are the blank cutting tolerances?

Resolution

Please check the PDF Blank Calculations and Tolerances

Important things to know:

  • One canbody cycle = 0 – 360 °
  • “Mclk Sync Deg” stands for Machine clock synchronization (in °). You can shift the clock/cycle signal (0-360 °) in order to get a proper synchronization of the graph to the measured canbody.
    • A smaller value will shift the graph to the left,
    • a bigger value to the right.



1. Problem:

The graph is not showing any values / no picture at all.



Possible Causes & Resolutions:

  • The first parameter “Mclk Sync Degree” has a “dead area”, where the tool sensor detected the gap between the two cans, rather than the cans. As a result, there might be no graph showing. No graph showing means the system is not detecting that a can was welded.
    ➔ If no graph is shown, try to enter values in large steps. You should now see a graph but might have to adjust the measured area. Please see second problem for the resolution.



2. Problem:

The graph of the G-Sensor does not show a steady graph but shows greater fluctuations (= can gap).



Possible Causes & Resolutions:

  • The G-Sensor is not correctly installed and measures outside the canbody cycle.
    ➔ In order to remove the greater fluctuations out of the graph-frame, increase the “Mclk Sync Degree” value to shift the graph to the right, and decrease the value to shift the graph to the left.
    Example: Your graph looks like the left picture below. You will have to decrease your value by about 40° in order to receive a graph like on the right.E.g. you have a value of 180° and have to decrease by 40° = enter 140° OR you have a value of 20° and have to decrease by 40° = enter 340° (canbody cycle goes from 0-360°)





Problem:

iPad does not connect to the machine. Screen remains gray and shows no values.

Possible Causes & Resolutions:

  • Connection via Wi-Fi
    • In the settings, check whether the iPad has connected to the correct Can Man Wi-Fi
    • If no Can Man Wi-Fi is visible, check router/wireless access point.
      ➔ Restart router/wireless access point. If still no Can Man Wi-Fi is visible, the router/wireless access point has lost the settings or is broken. Contact Can Man via by opening a new ticket.
  • Connection via Cable
    • Check all plug connections of the network cable between IPC and iPad
    • Check iPad adapter power supply. The adapter must always be powered, otherwise the connection will not work.

Battery of IPC is empty when:

  • System Date and Time (Error Log) not correctly displayed and getting lost when powering off the IPC.



To Do:

Reason for error message:

  • The Pacemaker™ HF has detected a missing phase.



Possible causes:

  • Supply voltage mains (all three phases) 400V

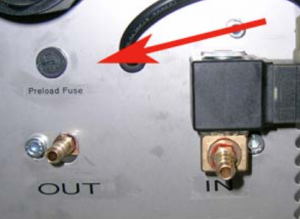

  • Check the small fuses on the bottom of Pacemaker HF
  • Check complete wiring, Are all clamps tightened?
  • Measuring voltage at the input terminals on the main board (see attached picture)
  • IC “OC14” or phase measurement is defective. Replace the IC, Type HCPL3700

For a Pacemaker-repair we calculate / estimate a “cycle-time” of 2 weeks, including final testing and packing. If a faster service is required, extra charges occur. In case the number of incoming repair jobs is unusual high, it might take more than 2 weeks.

Download regrooving datasheet



Download PDF here

Note the adjustment of the clearance of the roller after the BIG8 monobloc cutting heads is ELEMENTARY to prevent bow cuts!

Check if the roller is not “tilted” (and thus one-sided “in the air”), refer also to manual of your slitter how to adjust the roller.



Possible causes:

  • blank cutting (especially development) not within tolerance
  • inconstant overlap – Z-bar worn (—> for “overlap variation“ see also here )
  • wire tension not correct
  • calibration crown inconstant (for example due to worn bearing)
  • wrong adjustment of „overtravel“ of final pusher system (see instruction manual of your welder)
  • „backlash“ in final pusher system due to worn bearing or linear guides
  • copper wire profile not correct



ATTENTION:
If you have a ceramic Z-bar e.g. X7 welder, please not that the ceramic Z-bar is very fragile.
In case you have to exchange or to replace the Z-bar, never use a hammer or apply excessive force!



Click here for the status LED’s of the Beckhoff PC and how to access the PC in case of a trouble shooting.



  • If the Led are not switching off after machine power off (wait at least 5min. !), remove the X101 plug on the IPC and plug it back after some seconds.



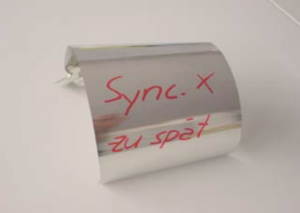

Possible causes:

  1. The serial reduce (Powerfoil) is active
  2. Timing from the welding pressure to vacuum “ON” is too short
  3. Wrong setting of t1 & t2
  4. Mechanical setting might need to be adjusted
    (only for unwelded sections at the beginning)

What does this error message mean?
CCD = concurrent connected data variables.

The amount of active CCD is limited. Opening the HMI is using some of the available CCD.
Closing the HMI is releasing the CCD again.
When you repeatedly open and close the browser, the CCD can still be in use and getting into the limitation.
(There is a delay for releasing the CCD when closing the connection).
„If a client wants to subscribe to new data variables while no more CCDs are available, a message “CCD exceeded!” will appear and there will be no communication with these data variables.“
„If a client disconnects from the visu (e.g. browser gets closed), it will take some time until the browser session expires and the CCDs from this client become available once again (session timeout of the scada server: 2 min.).

How to solve a CCD exceeded?

Close alle open browser connection (HMI app) and wait for >2 min.
Now you should be able to open the HMI without error message.

Closing apps on iPads with a home button:

  1. Double-click the Home button to show your most recently used apps.
  2. Swipe right or left to find the app that you want to close.
  3. Swipe up on the app’s preview to close the app.

Closing apps on newer iPads without a home button:

  1. From the Home Screen, swipe up from the bottom of the screen and pause in the middle of the screen.
  2. Swipe right or left to find the app that you want to close.
  3. Swipe up on the app’s preview to close the app.



How to prevent a CCD exceeded?
Don’t open the HMI in several browser simultaneously.
Don’t repeatedly open and close the HMI in short time.
Don’t repeatedly press reload the HMI in short time.



Possible cause:

Diodes between IGBT’s are damaged

Measure /  exchange diodes:

Problem:
The decrement counter shows the number of cans between the welding station and first light barrier of the eject station. If the value is wrong, the ejection of cans is out of sync with the faulty products.

Resolution:

  • The reason for a wrong decrement counter can be a reset during production.
    Attention(!): Reset the decrement counter only if the production is stopped and no cans are between the welding station and eject station, NEVER during production! This is important to avoid that bad cans go to the downline.





Problem:
The decrement counter is not stable, which leads to continuously smaller values during full production.

Possible Causes & Resolutions:

  • Tooling sensor signal is not stable. The tooling sensor might not detect all cans properly due to the distance between the cans and sensor.
    ➔ Please check the distance of the sensor to the can, it should be as close as possible without it touching the can.
  • Cycle signal of machine is not stable.
    ➔ Check the cycle signal: If the machine signal comes from a sensor, check sensor settings or replace sensor.

Possible cause/checklist:

  1. Slitter:
    • Angular errors below 0.05 mm per 100 mm
    • Burrs below 20% of tin plate thickness !
  2. Air pressure:
    • Welding pressure 2.6 (aerosol) to max. 2.8 bar (beverage, food), equal to 45 – 48 daN.
    • Wire tension cylinder profiling unit 1.6 bar
    • Wire chopper 2.4 bar

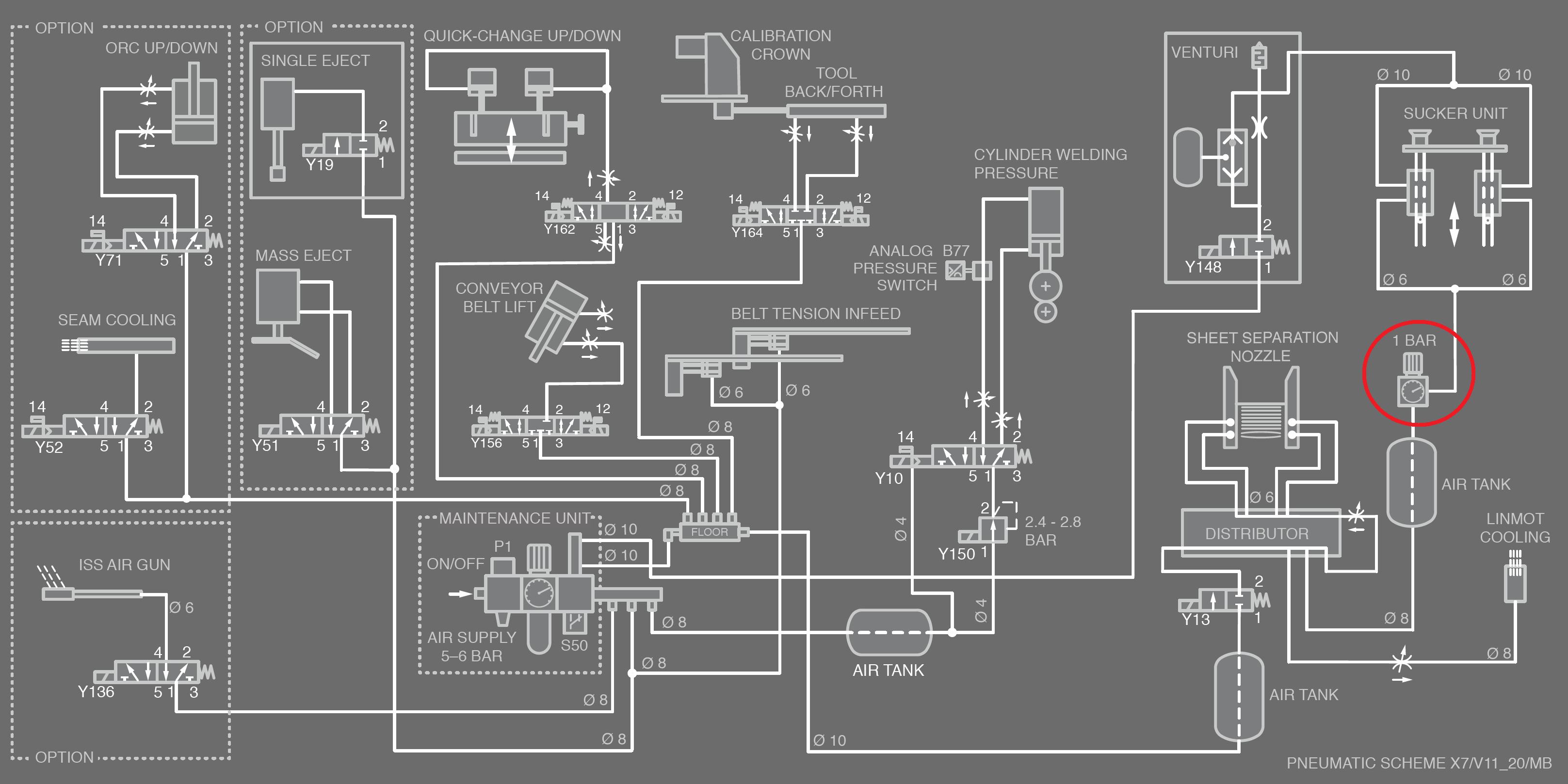

    • To move tooling (which air regulator find on touch screen: “Air”, page 5/8) pressure should be 3.0 bar.
    • To lift up guidance channel (page 5/8) pressure should be 1.0 bar.
  3. Lower welding arm/Z-bar:
    • Take off the upper and lower screw off one by one, check the insulation washers, if they are squeezed too much, change each them!
    • Check the insulation of the complete Z-bar:  > 10 MegaOhm
    • Measure the deflection of the X-Plane at a welding pressure of 45 daN (2.6 bar): Between 0.1 – 0.15 mm
  4. Check all the Z-bar grooves:
    • Especially the last 100 mm, incl. front Z-bar tip (called nosepiece), maybe they are worn out.
    • Sometimes some tin deposits can slow down or disturb the movement of the tin plates -> can gap unsconstant, cold begin/end.
  5. Welding roller grooves:
    • They have to be clean and the ground of each groove must be straight!
    • If you are not sure, re-groove them
  6. Copper wire width:
    • Check this according manual. Guideline: Width of copper wire always between 0.03 – 0.07 mm below profile width of welding rollers
  7. Reset the whole tooling according manual (if not yet available in your manual, ask Can Man)
    • Reset the calibration crown /tooling: Check the play of the top diabolo roller bearings.
  8. Lower welding roller height:
    • Set it around 0.3 mm over the Z-bar center. How to do:
      • Weld cans, and check the roundness:
      • Apple shape: Tooling too high, or welding roller too low or check this FAQ here
      • Roof shape: Tooling too low, or welding roller too high
      • The height of the tooling should be between – 0.2 and + 0.2 mm, shown on the handle/shaft underneath the tooling. If needed, move the height of welding roller again, till the roundness of the can is sufficient.
  9. Reset the upper pendulum rollerhead:
    • Angle: Normally not necessary, as long as nobody touched/dis-adjusted red marked screws on the support).

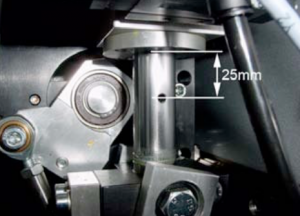

    • Horizontal axle: Make sure that the height of the pendulum axle is parallel to the welding roller axle. Use for this setting a precise level, and level the shaft of the pendulum rollerhead according the level of the welder, or do it according the manual, using the delivered gauge set.
  10. Position of exit conveyor:
    • Use the delivered stainless steel gauge, put it into the tooling, and let both belts (of the OHC) touch that gauge slightly.
    • Make sure the OHC is parallel to its basic plate on the lift
  11. Position of diabolo center between 1–3 mm before lower weld roll center.
    • Conical overlap:
      • Too much overlap in the beginning: Move tooling foward, 0.5 mm/move
      • Too much overlap in the end: Move the tooling backwards, 0.5 mm/move
  12. Can gap tolerance shall be within 0.5 mm:
    • Can gap on aerosol: 2.0 – 3.0 mm
    • Can gap on beverage/food: 1.5 . 2.5 mm
    • Belt for pendulum rollerhead should be tensioned tight.
    • Belt for profiling unit must be tight, before and after the profiling unit
    • The clearance between wire chopper transport rings must be 50 – 60% of the profiled copper wire thickness
      Example: Copper wire thickness 0.60 mm, clearance adjustment 0.30 mm
  13. Overlap:
    • 0.5 – 0.60, not less, not more
    • Check the overlap only by an internal diameter gauge, with a dial indicator to read result. Diameter tolerance should not be higher 0.1 mm.
  14. Check the tin flow after the upper, and after the lower welding roller on the copper wire.
    • Do not accept anything but the center
  15. Check the overtravel of the can body:
    • Move the pusher finger to the very front, and measure the distance from the pusher plate, until the center of the lower welding roller.
    • Now deduct this measure from your cutted tin plate height and you know how many mm the tin plate gets pushed over the center of the lower welding roller.
      Attention: If you have spatters on the beginning of the can, which show backwards, move the transport carriage backwards. Do that over the can height setting on the touch screen.
  16. Rollforming:
    • The rollformed body must be round, and both edges shall be parallel to each other
    • Rollforming overlap: E.g. ø 65, min. 5 mm, max. 8 mm
  17. Check following after all these settings:
    • Weld 10 cans and do not cut the copper wire:
      • Check the wire gaps (gap between tin flows) on the copper wire. Tolerance should be < 0.5 mm
      • Measure each wire elongation, and compare them. Tolerance should be < 0.5 mm
  • Check condition of synthetic roller. Ensure that application surface is smooth and does not show any defects > replace if required.
  • Measure velocity of overhead conveyor at welder exit for reference purposes. Set speed of outside lacquering unit equal to conveyor or alternatively, set it slightly higher (2–3% above effective conveyor speed)
    > verify speed setting by measuring exact velocity, picking up speed of application surface at synthetic roller.
  • Apply slightly more lacquer on outer side seam. Please follow therefor point 7.2 (Adjustment of the lacquer quantity) in the provided instruction manual for the ORC.
  • As a last precaution, check the viscosity of your lacquer by using the DIN 4 cup supplied. Recommended viscosity: 20–25 seconds. Depending on type of lacquer used, add corresponding thinner / water in order to achieve required viscosity.

Because of the 87 Hz technology. Read more about it here.

IMPORTANT: The inverter parameter setting must be exactly same like before (original setting). Otherwise motor will burn!

Reference for thickness of the welding seam is related to thickness of material (this value is variable, depending on the overlap of the welding seam, material as hardness and tin coating, welding pressure, welding current and welding frequency).

T = S x 1.75
T = thickness of the welding seam
S = thickness of tin plate

Example:

T = 0.15 x1.75 = 0.2625 mm


Necking tool tolerance

D = S+W+L+P+E (mm)
D = difference between inside/outside diameter of necking tool
S = thickness of tin plate
W = thickness of welding seam measured by micrometer (we should measure beginning, middle and end of the welding seam)
L = thickness of outside lacquer stripe 0,02 mm
P = thickness of inside powder stripe 0,07 mm
E = extra space (0.05 mm)

Example:

D = 0.15 + 0.26 + 0,02 + 0,07 + 0.05 = 0.55 mm
S = 0.15 mm / W = 0.26 mm / L = 0,02 mm / P = 0,07 mm / E = 0.05 mm



Check these two PDF documents:

Use this Excel-Form for your calculation.

  • H – grain means rolling direction parallel to the welded seam
  • C – grain means rolling direction crosswise to the welded seam

  • Empty the water tank. On 2-circuit cooling unit only cold water tank has to be emptied.
  • Blow off one by one each cooling circuit in the welder. This allows to empty each circuit separately. If your welder has a 2-circuit cooling system only the circuit for the lower and upper weld roll has to be emptied.
  • Change the filter cartridge and clean the filter housing inside.
  • Fill the tank with water only, open main valve Y14, and run the system for at least one hour to flush rests of old emulsion out.
  • Empty the water tank again and clean again if necessary.
  • Fill the water tank with water (or distilled water if requested), and mix the PowerRoll™ coolant H1 in with 8 percent.



We recommend following maintenance procedures:

  • Change the filter cartridge monthly.
  • Change the cooling emulsion yearly. Use the PowerRoll™ cooling system cleaner at any time you change the emulsion.
  • Use the PowerRoll™ cooling system decalcer after around 5 years.



Order numbers:

  • PowerRoll™ coolant H1 (food grade), 7 Liter, 011494
  • PowerRoll™ cooling system cleaner H1 (food grade), 10 Liter, 011495
  • PowerRoll™ cooling system decalcer, 25 kg, 011496
  • Filter cartridge 50 µm, 002446



Safety data sheets see below:

PowerROLL coolant

PowerROLL Coolant System Cleaner H1

PowerROLL Coolant System Decalcer

Possible cause:

  • insufficient cooling
    • clean cooling circuit
    • change cooling additive / lubricant in the chiller
    • clean or change main- and micro-filter in cooling system (see pictures below)

  • Check insulation
    • feel hot spots in the entire secondary circuit by hand or use IR camera if available.
  • Check Z-guide for broken parts (nosepiece or main Z – bar or, depending on welder type, intermediate Z-bar)



Possible cause:

  • LED on the converter does not light up!
    • Lenze frequency converter defect
  • If LED is red, check error code with the keypad.


NOTE:
 In case you have to replace the converter, make sure you load the default parameter setting. All the latest models, do have the parameter setting in the electrical scheme – if you do not have the parameter, contact Can Man by filling out a ticket in the support section on our website.

Possible cause:

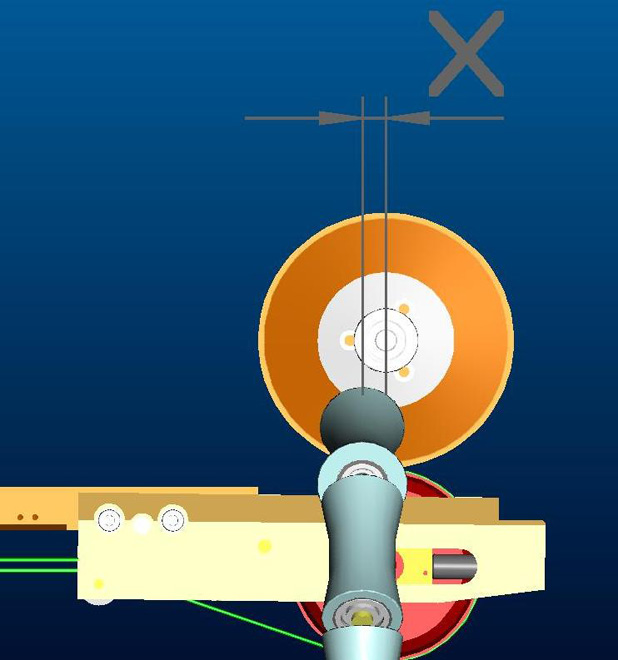

The upper pendulum roller might be not leveled properly. When regrooving the upper disc for example 0.50 mm in diameter, the height of the pendulum rollerhead must be reduced 0.25 mm. This can be done by the M10 screw on the back side.

See also in the manual X1 how to reset the upper pendulum rollerhead.

NOTE: The description manual is based on a CM X1 welder, but it works very similar for our other welders.

ATTENTION: Do not touch the red marked screws!

Your cooling system has to be checked and / or one or more circuits need to be cleaned.

Explanation:
If the temperature difference exceeds a certain value, mechanical mis-alignments may occur which can affect the welding geometry. Obviously it is not the same when a welder is cold (start of production) and hot (after up to1h of production).

NOTE: With Can Man TempGUARD™ system, this can not happen anymore.

  1. Measure the overlap by reducing the welding current until the sheet edges can be broken apart to check, where the overlap is incorrect. NOTE: Machines with a PACEMAKER™ do have a „overlap check“ in the menu!
  2. Check the blank cutting.
  3. Check the condition to the nose piece (even maybe the Z-bar).
  4. Check the „clearance“ of the calibration crown roller (also called hour glass or diabolo rollers), with special attention to the upper ones.
  5. Check the position of the exit conveyor (weld a can without the conveyor and see the difference).
  6. Check whether the idler wheel in front of the lower welding roll is in correct position, or whether the circlip is missing (Xplane only)!

If you still couldn’t resolve the problem, read more here.

  1. Remove welding pressure and check if deviation of upper (outer) rollerhead (in most machines the pendulum rollerhead) is working properly (free of any mechanical friction or resistance)!
  2. Follow 1. and check „copper belts“ (the flexible power conductors between the rollerhead and the upper bus bar) and that they are not give mechanical resistance (counterforce) to the welding pressure.
  3. Following 1. and make sure that the „lift“ of the upper rollhead is not disabling the welding pressure to be fully obtained to the lower welding roll. This can happen if the both welding roller diam. are smaller than allowed.
  4. Finally check, ideally with a „tension spring balance“, the actual welding force (usually it should be within 40–45 daN)
  1. Change welding frequency (use Can Man PACEMAKER™)
  2. Change to another type of sheet and / or tin coating and monitor the difference.
  3. Make a „screw check“, especially of the secondary power circuit and the z-bar assembly.
  4. Use another overlap
  5. Check if any of the welding roller bearing have to much clearance (change them if so).
  6. Check the condition of the pendulum rollerhead.
  7. Check proper function of welding pressure assembly (see also „problems with welding pressure“).
  8. Check welding geometry in general.

Possible cause:

  1. It might be that you‘ve changed the type of tinplate (hardness or tinlayer).
  2. It might be that you have changed the welding frequency.
  3. If it appears a problem and you need help follow:
    1. I have too many „splattering“ in my welder!
    2. How to check welding pressure assembly?

According to the drawing below.

The gap between the cans is not constant (see picture below).

See also following FAQ-article Why can’t I keep the distance from can to can constant?

  1. Check blanc cutting tolerances  and in particular dimension h
  2. Check clearance (wear) of final canbody pushing system.
  3. Check calibration crown adjustment.
  4. Check blanc cutting tolerances and in particular dimension A on a series of sheets (3-7 sheets depending how many knifes are cutting dim. A on your slitter).
  5. Check the speed of the exit conveyor belt(s), which need(s) to be constant and in any case 2 – 5% faster than the actual welding speed.
  1. Check calibration crown adjustment, it is probably to loose.
  2. If 1. is checked with mandrel and you still have the same effect follow What to do when the overlap is too big in the beginning and / or too big in the end of each canbody.

Possible causes:

  • Check the blank cutting tolerances and blank squareness.
  • Adjust the rollformer (roller shaft clearance and spring pressure) according to the manual.
  • Control if there is a high difference in the tin plate hardness, by rollforming 10 bodies without welding. Put them on the floor in line and compare the difference in the rollforming overlap.
  • Check if the destacking process is going well. Make sure the tin plate is guided tight, and the separating air is positioned well.
  • Control the timing of the tin plate transport in between two transport fingers.
  • Make sure that the guidance channel is properly adjusted. The intersection to the precalibration of the calibration crown is most important.
  • Check the position of each (inside and outside!) transport finger compared to rollformed canbody.
  • Check the offset of each finger pair itself. Move the canbody slowly forward (X1 and X6 by slow mode function) and observe eventual shaking of the canbody until the welding point.
  • If a third finger exists: The third finger must be 0.5 mm behind the upper main pusher fingers!
  • Reset the calibration crown completely. Make sure that each precalibration roller is turning easily! If needed lubricate their shafts slightly and clean the roller afterwards. Make sure that these rollers are as close as possible to each other!
  • Measure the speed of the flat belt in the calibration crown:
    The speed must be absolutely identical with the copper wire speed!
  • Measure the overtravel: Short can heights shall have 1 mm overtravel.
  • The center of the diabolo roller (equal to the center of calibration crown) shall be 1–2 mm before the welding center.

X1

950 mm

X8

1020 mm

CM15

1100 mm

CM16

950 mm

CM17

1050 mm

CM20

1250 mm

CM21 WIMA

1000 mm

















Please note that those are minimum heights!

For more detailed dimensions, see products page > technical data > Layouts



Check for proper adjustment and alignment of separator-notches, rest bars and sucker bar.

  • The fan unit can be removed. Check whether the fan is correctly mounted (screwed).
  • The fans can also be removed and cleaned if dirty.
  • Replace the defective fan unit!



Download PDF

NOTE: Make sure that the wire is not touching anywhere. Only a perfectly set and maintained canbody welder, can assure perfect welding! A weld monitor is a pure “measuring instrument”.





Check this specific wire crossing (red arrow). The wire might touch each other here!



Switch OFF the QM eject function and record the curve.



Curve not stable!

Check the connection from the voltage pickup to the Qualimaker board.

  1. Put an isolation between the roll and the voltage pickup.
  2. The lower voltage pickup should be isolated to the Z-bar.
  3. Measure from the lower voltage pickup (1) to the upper contact (2) (Z-bar connection). This should be 0 Ohm! (see first picture beside)
  4.  Measure from the lower voltage pickup to the Qualimaker clamp 125/126, one off them should be 0 Ohm! (see second picture beside)
  5. Measure from the upper voltage pickup to the Qualimaker clamp 125/126, one off them should be 0 Ohm!
  6. Measure the voltage on Qualimaker clamp 125 to 126 during welding
    • the voltage should be between 0.5 and 2.5 VAC







Cause may be a short. Make sure that the bracket of the IR-sensor is complete isolated. No bolts etc. should touch the rocker arm or other parts.

Possible cause:

  • Check if the voltage pick – up “tongues” are worn.
  • Check if there’s enough “contact pressure” of those tongues
  • If they are bent; change them, do not attempt to bend them yourself, they might break!



Possible cause:

  • Defective print.

Corrective measure:

  • Replace the small print for eject station.

Possible cause:

  • The power percentage is too high! If the power percentage rises up to 96%, the LED is flashing. In this case the pacemaker does not have enough spare power to regulate the current properly.

Corrective:

  • To solve the problem, reduce current/frequency value or use a higher transformer step.

Cause:

The actual value of the weld power limiter increases with the heating of the machine.


Corretive:

Readjust the weld power limiter, to a higher value. Observe the “Max” value from a “cold “ start to a “warm up” machine during production. See also note below.


NOTE:

Power limit to activate the weld guard (stitch welding). Normally 5 – 10 % more than the actual “Max” value during production.
0 = Weld Power Limiter Off !



Download PDF here

Problem:
The display shows the set current value, but the duty cycle is very low or 0%!

Possible cause:

  • Short circuit in the welding transformer!



DO NOT ATTEMPT TO SWITCH “ON” THE CURRENT ANYMORE!
Further attempts to switch on the current, can destroy or damage the semiconductors (IGBT) in the Pacemaker!

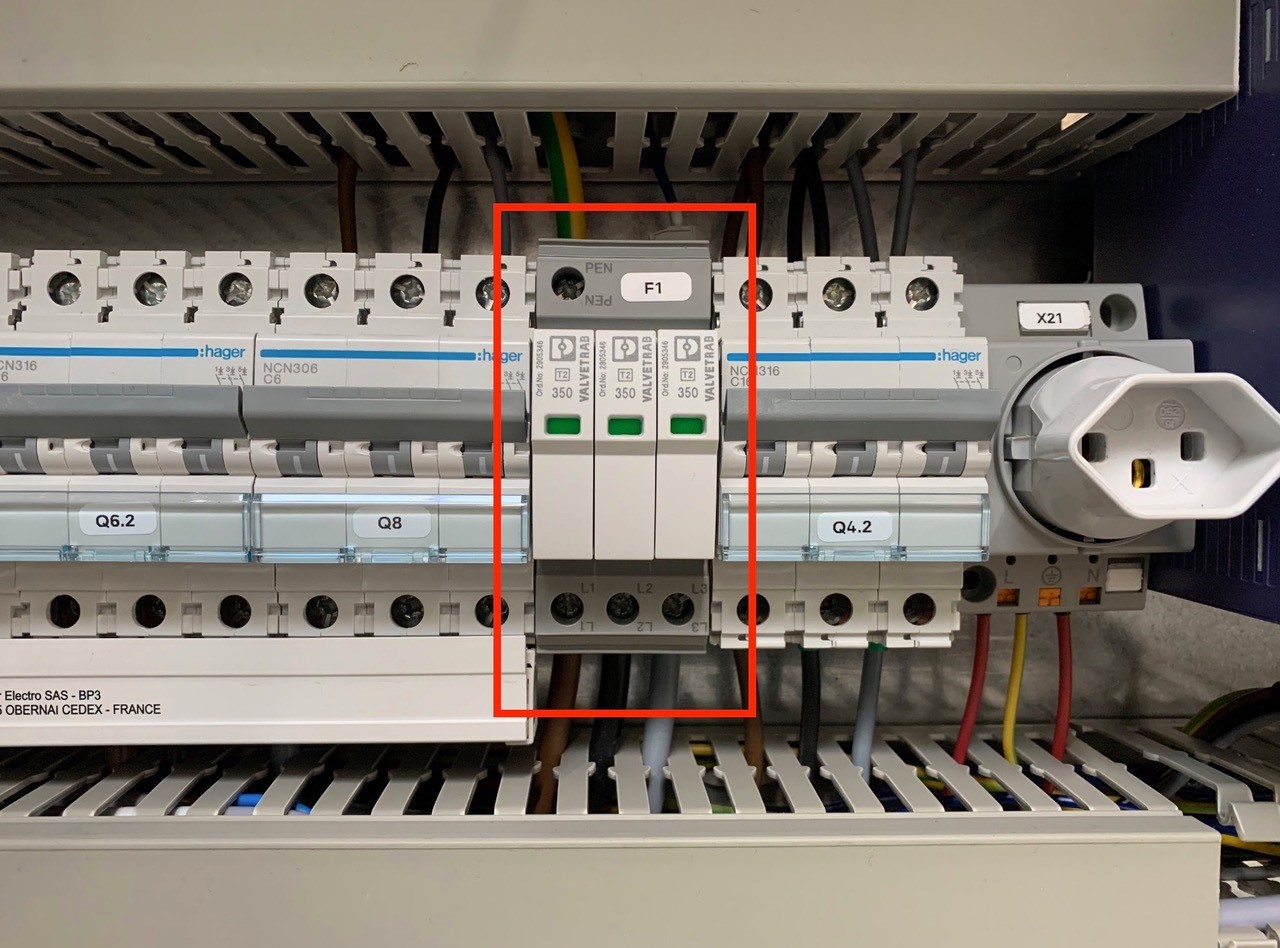

An overvoltage suppressor (or surge suppressor) is an appliance designed to protect electrical devices from voltage spikes. A surge suppressor attempts to regulate the voltage supplied to an electric device by either blocking or by shorting to ground voltages above a safe threshold.

These surge suppressors are built in to the latest Pacemaker models and machine controls (from 2009).

Check, if one or more modules of the surge suppressors are red/defect. Replace the red modules.

Attention!!!

Do not bridge the signalling contacts and run the machine with defective red modules because they no longer protect the system from voltage peaks!!!
If the modules are defective, check the main supply. Measure and check all voltages between the phases and all phases to earth before exchange the modules and restart the machine.

Important requirements:

  1. t2 must be always higher than t1 (t2 > t1).
  2. t2 and t1 must be set lower than 1 cycle time of the machine. For example, if the machine is running with 300 cans/min the cycle time is 200ms. Therefore, t2 and t1 must be set lower than 200ms.
  3. To do an overlap check set  “overlap check” to “ON”. The reduced current will be set automatically to 0A. In the same window you have an additional value. If you set this for example to 10ms you have more unwelded area at the beginning and end of can.
    NOTE: If you use “overlap check” function is not necessary to switch “Ired” to “ON”.


Possible problems, if the overlap function does not work!

  • If you can’t see the value t2 and t1, maybe the pacemaker is running with “Old” mode and not with “CMX” mode. Change in the setup “CT” from “Old” to “CMX”.
  • No input signal on input 4 (terminal 7 and 8 on pacemaker board). If machine is running, LED behind input 4 (clamp 7 and 8) must flashing. This is the cycle signal to start the timer t2 and t1 for the overlap check.

Possible cause:

  • Check your welder according checklist Conical overlap / micro leaks
  • If your Pacemaker is programed to weld with sine wave (check the IBS), we can change to triangle wave form.
    • Please contact us for further instructions.

The Pacemaker™ static welding inverter has a RAM battery for data retention and clock-buffering at power interruption/disconnection. The battery has a limited life span (about 5 years) that decreases especially without power supply (controller off). To prevent loss of data, the battery must be replaced early enough.

The parts can be ordered in our webshop or with prepared form.

Download instruction



How to change the battery on a Pacemaker™ with integrated Qualimaker V1 electronic board:

  1. Turn off the main switch of the welder.
  2. Wait at least 5min to discharge the capacitors.
  3. Remove all 4 nuts which are fixing the Qualimaker V1 electronic board on top of the Pacemaker™.
  4. Disconnect plug 1 acc. attached picture.
  5. Mark both wires 2 acc. attached picture and make a picture how they are connected.
  6. Disconnect both wires 2 and insulate their ends.
  7. Now the electronic board can be lifted to have access to the battery.
  8. Press the emergency stop button and turn on the main switch to power the Pacemaker™: This way the settings will not be lost when changing the battery !
  9. Follow the instructions for replacing the battery => Download instruction
  10. After the battery has been replaced, turn off the main switch and reconnect everything.
  11. Before switching on the main switch, check all connections again to make sure they are correct and tight.



Possible Cause:

  1. Check air supply for the cylinder.
  2. Second light barrier is always ON.
    Sensor dirty or bad adjustment.
    LED on light barrier must be ON without can, OFF if a can is detected.
  3. Adjustment of the light barrier distance to eject cylinder might be wrong.

  4. Wrong adjustment of the transport belt speed.

Possible cause:

Using a handpanel:
When you start up your Pacemaker, the software version will be displayed during the boot process.

Alternatively the information will we displayed, when you press the key “down” several times until you get to “Info Version”: e.g. 5.27

Using a CM16 welder you will also find the info by pressing the key “down”, since the display is the same as the handpanel of a PM.


Using a X1 welder:

Tip on the *eye” icon and the Pacemaker software version is displayed on the bottom line.

Using X8 welder:

Tip on the “eye” icon and then on a second “eye” icon to get to software version info on the bottom line – check also your manual book 1 – chapter 4.6. how to find the info.

Possible cause:

  • Check if the wire speed is stable and not too slow? Sometimes two cans might be welded together (no gap)!
  • Check if the speed of the exit conveyor is fast enough? The gap between the cans must be minimum of 10mm.
  • Clean the first light barrier and the reflector and check the adjustment!
  1. Switch off the main switch Q1 of the machine.
  2. Wait around 10min before you do anything on the wiring of the pacemaker! The capacitors need that time to discharge!!!
  3. Disconnect both welding cables from Pacemaker.
  4. Measure the resistant of both cable to earth. If the value is very low maybe the transformer primary side have short circuit to earth or the cables are damaged and make some contact to earth. If it looks ok (endless or very high resistant) go to point 5.
  5. Take the welding copper wire completely out of welder.
  6. Control that pendulum roller head is lift up. Put a carton or another insulating material between both welding rollers to make sure that you don’t have any contact between the rollers.
  7. Connect an external cable 230VAC (phase and neutral) to the welding cables, which you have removed on pacemaker before. Use for this external supply a 10A fuse breaker to protect the supply in case of a short circuit of welding transformer. (Take a look to picture on point 3)
  8. Before you switch on the external supply check again:
    – Wire removed?
    – Pendelum rollerhead lift up and isolation between welding rollers?
  9. Now switch on the external supply. If the 10A fuse breaker does not trip it is a good sign and it doesn’t look like short circuit of welding transformer.
  10. To control the output of welding transformer you can measure the voltage between the welding rolls (VAC). The measured voltage is depending on the type of welding transformer. If you change the transformer step this value has also to change. Check the output voltage of each step. Don’t worry if you measure only around 5VAC, the output voltage of welding transformer is a low voltage.

Before you change the transformer step switch off first the external supply!!!



Download PDF english

Download PDF chinese

Problem:

  • % going up to 100% after some seconds of welding
  • A current is dropping down after some seconds of welding
  • There is a low current of only a few amp’s
  • Current is dropping significantly down after some seconds of welding



Possible cause(s):

  • the welding roll might be defect
    • change welding roll
  • in case you use a mercury based welding roll
    • add some mercury
  • the pendulum roll might be defect
    • change the pendulum roll
  • in case you use a mercury based pendulum roll
    • add some mercury
  • the transformer step switch might be defect
    • change transformer step switch

NOTE: The reason for the low current is due to an open circuit. The wire might be also hot in this case. If you have in general a high power percentage you might reduce the frequency.

Scroll down in the display menu until you reach the temperature display. Observe, if after crossing the switching threshold, the temperature doesn’t change, that the solenoid valve is blocked (when the 2nd thresholds are reached the message “over- or undertemperature” will be displayed).

NOTE: The error message “Ths too low (Ths = Temperature Heatsink)” might be an indication for a contaminated valve.

Possible cause:

  • Welding transformer has short circuit on primary side (see How to find out that the welding transformer is damaged / broken?)
  • The cable or isolation to the welding transformer is damaged
  • IGBT broken
  • Exchange the contacts (CM article 005640) of the main contactor, or the complete main contactor (CM article 003217).
    (NOTE: This is only applicable, if the error message shows up, when you start up the Pacemaker).
  • Cooling water valve: Wrong type of valve or plug without protective circuit (suppressor).The voltage peaks can cause interferences in the Pacemaker electronics. Always use the original plug and valve type.

The Pacemaker has the following options to connect the output of the weld power limiter to other systems/controls (i.e. can rejection control):

  1. E-Relay
    E-Relay of Pacemaker does stop the welder if weld power limiter is active. To connect, use the clamp No. 45, 46 and 47 (potential free relay contact 47=>com, 46=>nc, 45=>no).
    To use this function, the parameter “Wld fault” in the Pacemaker settings has to be set to “E-Relay”. If weld power limiter is activated, the E-relay do switch on, welder stop and must be reset on the Pacemaker display before the welder can be restartet. Of course the operator has to check the last welded cans to make sure that no unwelded cans go to the downline.
  2. +Tol output (Clamp 35/36, 35=>0V, 36=>24Vdc)
    This output is switching on if the weld power limiter is active and can be used also to activate an ejector or other function. The next can will be welded normally and +Tol output will switch off automatically. If you want to use that output, you can change the parameter “Wld fault” to “nothing”. In this case, the E-relay will not be activated and the welder can run continuously without to stop if the weld power limiter detect a can. Of course you need an additional logic for the eject timing and eject the right can.
  3. +CR output (Clamp 39/40, 39=>0V, 40=>24Vdc)
    This output will be activated if the weld power limiter is active according to the parameter “WLD fault”. You can choose different settings like “CR39/40”, “CR 50ms”…
    Example: CR 50ms => Pulse of 50ms on CR output if weld power limiter detect a bad can.
  4. Can Man eject unit
    With this option it is possible to eject cans and also to eject the first and last can of a series. Please contact Can Man for an offer.Attention!!! +Tol and +CR output is supplied by the internal 24Vdc of the Pacemaker electronic board. This output is not potential free!!! Use a small 24Vdc relay to connect the signal with other systems/controls.The settings of beginning and end of can (T1/T2 or IT/ET) must be set correctly, also if you don’t use the IRED function. With this timing, the weld power do switch on the current for the next can after a stop in case of contamination (overlacquering).Code to enter the system setup: down, right, left, left, up, left, right, right

Possible cause:

  • Check if the voltage pick – up “tongues” are worn.
  • Check if there’s enough the “contact pressure” of those tongues or if they are bent. If they are bent; change them, do not attempt to bend them yourself, they might break!

  • Short circuit (see picture/graph beside)
    e.g. lower tongue has contact with power window!

    • check wire – usually after a short circuit the wire is damaged!



  • Short circuit (see picture/graph beside)
    • the wire might be damaged/broken within the Z-rail.



Potential remedy

  • Check the „over voltage limit“ in the basic-setup.
    Password for overvoltage (max. 900V) = “MENU-DOWN-ENTER-UP-DOWN-UP”
  • Check the “voltage limit” in the basic setup.
    Password for “voltage limit” (max. 565V) = “UP-DOWN-ENTER-UP-MENU-DOWN”
  • Check the inputvoltage (400Vac).
  • Is the wiring between C-bar (voltage measuring) and HF controller correct?
  • Check the voltage signal over the C-bar. The voltage peaks should not be higher than the “over voltage limit”. To measure you need a scope meter and a differential probe or a scope with isolation to ground. See the pictures of tools, where to connect and how the signal looks if everything is fine.
  • Check if the IC OC17 (Type 6N137) is faulty.
  • Try to start the generator. If not successful, request support.



Possible reason choke coil defective

  • Separate the choke coil from the original circuit and measure with an inductor → if the inductance is reduced a lot it mean is defective
  • original value = 320 microHenry
  • Check function of the valve
  • Check water circulation to the pacemaker
  • Check the water pressure
  • Check function and the contamination of the ventilators.
    • If necessary clean or change them.

If the voltage value drops below 350 V the error message “Phase voltage error” shows up.

Check the main supply: L1 / L2 / L3.



Check also the input directly inside the PM.



QM board defect?
A reason for a voltage error could also be a defect on the QM board, which receives it’s supply from the elec. board of the PM.
To verify a defect you can remove the supply cable. The voltage value should go up around 20V (e.g. 375V to 395V), which is normal. If the increase much bigger than 20V the QM board has a defect and need to be replaced.


The voltage value on the touch screen is much lower than on the main terminal!

As a matter of fact, this electrical balancing of the two values has been done by CANMAN prior to the delivery. If there is a discrepancy you can adjust it.



You have to lose the small electronic board of Qualimaker (if applicable). This board is supplied by the big electronic board of PM. If you remove this supply cable, the voltage value goes up around 20V (e.g. 365V to 385V), which is normal.



Now measure the input of terminals, for example 385V. Turn the small blue potentiometer (picture). Control the value on touch screen. Must be around 20V more than the measured value, if you have a QM board. If you have adjusted it, connect the supply of QM and now you have the correct value on touch screen.



NOTE:
Starting with the version of the V4 mainboard, the board has two potentiometers. You need to adjust the “UMains” potentiometer in this case.

FAQ – Trouble Shooting

For the correct function of Qualimaker please check the 3 LED’s:
LD16 = state of profibus connection, must be on every time.
LD1 = program state, must be on every time.
LD2 = clock(cycle) of program, must be blinking.

Check

– Check the cooling-water-inlet.
– Check the “Ths” and “Tamb” on the display.
– Check the small fans of the Pacemaker



NOTE:
The error “Ths too low” means temperature heat sink (copperplate) too low. If the copper plate is too cold. It can damage the unit, if some condensation water flows to the electronic power parts.



Check if the valve closes correctly and clean the valve.

NOTE:
If you reassemble the valve, make sure you do it the right way (see picture)



Check the correct water flow direction.

Download PDF here

NOTE: The pictures showing a regular Pacemaker and not a Pacemaker HF as used in the PowerCure, but the issue is the same!

  1. Check if there is a higher trafo step
  2. Lower the freqency if possible
  3. Check machine insulations

Check the fuse on the bottom side, near the mains electrical (only PM 400/500 – PM Micro has no fuse!)
Check also the cable on this holder, it might have bad or oxidised contact!

USE 2A T (slow) FUSE
DO NOT USE LARGER OR FAST TYPE OF FUSE!



Check, if one or more modules of the surge suppressors are red/defect. Replace the red modules.

NOTE:
These surge suppressors are only built in to the latest PM models (from 2009).

ATTENTION:
Do not bridge the signalling contacts and run the machine with defective red modules because they no longer protect the system from voltage peaks!!!
If the modules are defective, check the main supply. Measure and check all voltages between the phases and all phases to earth before exchange the modules and restart the machine.



Make sure that you do all the actions with the necessary care and that all manipulations and measures are done by a certified electrician and with a well insulated multimeter! However do not manipulate inside the unit before the front panel display shows a low U batt (<24V)-(condensator battery voltage)!



With main switch on, switch on the inverter and monitor the charging of the battery voltage (Ubatt).

If the charging process starts normally and the battery voltage (Ubatt) constantly increases above 360V, then stops and pre charge error appears, it may be that the limit for activating the main contactor is not reached. The reason can be a slightly lower 3-phase main supply. If you have measured all phases and they are stable only slightly lower, open a Canman support ticket to get information on how to adjust the limit for activating the main contactor.

If battery voltage does not at all increase, you may check the function of the “small precharge relay” and its output on the main board.



There is an LED (LD25) on that output showing the state of this output. If the precharge relay doesn’t react you may check the wiring.



If the battery voltage increases, but the “precharge time out” appears while the voltage is still increasing, it could be that.

a) a phase is missing or has an “under voltage”, therefore you should check the voltage of all three phases (also to ground!)



b) it could be that the rectifier (1) or even worse a condensator or an IGBT (2) is malfunctioning.



Measure the actual battery voltage and compare it to the display (Ubatt). (ATTENTION: Switch off the unit and wait ’til the battery voltage is low, before you remove the front cover!). The voltage could be beyond 550 Volt DC, so please use a voltmeter, which has the necessary range. The terminals are on the left top (usually red and blue coloured).





If the voltage shown on the display does not correspond to the measured voltage, it can be adjusted with the potentiometer.



During loading, check the LED on the power board, which connects to the condensers. Are they glowing up at the same time? After loading are LED’s still on?

If not one more condensers might bad or defect!



To check the preload resistors, you can measure the resistance with the Ohmmeter, between the relay contact “14” and the recitfier (red wire) and contact “24” and the recitfier (black wire) – see picture beside.



The result should be 68.0 Ohm.

Possible cause, the signal “reduce current” is always active. With reduction switch on there is no measuring, that means “Ctol” and “Power Limiter”are not active.

Check the signal “reduce current”. Maybe the electronic card of the machine is defective.

Questions:

Do you have instructions on how to upgrade our current Pacemaker software? Yes.



Change of the processor board

The software for the Pacemaker is memorized on a small processor board. For an update with new software you need to change this board.

IMPORTANT:
Before you start to change the board write down all values/parameters (e.g. main current, frequency etc.) for each can you have saved in pacemaker memory.
This not necessary for the CMX1 and X8 welder, because the parameters are safed in the panel.



Switch of main switch of pacemaker / machine.



WARNING:
Wait 5 minutes before you remove the cover. Capacitors with high voltage inside!



Remove the processor board carefully by hand. Do not use any tools for that.



Install the new processor board.



Be careful about the board position and especially the position of the connectors.



NOTE:
Depending on your current Pacemaker version you have to change the MAX IC as well.



The MAX IC controls all outputs and IGBT`s and works also with a software.



NOTE:
To remove the IC, use the delivered special tool. Never use a screwdriver or another tool. You will destroy the socket!



Take MAX IC out with the designated tool.



Install the new MAX IC.



Double-check the position before you press the IC in the socket!



Switch the main switch “ON” and check all parameter (current, frequency, etc.) before you start production.

Check the main supply
R-380VAC (L1), S-380VAC (L2), T-380VAC (L3).



Check if all green LED’s are “ON”.


Check in the display of pacemaker the actual displayed voltage R, S and T! (old version PM)



If you can see these values and one of them looks to low, you can adjust it with the three small potentiometer on left side of processor board (old version PM).

  • Check sensor on tool
  • Check setting of t2 and t1
  • Check input of reduce current signal. LED of input 4 of pacemaker board.
  • Check the Max Gap setting. Factory setting 80%.
  • For testing you can set Max Gap to 0% => function off. Attention! No correction of the memory if cans are removed before the ejection station.
  • Check light barrier of eject station, maybe wrong adjustment or dirty.
  • When the cans passing the light barrier of the eject station, the gap between the cans must be bigger than 10 mm.
  • Additionally check the following possible causes here.
  • Check can memory. Must be “0”, if there is no can between welding area and the reject station. For reset memory activate light barrier by hand or  use function “reset can memory”.
  • Check sensor on tool or light barrier.
  • Never take out can between welding area and eject station.
  • Check condition and setting of the machine.
  • IReg Max too low.
  • Setting of the Qualimaker.
  • The message “jam in welding section” means the welding sensor B6 is on for 4 seconds without switching on and off. In normal production the sensor is switching on and off for each can.
    • Check the function of the sensor!

If you have connect the control panel and you can see only strange signs in the display, the connecting speed can be wrong. The Pacemaker control panel can run in two modes.


19200 baud

Control panel standard is 19200 baud (Used for connecting between control panel and PLC )

9600 baud

9600 baud (Used only for connecting between PLC and Pacemaker)



How you can change to 9600 baud:

Switch off the Pacemaker (Main switch off)

Press the “MENU” button while starting the panel.

Now the control panel runs with 9600 Baud Can Man machines with PLC.



How you can change to 19200 baud:

Switch off the Pacemaker (Main switch off)

Press the “RESET” button while starting the panel.

Now the control panel runs with 19200 baud
Control panel and PLC.

19200 baud

Control panel standard is 19200 baud (Used for connecting between control panel and PLC )

9600 baud

9600 baud (Used only for connecting between PLC and Pacemaker)

How you can change to 9600 baud:

Switch off the Pacemaker (Main switch off)

Press the “MENU” button while starting the panel.

Now the control panel runs with 9600 Baud Can Man machines with PLC.

How you can change to 19200 baud:

Switch off the Pacemaker (Main switch off)

Press the “RESET” button while starting the panel.

Now the control panel runs with 19200 baud
Control panel and PLC.

Software Upgrade:

The software for the Pacemaker HF is memorized on a small processor board. For an update with new software, you need to change this board.
NOTE:

Before you start to change the board write down the voltage value you were using for your application.



Switch off the main switch of PowerCURE™



WARNING:
Wait 5 minutes, before you remove the cover. Capacitors with high voltage inside!



Remove the processor board carefully by hand. Do not use any tools for that.



Install the new processor board.



NOTE:
Be careful and make sure that you mount the new processor board correctly and that pins match the socket!! Watch from the side.



NOTE:
When you first start up, use a low voltage of approx. 80 V.
We hope the upgrade work was successful. Thank for your support!

Requirement:

  • The cooling energy should be 3 kW or more.
  • Cooling water temperature not below 20°C, due to the condensation at the coil.
  • The water pump should be able to generate a min. of 4 bar pressure at the inlet of the PowerCURE™ with a pump capacity of min. 10l/min.

Customer options:

  1. You buy your cooling system – you are responsible for the required technical data.
  2. You’re planning to buy a larger cooling unit for the PowerCURE™ and the welder, you must add the data of both systems requirement together. Ask the original welder manufacturer for the cooling data and remember; if the cooling water for the welder is required to be below 20° C, you must split the system in two circuits with independently adjustable temperatures.
  3. You order the cooling unit at CanMan.
  4. You buy a CanMan welding machine with seam protection and a PowerCURE™. In this case we will deliver a combined cooling unit, which cools the welding and the PowerCURE™ unit.

Correctives 1 – Too much heat during the first part of the curing process:

1.1.  The tin flow has to to be only as wide as the width of the powder and / or lacquer stripe and not more (usually around 15 mm for food and aerosol cans)!
- This width covers also lateral shifting can bodies during daily production!
- The internal powder must have a low melting point, starting from about 180°C!
- Most commercially available and good powder coats are fulfilling this demand For further information for recommended powders, please contact Can Man.

1.2.  The conveyor speed in the oven is too high, therefore the curing time too short!

– Distances between the cans of more than 1/2 canbody height is a reduction in curing time of 25% (or from 5 sec. to only about 3,8 sec.!)

1.3.  The adjustment of the coil to the can bodies is wrong.

1.4.  The curing length is too short (before order a longer curing system, please follow first the Correctives 2 and 3!)

Corrective 2 – The wet lacquer application is not constant, too thick or too thin!

2.1.  Especially for induction curing system, with shorter curing time, a constant film thickness is required!

- Please note that a constant and a “as thin as possible” lacquer application is essential not only onthe curing effect, but it also reduces the lacquer cost!

2.2.  The can body must be round – within standard tolerance -, overlap begin and end must be equal!

2.3.  Depending on the configuration, rubber roller or steel rollers must be used!

- For further information and / or support contact Can Man.

2.4.  The speed of the application roller is wrong, compared to the passing can bodies!

- Generally can be said, that a too high application roll speed leads to worse results than a too slow one.

- Depending on steel or rubber rollers different speed than can body speed might be used, but must be controlled and monitored.

2.5.  The material and / or the form of the rubber/steel roller profile is wrong!

- For the use of a steel roll (longer lifetime) we urgently recommend to have a “supporting conveyor “under” can body (available at Can Man)

Corrective 3 – Wrong wet lacquer type in use:

3.1.  Not every wet lacquer type is applicable for induction curing system due to the fact that the heat up ramps are much faster than with a gas curing system

- For a list of recommended (and pricewise competitive!) lacquers contact Can Man

3.2.  The correct viscosity and therefore the proportion of solvent is most important for a non-porous side seam protection.

- For further information and / or support contact Can Man.

Possible cause:
Sparking on the induction coil

  • Make sure that there is a clearance of 3–5 mm between the coil and the canbody!
  • Make sure that the cooling water temperatur setting is correct (> 25°C) and you have no condensation at the coil. Condensation could cause a short circuit!

HF filter not set correctly (to high)

  • Check setting of PLL stfreq and HF filter. HF filter must be set 10KHz higher than the PLL stfreq. Go to the “system setup” to check.
    Note: The setting is password protected. If adjustment is needed, please contact Can Man.

Check all insulations of the coil and C-bar.

  • Download PDF here for more details!

Possible cause:

There might be a loose connection!



Check the connection of the plug J1 on the main board (see picture).

Check the voltage on this plug while running:

white -> black = 0.5 – 1.0 VDC

green – > black = 15 VDC

brown -> black = -15 VDC



If you don’t have 0.5-1.0V, please check the wiring of this cable, which goes to a small board inside the of the PM HF.

NOTE:
Check this plug only when the unit is switched off and discharged!

Cause:

The water flow of the coil is too low!

NOTE:
The standard setting for this error is 3l/min (can be found in the basic setup “rotary minflow”).



The actual water flow is shown in the display. Press down from the main menu on the display until you find the flow coil.

NOTE:
You have to switch “ON” the curing to open the water valve!

Check for possible causes:

  1. Check correct connection of inlet and outlet!
  2. Clean inlet water filter.
  3. Check your input pressure, you shouldhave about 5 bar.
  4. Check if a water tube is bended ordamaged.



Clean the water valves:

Therefore disconnect the water inlet to the Pacemaker HF and blow out the water. Take off the coil and open the valve with a torx screwdriver. Blow out the valve and clean the rubber.



Reassemble the valve properly (insert the closing block with the spring on top, so the rubber is closing the outlet hole.



Clean the rotary flow unit. Follow the instructions below.



  1. Disassemble device by grabbing lens center hex with 7/16″ socket and turning 45° counter-clockwise. Pull on lens to unseat. Dismantle internal components.
  2. Clean body interior (rotor cavity and o-ring gland).
  3. Lube o-ring.
  4. Install o-ring to body o-ring gland.
  5. Install shaft to body.
  6. Install rotor to body on shaft (on top of washer).
  7. Install lens to body.
  8. Turn lens 45° clockwise to lock it.
  9. Pressure test to 50 psi to proof o-ring integrity.

If were not successful, replace the rotary flow meter => CM article No 007906



Possible cause:

  • Check whether the powder already was falling off, before the canbodies did enter into the PowerCURE™.
  • The transport belts are not running steadily:
    • Check whether the belt from the motor to gearboxes is jumping over.
    • Do not tension too much, tension till the belt is not jumping over anymore.
  • Take off the belt from motor and both transport belts, and check the play of both gear boxes:
    • The internal worm gear might be broken.
  • Grease the guides of the transport belts to reduce the friction.
  • Check whether the transport belts are moving straight into the guides:
    • The belt is possible touching left or right of the groove.
  • Check all wheels and replace the bearing when not turning smoothly.
  • Increase the transport belt speed.
    • Please check the curing after increasing the speed as this might require a bit higher voltage adjustment, however the consumed energy is the same.
  • Check whether any screw from the frame or any of the feet has become loose.
  • Check, if the motor/gearbox of the conveyor drive is grounded. Only applicable for latest model.
    • If not, ground the motor/gearbox.

Water quality:
pH value: 7–9
Conductivity: 50–60 µS/cm
Total hardness: < 14 °dH
Filter: max 150 µm

The reset LED flashes and a warning is shown!

If the reset LED flashes, then the system works in a critical state. The unit is still entirely functional, but it should be a hint for the operator to do something against the warning.

Contact Can Man for advice!

Possible cause:

  1. Check the water flow. Is the water flow reduced compared to before!
  2. Clean the external filter.
  3. Do you have a drop of pressure compared to before?
  4. Check the water quality.
  5. If you have increased the power, it could be, that the water temperature at the C-bank is higher than before.
    • you might increase the flow – contact Can Man for advice
      (only for CM technician turn the restrictor / valve by an eighth of a turn).

Please check on the white transformer all connections.



ATTENTION:
Switch OFF the main supply first!



Nuts must be firmly tightened, but do not overtight! Bolts must well fixed in the casting compound.



NOTE:
A loose connection creates an overheating and destroys the transformer and cables!

When you start up your PowerCure equipment, the software version (here called generator data) will be displayed during the boot process.

Alternatively the information will we displayed, when press “MENU” and then press the key “down” several times until you get to “Preheater Info”:

There are two Software versions displayed:
e.g. – S/V 2.65 and EPLD V63



Don’t worry, due to the induction process this is absolutely normal.

Possible cause:

  • Between touchscreen and frame there might be dirt or the airgap is too small.
  • Touchpanel defect.
  • Scale of the touchscreen surface is not correct.
    Contact Can Man use E-ticket.

Download PDF here

German instruction: page 52 – 55

English instruction:  page 110 – 113

French instruction:  page 172 – 175

The IC, which control the analog output, must be replaced. Please request support from Can Man!

Possible cause:

  • Battery voltage low = DC voltage across the chopper too low
  • Supply voltage mains (all three phases) 400V
  • Check main contactor K1 all connections tighten
    If you doubt the functioning of the contactor , replace it with the same type.
  • After loading and switching on the MS signal (K11 in the control), the main contactor (K1) should switch on and there should be 400V at the out put of the contactor.
  • The triggering of F1 is not shown on the display, respectively the error is reported as “battery low voltage”. Reset the F1, when the error occurs again, increase the ampere value to 32 A.
  • Measure the voltage over the battery / capacitors in the standby condition. (min. 400 VDC)
  • Check the fuse at the 24V power supply (F1..F5)
  • Check if the relay K3 and K4 connections and plugged properly
  • If the message arises sporadically after a certain time, the receiver on the HF controller is probably defective. => Contact Can Man

CAUTION – HIGH VOLTAGE:
You are now in the immediate vicinity of parts that produce high electric voltage! There is a danger of an electric shock.

Only performed by “certified electricians”



  • Measure the voltage on the clamp J5
  • =>if the power output is set to 50V it should have about 100mVDC. (Running with curing “ON”)

Measure the voltage on the main board clamp 57=”+” 58= “-“ => if the power output is set to 50V it should have about 100mV.

• Check if the Dc-Dc IC has a problem you can exchange it with an other one on the board
(which is unused in your configuration – remove the IC carefully, so the pins are not getting damaged!)

  • If the measurement is still lower than 100mV, you have to replace or repair the C-Bar. (Can Man No. : 019817)
  • There is a problem on the voltage divider on the C-Bar (R1..R12). One of the welding pointsπ or SMD resistors are bad or damaged.R=150 kOhm
    among end of R1 and J5X : 900 kOhm among end of R7 and J4X : 900 kOhm

Possible cause:

  • Check if the blank cutting is correct.
  • Check if the overlap is correct and constant.
  • Check the welding sensor B6.
  • Check the welding pressure sensor S31:
    • depending on your version S31 is a pressure sensor or a reed switch!
  • Check if the wire has no dent’s (mechanical damage for example due to too big can gap).
  • Check all terminals at the Pacemaker board.
    • > wait for 5 minutes after switching off the unit.
  • If you can weld a canbody with only main current and the error occurs quiet often, you can try the following:
    • a) remove the welding sensor.
    • b) start production and cover the sensor by hand, as soon as canbodies are welded.
  • Open the rollformer, and put a piece of wood between the rollers (for safety)
  • Only if weld pressure by spring: Release the spring pressure of the welding pressure completely
  • Stop the main air supply
  • Switch of the main power supply
  • Stop the cooling unit, take off both water pipes from the lower weld arm (long copper bus bar)
  • Take off the lower weld arm by taking off the copper plate (on transformer side) and loosen all bottom M5 screws.
    It might be needed to take off the idler wheel in front of lower weld roll as well
  • Undo both bottom M5 screws (type: Flat head, thickness 1.5 mm) of the T Z-bar
  • Undo both M6 screws (through side plate of rollformer) which is holding the support above T Z-bar
  • Undo four M5 screws which are holding the T Z-bar over its top support
  • Clean the slot in which the T Z-bar is going in by air pressure if needed
  • Clean the surface on the rollformer side plate if needed. Don’t use sandpaper with your fingers. If needed use a grinded plate to support the sandpaper.
  • Grease the T Z-bar and the slot and mount the T Z-bar by the bottom two M5 screws. Don’t tight them yet!
  • Mount the top support by four M5 screws, and push the support (and T Z-bar) towards the rollformer side plate
  • Check now the top and bottom gap between side plate and support by feeler gauge 0.02 – 0.04 mm: There shall be no difference
  • If there is no gap, tight first the bottom screws, then top screws, then screws through rollformer side plate
  • Undo the bottom screws and tight again
  • Clean all bottom flat head M5 screws if needed (they become rusty), and grease their heads
  • Mount the lower weld arm. Make sure that the insulations of each screw are not damaged. Lubricate each insulation if they are made by shrinking tube
  • Put a piece of paper board between the weld rolls and measure the insulation
  • Connect the lower weld arm on the transformer side by mounting the copper plate between and connecting the water pipes
  • Switch on water, air and power supply
  • Feed in the profiled copper wire compeletely
  • Only if weld pressure by spring: The gap between both weld rolls shall be not bigger than 2.0 mm (enough to feed-in two profiled copper wire). Adjust if needed by the M6 threaded bolt / nut
  • Adjust the air-throttle on the weld pressure cylinder to make sure that the piston is coming down as slow as possible!
  • Test it first by activating the solenoid valve
  • Only if weld pressure spring: Adjust now the spring: If the weld rolls are closed the compressed spring shall have a length of about 55 mm (length of uncompressed spring
    measures 80 mm. 5.5 mm are equal to 10 kg / daN)
  • Take off the copper wire completely.
  • If powder tubes are in use, take them off too.
  • Take off the nosepiece, and clean its positioning slot very carefully!
    Special attention is needed in the area of the front pin.
  • Measure the resistance between lower welding arm and the Z-bar support/long Z-bar.
    • The restistance must be endless.
  • If the measured value is too low, take off one after the other screw underneath the lower welding arm.
    Attention: Do not take off all screws, the lower welding arm will fall down!
  • Check if every screw has an insulation ring and tube.
  • Blow off all holes by air pressure.
  • Check if the long insulation stripes on each side of the Z-bar are in.
  • If the restistance is still not good, the secondary unit may have somewhere else a contact with the ground.
  • Check the hole secondary circuit.
    • The secondary circuit must not be connected to the ground!

Work: Alignment of the roller head

IMPORTANT:
The center of the upper roller head must be approx. 4mm ahead of the center of lower roller head. This setting supports the achievement of accurate overlap during the welding process.


Procedure:

Switch off the air supply, the welding roller heads should touch each other.



Loose the chain tensioner.



Undo the 4 x M8 screws of the current band



Undo the 4 x M8 screws of the motor to reduce the tension of the timing belt.



Undo the 2 x M8 screws of the oscillator to loose the connection to the welding pressure.



Undo the 2 x M12 screws of the oscillator.



Adjust the oscillator, in order to achieve the offset of 4 mm (see explanation in the first frame).



Tighten the oscillator.



Question: Are both wires lined up accurately? If not, undo the oscillator once more to shift it slightly sideways.



IMPORTANT: Check if the welding roll touches the oscillator. If yes, adjust the welding roll sideways.



The remaining work is, to perform the reverse sequence of the procedure.

Machine basics:
– Overlap 6.0 mm
– Copper wire diameter 1.8 mm – Galvanized metals 0.7 mm

1. Maintenance:

1.1. Make sure the whole Z-bar area (also the inner part) is free of small swarfs, steel dust and other. This little dirt can reduce the function of several isolations, and the weld power starts to become uncontrolled! Sometimes more, sometimes less power could be the negative effect!

1.2. Run one or more metals without current, and feel any slight vibrations / acc – decelerations while moving forward!

2. First, basic adjustment:

2.1. Copper wire profile (width not thickness!) after the profiler must be between 2.20 – 2.25 mm. Use the delivered micro-meter to measure the copper wire, if needed adjust the profiler, see the manual.

2.2. Wire tension: On the main aluminium plate you see an air regulator. Set the pressure to 3.0 – 3.5 bar by turning the handle on top of air regulator. If the copper wire is running, the wire must be well tensioned. You can imagine, if the copper wire has a low tension, he likes to get welded with the metal. If the tension is to high, then the copper wire like to get stretched, and can break frequently.

2.3. Welding pressure: Close the welding wheels by turning the turn-switch on the panel. Near to the upper welding wheel you see a spring. Close to the spring you see an aluminium welding pressure. The lower end of the spring shows the value on the scale: Should be between 60 – 70 daN.

3. Second adjustment:

3.1. Start and end timing weld power: Both potentiometers should be zero. Weld a sample. Now you should have minimum 1 mm unwelded in the beginning / end. If not, adjust S63 and S64 until you see it. Now we are sure that the copper wire can not get damaged due to burned beginning / end!

3.2. Reduce weld power: Probably the weld power is to high. Reduce, and check if the welding is still enough, or the metals start to break off. Go back to origin value.

3.3. Increase welding pressure: Go up in 5 daN steps, and proof the metals. Target has to be, that the zinc – craters around the welded areas are getting reduced. This means that the metals got melted closer to their contact – point.

3.4. Increase weld speed: Turn the potentiometer 10 by 10 units (not over 30 for galvanized metals!), and weld some metals. Possibly you may adjust S63 and S64 again.

4. Others:

4.1. Two copper wires: If you can not get successful, use two copper wires (control also on the second wire the profile!), and weld some metals. If the wire breaks has stopped, send us more pictures of your last welded metals. Now you can continue your production, while we can rethink next steps to help you.

NOTE:
A minimum of marks will always be left on the canbody, because the CM21 is a semiautomatic welding machine with a clamping system.
But you can minimize the marks on the canbody, we can show you how.



Loose all four allan screws.

Adjust the nose/headpiece through the excenter with a screwdriver and then tighten all screws again.

Possible causes:

  1. Welding pressure:
    Is the welding pressure mechanically always guaranteed?
  2. Upper roller:
    Is the upper roller touching the Z-bar?
  3. Lower welding roller:
    Is the lower welding roller too low?
    Welding center must be in the center of Z-bar!
  4. WEC-O3 circuit board:
    Change the existing with a new one.

    Attention:
     Make sure all jumpers and all little blue pontentiometers are in the same position!

Use a common Ohmmeter, as you can see on the picture.



Measure the resistance between left carbide ring and main aluminum plate.
The measuring result on the Ohmmeter must be endless!



Measure the resistance between left carbide ring and main aluminum plate.
The measuring result on the Ohmmeter must be endless!



Measure between left and right carbide ring. The result on the Ohmmeter must be endless! This step is to ensure the proper insulation of both rear insulation rings around the taper roller bearings!



The picture shows the correct measuring result on the screen of the Ohmmeter for all three test points!

Download PDF here

=> How to adjust below, have a look at the manual!

Transformer step:             1 (if other is chosen, mention it)

Air supply:                           min. 4 bar and dry/clean! Check if water is in the tank, if yes, please mention
it, and if the filter is still in.
It may happen that an air regulator is damaged/not working properly, due to
water or dirt.

Copper wire profile:           2.05 +/- 0.03 mm

Welding roller grooves:      width 2.10 mm, depth 0.40 mm
Edges should not be sharp, grind them manually!

Welding speed:                    See display frequency inverter, 50 – 55Hz (10 – 12m/min)
Above 12m/min micro leakages can appear!

Welding pressure:               1.7 – 2.0 bar (35-40 daN/kg)

– Set the ball joints on both central pressure cylinder (piston in top position):
Measure from end of ball joint to the begin of piston, it must be 22 mm or until the steel bar (of pressure link) is laying parallel to the base alu-plate
=> Target: Distance between pressure link rollers and groove of clamp bar around 0.5 mm

– Z-bar must be mounted parallel to top alu-plate
=> Measure with depth gauge left and right!
=> Measure the isolation between Z-bar and top alu-plate!
– Precise guide-bar (underneath Z-bar) must be positioned and mounted parallel to Z-bar => Measure with depth gauge left and right!

– Mount lower weld arm to Z-bar
=> Measure the isolation between Z-bar and lower weld arm
– Mount the lower weld roll, and set the height: Top point of weld roll (incl. copper wire) must be on the same height with center of Z-bar, or bottom side of upper Z-bar groove!
=> Depending on form of can body after welding!

– Move the upper excenter-shaft (rear axle of big alu-block which holds the upper weld roll), until the center of the upper weld roll stays around 1 – 2 mm behind the center of the lower weld roll
=> Helps to keep the overlap!

– Mount the small bearings on to inner and outer little shafts on the Z-bar
=> Lateral play of bearing shall be around 0.1 mm
– Mount the (brown) bottom base-plate onto both precise-carriages
=> Make sure that all 4 pins in the base-plate touch the precise-carriages inside!

– Start to mount the watercooled clamp-bars:
Place the outer / bottom clamp-bar ontop of bearings, move the bar forward and backward, and check whether the bearings are running freely in the groove
– Mount the alu-support between clamp-bar and bottom base-plate, and tight all four M6 screws slightly. Move the carriage forward and backward, and tight the screws step by step.
=> Whenever the clamp-bar is tightened, and the carriage is moving forward and backward, there should no resistance be felt during movement!
– Same procedure with inner bottom clamp-bar. Before lock the rear screws, mount the stainless steel plate on the front end of both bars and make sure that both bars are in line! Do not fully tight the M5 lock-nuts!

– Set the upper front pressure link:
Rear turning point must be free of play, see the assembling drawing for further information
– Tight the center grub screw M8, until they touch the Z-bar slightly
– Measure with depth gauge between front end of pressure link to Z-bar: Result should be 18.2 +/- 0.1 mm. If you have a different measure, change them by moving the grub screws.

– Place the outer upper clamp bar, move both sliding rollers from both pressure links into the groove, and tight both M6 screws on the rear vertical support rail. Measure between clamp bar and Z-bar should be 30.3 mm, see also in the assembling drawing. If not yet, loose the M6 screws and move the support again.
– Same procedure with inner upper clamp-bar.
– Connect the cylinder (piston in top position) wit the upper clamping bar, and adjust the ball joint until the distance between the upper and lower clamping-bar measures 1.0 +0.2/-0.0 mm
– Same setting to be done with the cylinder inside.
– If everything is fine the gap between the clamp bars in the front in and outside is also 1.0 +0.2/0.0 mm

– Finally check the clamping-force efficiency of the inner and outer clamping pairs: Air-pressure between 3 to 4 bars.
– Place a tin plate in the outer inner Z-bar groove, close the bars, and try to pull the tin plate out of groove by hand

=> The force on both sides should be as equal as possible.

We may have delivered some L1 and/or L2, with a wrong adjustment:

The center of the welding wheel/rollerhead with the welding ring diameter 140 mm, shouldbeX=4-6mmbeforethecenterof the fixed welding roller. It can create difficulties to keep the overlap, especially on long pieces.

Procedure:

L1 & L2

Undo this screw.

L1

Turn the nut softly with screwdriver and plastic hammer.

L2

Turn the nut softly with screwdriver and plastic hammer.

L1

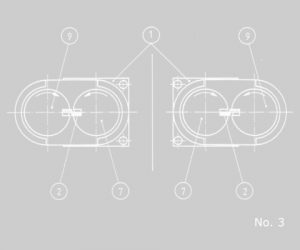

Shift the unit with welding wheel, according to the sketch, to achieve the offset of 4 – 6 mm.

L2

Shift the unit welding wheel, according to the sketch to achieve the offset of X = 4 – 6 mm



NOTE: This offset will help to keep the welding piece in the Z-bar grooves during the welding process.
Don’t forget to tighten the nut and screw, after the successful procedure.



We like to apologize for the inconvenience caused and thank you for your support.

Report all steps, new or different settings, old and new production parameters (can size, cpm, weld speed, weld current, weld frequency, current wave-form and transformer step) for an easier overview and follow-up!

Open a new ticket and add your document!
Note on which tin-plate parameters (thickness, hardness, tin coating inside / outside, rolling direction, BA or CA, supplier, printed or not) such faults occur, and on which tinplates not!

Basic parameters & settings to be checked first

  1. Tin-plates must be cutted within the allowed tolerances:
    • Measure the tin-plates and report if out of tolerance!
    • Follow sheet „blank-cutting tolerances“! Download PDF
    • Are all tin-plate parameter clear and noted: Thickness, hardness, tin coating in and outside, rolling direction, BA or CA, supplier, printed or not
  2. The copper wire must be correct profiled and the surface not damaged:
    • The width of the profiled copper wire shall always be 0.05 mm smaller than the profile-groove in the weld rollers!
    • Measure the width of the profiled copper wire within around half a meter on several position, and note the variations. Maximum difference of 0.05 mm are allowed. If you measure more, check the concentricity of the profiling rings.
    • Change the copper wire profiling rings or idler/guide wheels if the surface of the copper wire shows a damage!
  3. Both weld rolls must be regrooved after its regular groove life-span or replaced:
    • To avoid unexpected heavy weld faults it is recommended to implement the total piece-counter and the regrooving interval into the production order!
    • As an example:
      • Upper weld disc ø 90 mm to be regrooved after 3 mio cans (interval depends on, type of welder, type of weld roll and welding speed).
      • Lower weld roll ø 62 mm to be regrooved after 2 mio cans.
      • Total piece counter at production start at 28 mio welded can bodies, upper weld disc has been regrooved at 25 mio, therefore to be regrooved now! Lower weld roll regrooved at 27.5 mio, therefore to be regrooved at 29.5 mio.
    • After every regrooving weld roll and / or z-bar must be repositioned: Use the correct to reset the lower weld roll and/or nose-piece, and the upper welding roller!
  4. The z-bar must be clean in and outside – and not worn -, calibration crown must be clean, and are all pre-calibration rollers shall turning easily:
    • A dirty z-bar may not be well insulated, therefore the risk of wear is higher and the weld current is flowing over z-bar and tin-plate to the weld center!
    • Note: The insulation of the secondary circuit should be controlled yearly!
    • Non turning pre-calibration rollers can create body-offset and unconstant can gap!
  5. Both tin-layers must be centered and parallel on the copper wire:
    • That means that all mechanical settings are correct!
  6. The welding pressure must be set correct:
    • Welding pressure for Wima welders vary between 35 and 50 kg / daN. Start with ~ 45 kg / daN. Check the manual to convert in bars.
    • 50 Hz welder using welding pressures between 35 – 45 kg/daN, while automatic welders running between 40 – 50 kg / daN.
  7. The welded overlap must be correct, and on begin and end within allowed tolerance:
    • Correct welded overlap depending on z-bar:
      • Z-bar of 0.4 mm results in a welded overlap of 0.5 – 0.6 mm
      • Z-bar of 0.6 mm results in a welded overlap of 0.7 – 0.8 mm
      • Z-bar of 0.8 mm results in a welded overlap of 0.9 – 1.0 mm
    • If the overlap is not correct, adjust until overlap is correct:
      • Reset the calibration crown if needed with the mandrel. The diabolo-rollers should not have any radial-play!
      • Adjust the overlap according manual.
    • Once the overlap has been set, double check and set the can gap. Increasing the overlap will reduce the can gap, decreasing the overlap will increase the can gap.
    • Weld around 5 cans and measure the gap between the tin-layers. A good can gap measures between 1.5 – 3.0 mm. Any variation should be within 0.5 – 1.0 mm.
  8. The main weld current must be set correct!
    • How to do:
      • Reduce weld current until cold weld zones appear. Tear-off test must be done at an angle of 30 – 45°, means try to pull-off the top tin plate edge. To be done from each side. Note the weld current value!
      • Increase weld current until hot weld appears. Tear-off test must be done at an angle of 0°, means pull-off the seam only and find out when the seam starts to become fragile. Note the weld current value!
      • Add 2/3 of the weld current difference between cold and hot weld seam to the cold weld seam value, and start the production!
    • Set beginning and end time and beginning and end current!
    • Note: If the welder is running with triangle wave-form, make sure the duty-cycle is between 80 – 90%. If the welder is running with sine wave-form, make sure the right transformer step has been choosen! Contact us if you are not sure.
  9. The seam-extrusion inside and outside must be equal!
    • If the seam extrusion is bigger inside, reduce the height of the calibration crown. If the seam extrusion is bigger outside, increase the height of the calibration crown.
    • The shape or roundness of the can-body is not so important as a correct seam-extrusion!
    • The seam extrusion inside depend on the inner weld roll diameter as well: The diameter difference of upper and lower weld roll should be as small as possible.

If the welding phases are wrong, then the welding current is probably loaded only by one phase!

Phase L1 and L2 (yellow & orange > see Elec Scheme L1 must be used to supply:

  • 18/0/18 VAC transformer and electronic print type WEC
  • Thyristor and welding transformer

Yes, download the PDF document here

NOTE: There are two type of wire tension systems for the CM16:

  • CM16 – 300/400 has two pressure gauges.
  • CM16 – 200 works with one pressure gauge and a spring tension system.

Possible cause:

  1. Try to move the tension cylinder / cylinders by hand back and forward, without air pressure and wire.
  2. Try to turn lower welding roll (without wire) by hand.
  3. Check the groove of the upper welding disc.
  4. Is the wire width correct?
  5. Adjust the pressure of the tension cylinder(s), read for more info here! Cylinder below wire profiling unit requires 1.6 bar. Cylinder (behind main alu-plate) for wire chopper unit requires 2.0 – 2.4 bar.

Possible cause /checklist:

  • Check all terminals at the Pacemaker board.
    • wait for 5 minutes after switching off the unit
  • Check welding sensor (position/exchange).
  • Check the piece counter in the display. If more canbodies are counted, than there are physically – there is a problem with the welding sensor.
  • Check the welding pressure: Is S31 always „ON“ (LED green) / Display > 30.0 daN!
  • If the welding pressure is secured, you can bypass the signal with a trial jumper, see diagram page 2:
    • a) remove and insulate terminal 5 of the PM.
    • b) jumper terminal 1 > 5
      Do this only for the trial, need to be reversed afterwards!
  • Are the time settings t1 and t2 correct?
  • Is the weld power limiter switched „ON“? Which mode is chosen? Glueing?
  • If you can weld a canbody with only main current and the error occurs quiet often, you can try the following:
    • a) remove the welding sensor.
    • b) start production and cover the sensor by hand, as soon as canbodies are welded.
      Important: Switch “OFF” the sensor before you open the welding pressure!
  • Check if the wire has no dent’s (mechanical damage for example due to too big can gap).

Possible cause:

  • Check whether both pneumatic cylinders do have the correct air pressure:
    • a) Pneumatic cylinder for the profiling unit: 1.6 – 2.0 bar
    • b) Pneumatic cylinder for the wire chopper: 2.8 – 3.0 bar
  • Check whether sensor B1 and/or B2 touch the slant activation plate.
    • The sensor positions/heights are well adjusted, if the piston rod on each cylinder has about 10 – 15 mm remaining stroke left!
  • Exchange the sensors B1 and/or B2.
  • Exchange the standard I/O module of the frequency inverter U6 because the analogue input could be defective.
  • Check whether the plug or cable of B1 and/or B2 have any damage, or are not well connected to the frequency inverters.
  • Check whether, there is any error message on the frequency inverters U3, U4 and/or U6.
  • Check the mechanical play between both upper/lower brass guides (one for the profiling unit is mounted on the main alu-plate, the second is  mounted on the alu-plate above the rollformer) and the support of the idler wheels.
    • There must be a clearance of 0.3 – 0.5 mm on the whole stroke!
    • Use a feeler gauge to adjust the clearance.
  • Check the profiled copper wire width according manual.
    • If the width is unstable, the main bearings in the profiling unit might be damaged!
    • Take off the copper wire, and turn the motor through the fan impeller on top. If the bearings are broken you probably can feel it, or try to feel the bearing play, by moving the profiling rings up and down.
  • While the copper wire is off, check whether all idler wheels are turning well or not.
  • Check the clearance between both transport rings on the wire chopper according manual.
    • Basic setting: Clearance should have 50% of profiled copper wire width!

Possible cause:

  • Check your welder according check list Conical overlap / micro leaks
  • If your Pacemaker is programed to weld with sine wave (check the IBS), we can change to triangle wave form.
    • Please contact us for further instructions.

Possible cause:

  • Check the unprofiled copper wire in the drum: The copper might be already oxidized.
  • Is the welding current setting as usual, or is there any difference?
  • Check the water flow of the upper pendulum rollerhead, and also the lower welding roller.
  • Check the colour of the lower welding roller:
    • If the roller is yellow/blue/purple you should exchange the roller. There might be an internal defect. Send the roller to us including a correctly filled out performance sheet.
  • Run the welder after exchanging the roller and/or water flow check, and control, if there are any abnormal hot spots on the secondary circuit.

Important requirements:

  1. t2 must be always higher than t1 (t2 > t1).
  2. t2 and t1 must be set lower than 1 cycle time of the machine. For example, if the machine is running with 300 cans/min the cycle time is 200ms. Therefore, t2 and t1 must be set lower than 200ms.
  3. To do an overlap check set  “overlap check” to “ON”. The reduced current will be set automatically to 0A. In the same window you have an additional value. If you set this for example to 10ms you have more unwelded area at the beginning and end of can.NOTE: If you use “overlap check” function is not necessary to switch “Ired” to “ON”.


Possible problems, if the overlap function does not work!

  • If you can’t see the value t2 and t1, maybe the pacemaker is running with “Old” mode and not with “CMX” mode. Change in the setup “CT” from “Old” to “CMX”.
  • No input signal on input 4 (terminal 7 and 8 on pacemaker board). If machine is running, LED behind input 4 (clamp 7 and 8) must flashing. This is the cycle signal to start the timer t2 and t1 for the overlap check.

Remove all eight screws of the upper and lower unit. Then you can take off the front part and replace the profiling rings.



NOTE:
Be careful there are o-rings behind the front part.



In case you do not have the spare profiling rings, we recommend you to order the profiling disc complete, with carbide ring:

order no. 009904 (without cooling) order no. 011123 (with cooling)

depending on your configuration.

http://support.apple.com/kb/TS3281


Symptoms

Your iPhone, iPad, or iPod touch may occasionally stop responding to buttons, switches, or touchscreen input and may exhibit one or more of these symptoms:

  • Does not return to the Home screen after you press the Home button
  • Does not wake from sleep after you press the Sleep/Wake button
  • Does not turn on (or power on) when you press any button
  • Does not start up past Apple logo
  • Appears frozen or unresponsive
  • Is unable to “Slide to Unlock” or “Slide to Power Off”


Resolution

  1. If a single application is not responding or stops responding when it opens, you can force it to close.
  2. If the device is unresponsive or if certain controls aren’t working as expected, restart your device.
  3. If the device remains unresponsive or does not turn on (or power on), reset your device.
  4. If there is no video or if the screen remains black, verify that the device has enough charge to turn on:
    1. Ensure that the iPad is connected to the USB Power Adapter supplied with the device.
    2. Let charge for at least twenty minutes, then see if it starts normally.
    3. If there is no image on the screen, press the Sleep/Wake button to attempt to wake the device.
    4. If the screen displays a red battery icon, continue charging the device until the battery is fully charged.

Troubleshooting touchscreen response

http://support.apple.com/kb/ts1827


Symptoms

Use this article to troubleshoot the following Multi-Touch display (or touchscreen) response issues:

  • Multi-Touch display (or touchscreen) does not respond
  • Portions of the Multi-Touch display do not respond
  • Multi-Touch display is very slow to respond
  • Multi-Touch response is erratic

Resolution

If your device is experiencing any of the symptoms listed above, try the following steps:

  1. Restart your device
    • Hold the On/Off button until “slide to power off” appears. Slide to power off your device. When it is off, press the On/Off button to turn it back on.
    • If you can’t restart your device, reset it by pressing and holding the Sleep/Wake button and the Home button at the same time for a least ten seconds, until the Apple logo appears.
  2. Clean the screen with a soft, slightly damp, lint-free cloth.
  3. Avoid using the device while wearing gloves, with wet hands, or immediately after applying hand lotion.
  4. If you have a protective case, or if you are using a plastic sheet or film on the display, try removing them and testing the device without it.


Additional Information

Tip: To isolate an issue related to a portion of the Multi-Touch display, follow these steps:

  • Open the Maps application and double-tap each corner, then the center, to verify that it zooms in to each section.
  • If a specific area is affected in another application, note the location and try to verify touch functionality for that location in the Maps application.

Possible cause:

  • Sensor B62 damaged
  • Cable B62 damaged / wire break
  • Relay K33 damaged
  • Contacts 51 / 52 on contactor K1 damaged

Possible cause:

  • Wrong weld power limiter settings.
  • Tooling sensor B6 (sensor inside calibration crown) not adjusted well. Distance to can body to big.
  • Adapter cable between tooling sensor B6 and cable to control damaged / wire break.
  • Cable between adapter cable and control unit damaged / wire break.
  • Clamp nr.3 or clamp nr.5 on pacemaker electronic board not fixed well.
  • Welding pressure adjusted to low and pressure switch S31 do switch off current.
  • Upgrade over voltage protection for welding pressure switch not installed (Varistor on supply of S31). Voltage peak on 24Vdc can create short dropouts of S31.
  • Welding pressure switch S31 damaged.
  • Contact on welding pressure relay K19 damaged / in bad condition.
  • Contact on welding current on contactor K13 damaged / in bad condition.

Problem:

The waterflow LED is on during start up of production / The waterflow LED do switch off only if the button “production on” is pushed for a long time.


Possible cause:

  • Waterfilter dirty
  • Flowswitch dirty or damaged
  • Waterpressure switch dirty or damaged
  • To low water pressure => check the cooling unit / the filter on the cooling unit

Possible causes:

  • T-Z-bar broken
  • Z-bar cooling insufficient (if not existing on your welder, ask us for a upgrade kit)
  • Welding frequency too high (ask us for a Pacemaker upgrade: change from triangle to sine wave welding)
  • Not enough cooling water (check proper adjustment of water flow switches)
  • Cooling water too warm

Download PDF here

Possible cause:

The encoder signal for the production speed of the inverter U7 is coming from a external encoder mounted on the downstacker. On the shaft of this encoder there is a small white plastic gear wheel mounted. Please check the screw of this wheel, it might not be fixed well.

> See picture below to find the encoder.

Bildschirmfoto 2020-06-17 um 10.05.12.jpg

Possible cause:

  • U1 inverter feeder motor reach the adjusted current limit because sheet stack falls down/feeder crash. Remove sheet stack and check the mechanical adjustment of blank magazine and feeder.
  • U1 inverter current limit is set too low. Can be adjusted with parameter C022. Attention! Before you increase that limit check if the feeder can be turned by hand easily and mechanical condition is perfect.
  • For reset inverter switch off and on the machine.

This is a sample, where the synchronsation is too early. The blank hit the finger/dog of the body transport.



Here the synchronsation is too late. The blank came in alright, but the finger/dog came too early to do the start the transport.



Here a different angle of the damaged blank (late synchronisation).





How is the distance between the clutchring and the switch?
Trigger the clutch by hand and check if the red LED light comes on.



This is the LED, which should light up.



Try if you can hold the polygon shaft by hand tightly and trigger the clutch and therefore an immediate machine stop.



If you need to alter the torque of the clutch, do the following:



Loose both black screws of the guiding channel.



Pull the channel to the back of the machine.



Now you can see the clutch.



The basic setting should be 70 NM – see the red mark.



Loose the countersunk screw and take the screw out.



Turn the clutch clockwise with a special tool or a drift punch and a plastic hammer.



You can reduce or increase the torque by steps off 5 Nm, in order to fit the countersunk screw in.
(Picture shows a reduction to 50 Nm)



Now push back the channel back into the machine and tighten the black screws.

For further information find the Mayr clutch manual here:

Mayr EAS 450

Mayr Smartic 0-481-325

Copper wire change from 1.38 to 1.24:

  1. Before you change to the smaller copper wire, measure the wire elongation, main welding current and welding pressure and make a note.
  2. Make sure that the burrs on the tin-plates are well, try to minimize (damage of copper wire!).
  3. Leave both pressures on the air regulators (wire tension) as they are. 1.8 bar for the profiling unit, and 3 bar for the wire chopper.
  4. A new groove profile for welding rollers are necessary:
    Width 1.80mm, depth 0.30mm. We offer the correct regrooving tool!
  5. Profile of copper wire: 1.75 +0.02/ -0.02
  6. Reduce the distance (gap) between the transport rings of the wire chopper from 0.35 to 0.25mm.
  7. Check and adjust the nosepiece height with the delivered carbide gauge plate (in the black tool box)
  8. Measure the wire elongation after change to 1.24mm copper wire, main welding current, welding pressure and compare with results before! Wire elongation might be slightly greater, but within 2%, no problem.

Please check following points on your CM16 welder:

  • Adjust the tooling with the mandrel. All precalibration rollers have to touch the mandrel slightly.
  • The center of the calibrating crown (diabolo roller) has to be between 1.0 to 2.0mm behind the center of the lower welding roller! Please measure carefully.
  • Check the angularity of all 3 axes of the main calibrating tool plate.
  • Check the height of the front carbide Z-bar (nose- / headpiece). If it is too deep, then it could cause a different overlap.
  • Check the cutting tolerances of the tin plates according our specifications on our webpage.
  • Adjust the welding pressure on the precise air regulator to 2.8 – 3.0 bar.
  • Check the wire gap within 5 – 10 canbodies: The tolerance should not be higher then 1mm.
  • Control the tin layer on the upper and lower copper wire, it has to be in the center.
  • Rollforming has to be parallel, and the blank edges has to be around 5mm overbended.
  • Check the overtravel according the rule on the carriage.
  • Check whether the idler wheel in front of the lower welding roll is in correct position, or whether the circlip is missing (X-plane only)!

Operating Manual CM16 Maintenance Book

Click here

  1. Welding speed set too low. Cans are hitting other cans (tin mould?)
    • Remedy:
      • Recalculate correct speed (see manual CM16 / chapter 6.6). Set welding speed 2-3 m/min higher than calculated. If this then works get in touch with CANMAN.
  2. The guide tool is set too narrow.
    • Remedies:
      • Reset guide tool using the calibration arbor.
      • Check cuts.
  3. Upper inner transportation finger is brushing against the catch rail plate.
  4. Insert brace is brushing against the catch and guide channels.
  5. Synchronisation is not correct (see manual CM16 / chapter 7).
  6. Re-adjust the safety clutch slightly – ATTENTION: max. 10% higher!
    If the clutch is already adjusted beyond 100%, then it may possibly no
    longer engage correctly and is faulty (contact CM).
  7. Switch off the machine completely and turn the crank by hand. There must be no increased resistance at any point.
    • Remedies:
      • Lubrication
      • Loosen belt and turn once more (possibly a problem with the motor).
      • Dismantle the whole unit
      • Replace running roller
      • Replace shaft bearings

Possible cause:

  • With the spring loaded welding pressure system, the upper welding roll should be pushed down by the air pressure cylinder.  When the welding rollers are closed, the cylinder should be released and should not additionally pushing the spring. Because then the welding pressure will be too high.

Corretive:

  • Doublecheck the cylinder settings for the lift-up and the drop-down position of the welding roll. Adjust the setting, there might be a loose setting screw!

Replace the belt dogs:
Turn the polygon shaft until the belt dog is easy accessable from side of the machine.



Loose the two screws on each belt dog.



Then replace the belt dogs, be careful that belt dog, is correctly placed in the timing belt, as shown in the picture.



NOTE:
If you need to place the belt dogs, in a new location, due to a damaged belt area, make sure that the distance x is always the same around the entire belt loop.
Also make sure that inside and outside belt dogs are corresponding to each other!

Exchange the body transport belt



Turn the polygon shaft until a belt dog is inline with reference 3.



Take off the bracket (see picture),in the back of the front plate.



Then mount the screw loosely to side plate of the synchrostar unit.



Slide the slot of the bracket around the crank handle and tighten the screw.



Now you have to release the tension of the synchrostar belt, by loosing the M12 screw.



Then release the tension of the body transport belts. The white arrow shows you where you can release the tension of the outside belt. The inner belt has the same feature.



Untighten the two set screws.



Loose sligthly the three M8 screws (1) first, then undo the M8 screw sligthly too (2). Now you can release the clamping force by turning the M8 nut (3) a little bit.



Now, you should be able to move shaft to the front of the machine and to replace both body transport belts.

NOTE:
Do not loose any other screws, as for example the red marked ones in the picture.



After you have replaced the body transport belts, follow the above instruction in the reverse sequence.

NOTE:
When you push back the polygon shaft and clamp it, make sure that you keep a clearance of x=1mm as shown in the picture.

Scope of delivery:
1 – Insulation (over Z-bar) 2 – Insulation
3 – Cover insulation
4 – Z-bar
5 – Set of screws



Remove the guiding channel to side of the machine. Then remove the wire from the welding rolls and unlock the tooling plate and slide it to the front.



Remove the 8 screws (see arrows) from the welding arm.
Be aware that the screws at the inside are shorter than those at the outside. Do not loose the two o-rings in between.



Then undo the eight screws from the cover insulation. Get somebody to assist you to hold to welding arm (heavy).



Remove the Z-bar from the welding arm and clean the welding arm with a dry rag.

NOTE:
When you mount the new Z-bar with the insulation, make sure you put some grease on the surface of both insulations and align the Z-bar centered with the depth gauge to the welding arm.



IMPORTANT:
Put also some grease all around these insulated screws.



When you mount the welding arm, do also align the arm properly with the depth gauge to the window.



IMPORTANT:
When you mount the welding arm to machine, make sure you are using the shorter screws for the inside! Otherwise the ceramic guiding might get damaged. Do not forget the two o-rings!



We hope your replacement work was successful. Thank for your support!

Cause:

  • Check the clearance between bending wedge and upper rollformer shaft. The clearance might be bigger than 0.10 mm!

Corrective:

  • Undo on each side the two M5 (black flat head) screws, and turn the whole bending wedge support left and right, until you reach on both side the needed clearance. Lock the screws and double check the clearance with the feeler gauge. 0.05 is too small and 0.15 mm is too big, depending on the thickness range of tin plates of course.

This is the result of a wrong flexer setting!

Open the rollformer and you undo the screw on the right handside of the “Flexer”.

Measure with a ruler the actual position of the flexing wedge.

On the other side of the flexer, you can alter the position of flexer with the M8 screw. Choose a lower position for less flexing.

NOTE:
With more flexing the sheet comes out of the flexer station with less prebending.

If you do less flexing, means that the sheet comes out of the flexer station with more prebending.

NOTE:
After adjusting the flexer, you might have to adjust the rounding slighty!
For more information regarding the flexer and rollformer setting check our manual book 2 chapter 5.4.

1 or 2 (sender/receiver) sensors are fitted behind the first pair of rollers to recognize double sheets.



Sensor in the lower part.



A pneumatic cylinder operates the ejection flap.



The double sheets detected by the sensor are diverted into this channel by means of a switch point.



Setting the double sheet sensor
B30

The evaluation unit for the double sheet sensor is located in either the control box (illustration) or in the immediate vicinity of the rollformer, on the feeder side.



To set the sheet thickness, take a single sheet and lay it on the support rails in front of the first roller pair. You can also open the roll- former and lay a sheet into the rear area by hand. Then close the rollformer again.



Now turn the single sheet back and forward in the first roller pair by hand with the help of the belt.



The two green LEDs „Power“ and „Relay“ should now be lit up on the evaluation unit.



If the red LED „Double sheet“ is lit up, you must carry out a correction.



Turn the left-hand screw „Thickness Adjust“ clockwise until the red LED goes out and the green LED „Relay“ lights up. Add 1-2 additional turns in the clockwise direction.



Now carry out the same procedure with two sheets (double sheet).



The red LED „Double sheet“ should now be lit up.



The cylinder should now also be activated. It will be reset again when the sheets are removed.



Do not turn the right-hand screw „Delay adjust“; this is used for the delay of the cylinder stroke.

NOTE:
You will find further details in Book 5 OEM manuals on the CD.

Possible cause:

  1. Check the water filters:
    When Power ROLL is in use, there is a 50µm filter cartridge in a white body, normally placed on the delivered chiller.
    See also in the manual (chapter 7) how often the filter should be exchanged, and after what time the emulsion has to be exchanged!When mercury rollers are in use, there is a little 250µm filter mounted in the inlet of the water station. Open the filter and blow off the insert til the meshwork is clean.
  2. The water pressure on the water station must show minimum 5.0 bar!
  3. The flow meter of the lower welding roller must show minimum 5.0 l/min!
  4. Take off the water tube in the outlet of that cooling circuit, and measure how many liters emulsion/water is coming out per minute.  Compare that value with the adjusted value on the flow meter. The value of the water flow should be around 1 liter higher than the flow meter, or the flow meter should stay at least at 5 l/min.
  5. If less than 5 liters is coming out, do the following:
    Take off the X-Plane welding roller support completely, and check whether both round connections (center of rotation) between arm and X-Plane are correct positioned! If they are turned, means positioned wrong, they may reduce/close the water circulation between arm and welding roller!Put the X-Plane and welding roller back, and blow out the whole circuit by compressed air.Take off the water tube in the outlet of that cooling circuit, and measure how many liters emulsion/water is coming out per minute. Now the welding arm and roller should remain chilly again.
  6. Adjust now the flow meter to 5.0 l/min and start the production. If everything is correct, the production will not be stopped.
  7. Adjust now the flow meter to the max, means completely to the top, and try to start the production. There should occur an error message on the touch screen, showing that this cooling circuit has not enough water, and production can not being started.

NOTE: Only applicable for CMX8 with serial number until No.182 (with Linmot controller type E 1130 and E 2030)

Possible cause:

  • Cable break in motor cable or extension cable.
    • replace extension cable or replace motor with fixed cable.
      NOTE: Maintain minimum bending radius of 25mm for the cable!

Possible Cause:
The position of the infeed arm might have shifted, due to a crash or loose screws!

double check the correct position.



Therefore insert „0“ to the can height setting and press „GO“.

NOTE:
If you ever changed the overtravel setting in the tuning level, set this value to „1“.



Now measure the distance from the infeed arm to center of the welding roll.



The correct reading should be: 216 mm!

NOTE:
With this reading the canbody will have 1 mm overtravel.



Find the correct position by undoing the four fixing screws of the infeed arm!



NOTE:
This adjustment described above, is only applicable for the old type of CMX8, since the new version has a slot to prevent this issue.

Possible Causes & Resolutions:

  • No supply of a slave on the bus system.
    • Check supply of all slaves.
  • Address of slave on Profibus is wrongly adjusted.
    • Check the linmot controller. The correct setting you can find on the wiring diagram.
  • Wrong position of the switch for end resistant on the bus plug.
    • Check all switches on the complete bus system. Follow the cable seriously from PLC to last slave. First plug and plug of last slave must be set to ON, all other plugs to OFF.
  • Pacemaker™ settings lost because of empty ram battery
    • Replace battery. You can find more information here => Pacemaker – Support (canman.ch)
    • If the ram battery of the Pacemaker is empty and the settings are lost, the profibus communication may no longer start and also the analogue outputs, which control the speed for the wire drive and downstacker, are switched off (0Vdc).
    • After a battery change, the Pacemaker™ may have to be rebooted 3 – 4 times. To do this, disconnect Pacemaker™ from the mains and reconnect it (fuse breaker Q5 off and on again). Check the parameter settings before start the welding machine. If you have no access please open a ticket to get support => Can Man Support



Checklist:

  • Set the roll clearance to 30-50% of the sheet thickness.
    • refer to the manual.
  • Do you have red springs in use for the upper front roll?
    • reduce the spring tension and check the spring color.
  • Spring pressure too low:
    • Tension the red/black springs with 3 – 3.5 revolutions.
    • Check the roll clearance with a dial indicator.
  • Rollformer motor too weak?
    • Provide us with the nameplate and a photo of the motor.
  • Change the frequency inverter of the rollformer motor to 87Hz technique.
    • This is the new standard of the CM X8.
  • Do you have a two-piece catching plate around the lower welding arm (Rollformer 420/540)?
    • This helps to guide overrounded canbodies back into the Z-rail.
  • Have you mounted a inner mandrel in the canal (Rollformer 420/540)
    • This also helps to guide overrounded canbodies back into the Z-rail.
  • Catching canal: Is the interior measurement of the two shells corresponding to each other?
    • If the interior diameter is too big, too open-rounded canbodies might not be correctly conducted into the canal.
  • Catching canal:
    Does the canal flap works properly?

    • The flap might even touch the canbody, which is being welded. Only the a perfect adjusted flap fulfills their purpose.
  • Check the upper rollformer plate: Use a dial indicator to see, if there are back and forth or up and down movements.

Possible cause:

  • Problem with the touch panel data file, which is loaded on the memory card.
    • Exchange the memory card. Before CanMan will send you a new card, we will store your parameter (prior shipment of your X8).
  • The touch panel itself has a fault.
    • Exchange the touch panel.


NOTE:
 all timing settings are stored on the PLC and not on the memory card.

Possible Cause (CM16 / S, X8):

  1. Check air supply for the cylinder.
  2. Eject cylinder must push the canbodies inthe center, the can must move verticallyaway from eject cylinder.
  3. Second light barrier is always ON.Sensor dirty or bad adjustment.
    LED on light barrier must be ON without can, OFF if a can is detected.
  4. Control wiring of first and second light barrier according electrical diagram.
  5. Make sure the faulty can is really ejected, means does not touch the edge of the bin and jumps back.
    => Use a fixed channel underneath the eject station, instead of a mobile bin!

Adjustment of the light barrier distance to eject cylinder might be wrong.

Wrong adjustment of the transport belt speed.

NOTE:
The ejected can should whether touch the can before nor the following.

Eject pulse cylinder has to fit to production speed:

Recommendation: 150-200msfor<100cpm 100-150msfor100-200cpm

80-100msfor200-400cpm

Place a canbody between the second light barrier and check the LED „LD3“ on the eject print (inside the Pacemaker).
Must be „ON“.

The autoreset needs to be “OFF”. Therefore the can memory will not be reset automatically.

Check, if your hardware parameters are set correctly, according to one of the three layouts.
=> See layouts below!


Click here for more



Possible Cause (Pacemaker):

  1. Check air supply for the cylinder.
  2. Second light barrier is always ON.
    Sensor dirty or bad adjustment.
    LED on light barrier must be ON without can, OFF if a can is detected.
  3. Adjustment of the light barrier distance to eject cylinder might be wrong.

  4. Wrong adjustment of the transport belt speed.
  1. Take off the crown and mount the setting mandrel.
    If the mandrel does not fit, first move the accordant diabolo rollers a bit out of the crown center!
  2. Adjust now the top 2 diabolo rollers first.
  3. Reset the top diabolo roller first. Only the center of the diabolo roller must touch the mandrel!
  4. Now reset the other diabolo rollers. Only the center of the diabolo roller must touch the mandrel!
  5. Take care, that the clearance between all diabolo roller ends are equal.
  6. Make sure that the gap between both roller ends is as small as possible, with other words, move them towards the “welding center”.
  7. Make sure that all spring tensioned pre-calibration rollers are touching the mandrel and have a preload of about 0.2 – 0.5 mm!
    no gauge available except operators sense.
  8. The top pre-calibration rollers shall touch the mandrel or have a clearance of max. 0.5 mm!
  9. After you mounted the calibration crown back into the welder, make sure that the level of the crown is parallel to the bottom plate. Measure the distance left and right with a rule, and set the height left and right within 1 mm.

Read also this checklist here.

The center of the calibration crown (tooling) should be
X = 2 – 3 mm
behind the center of the pendulum roller head.



he screw with the lock nut has a red seal and must not be changed. This is used to fix the position on the longitudinal axis of the tool carrier with regard to the welding centre.



NOTE:
If you have to change the setting of the calibration crown, you have to loose the lock nut and adjust with the M10 screw accordingly.

  1. Clean the surface with a moist cloth. Check also for scratches or damages.
  2. Check if the frame presses on the touchscreen. The active surface is bigger than the screen. If necessary bring some clearance  between the frame and the touch.
  3. If you tip simultaneously on two spots, the touchscreen can block for a short period. Wait for a couple of seconds.

In it’s uppermost position, the sucker should lie slightly above the sheet inlet, between the first pair of rollers.



If the setting has to be changed, the screw on the setting ring will have to be loosened.



NOTE:
Further information regarding the exchange of sucker unit of the feeder can be found in Chapter 6. Changeover.



To perform a good timing, the best way is to disconnect the air hose of the cylinder and block it. In that way you can manually lift the sucker unit and find the correct timing.



If you move down the sucker unit to the blank, the vacuum will be activated. Then move up the unit together with the blank until the vacuum breaks.



The correct timing of “breaking” the vacuum is, when the blank just arrives between the roller pair.

In contrast to other machines, the roller head offset is fixed in machines of the
X- series and is therefore not adjustable.



If you have, due to whatever reason to adjust this setting, first make sure what the result of the offset is.



To adjust this offset, you have to loose the two M8 screws of the holder from the welding pressure cylinder.



Additionally you have to loose four M6 screws (1- two are shown), which are fixing the plate (2). Now you can shift the position of pendulum roller slightly in the various hole play.



NOTE:
Do not make any adjustments on this shaft!



Double-check the offset value again and tighten all screws securely.



The sensors B1 and B2, which are mounted to main machine plate, need to be readjusted.



Here you have another viewpoint of the two sensors.



The reason, why the wire is still running is, that a distance “x” in the picture is too big. Therefore reduce the clearance for both sensors B1 and B2 too a minimum of 0.1mm.

Download PDF here

This might be possible, because the triggering is inverse (this means with a minimal distance to the sensor, it results a max. frequency.

  • Check the distance of the analog sensor (description).
  • If this doesn’t help, place the programming display on the converter U6 and change the parameter C26 from –50% to –55%.

NOTE:
The positions of the screws for the sensors B19, B24 and B78 have been set in the factory, and should not be adjusted. If something has changed nevertheless, you should follow the detailed description below.



B19

Three sensors are located on the right near the feeder drive M8.
Sensor B19 (left) controls the vacuum valve of the suction beam.





After „breaking“ the vacuum, the position of the screwhead for the sensor B19 must be active. Therefore the position should be chosen between „breaking“ the vacuum and the lowest position of the sucker unit while traveling down.





B19

The correct setting for B19 – active, should give you distance of approx. 25mm from center of the hole to the block.



B24

A hexagonal screwhead activates the sensor B24 (center), which then opens the channel flap.
NOTE:
The opening time of the channel flap, can be
extended through software (see Chapter 4.5.2. in Book 1)





B78

A hexagonal screw activates the sensor B78 (right), which provides the timing for the feeder (synchronization)!

NOTE:
This signal comes from the PLC in the elevating platform version, so no B78 is used in such an application.





The „active“position of the screwhead for the sensor B78, can vary depending on the rollforming speed.





B24 B78

The signal of B78, always follows the signal of B24, that means that the flap must be closed (B24), before the body pusher starts (B78). The distance, resp. the angle between the two screwheads is fix (at approx. 25 – 45°).





B19 B24 B78

The correlation of the three screwheads. View from toward the electrical cabinet. This setting is based on:
Can diameter 66 – 99mm

120 cans/min

Rollformer speed of 190m/min (49.5Hz)





With a higher rollforming speed, or if the blanc feeding is too late, or you get a damaged blank beginning, you have to move both screwheads slightly clockwise.





With a lower the speed of the rollformer and jams the blanks from the backtravelling body pusher, you have to move anticlockwise.





NOTE:
Make sure that the “activator” screws are tightened and locked and not touching the sensors.



NOTE:
A wrong setting of one of the sensors (B19/B24/B79) will not show a direct related error message.
An incorrect setting of B19 will cause destacking problems and the incorrect setting of B24 & B79 will cause synchronization problems.



Possible cause:

  1. Machine control is not „ON“
    (help: key „wire drive manual“ is shown dashed in the display)
  2. The analog sensors (B1 & B2) are not properly adjusted. See the following description.
  3. Pendulum head turns, but the copper wire has slippage:
    • increase the wire tension for the chopper unit by 0.2 bar (min. 2.0 – max. 2.5bar)
    • groove worn out, recess the welding disc.
  4.  Converter U4 defect.

Possible cause:

This can only happen on higher can heights. The canbody to be welded, is extending with its back into the rollforming area, while the next tin plate is coming out of rollformer and touches the backside of the tin plate. The sharp edge of the rollforming plate scratches paint away. This paint is being welded thereafter in the seam.

 Correction:

  1. Reduce the Linmot cycle time, but not less than 500 ms (access with password customer 1). The can is now pushed faster into the welding area. This might already solve the problem.
  2. Adjust the timing of the feeder delay and compare to Linmot pusher (see manual book 1, chapter 4.5.3.)
  3. Increase rollformer speed if necessary, to reduce the rollforming process, because of delayed feeder.
  4. Try step 2 and 3 til ok.

Corretive:

  • Replace water filter or increase water inlet pressure (min. 5 bar at the inlet).
  • Check / adjust water pressure switch; see picture below: manometer (1) / pressure switch (2).

WARNING: Do not adjust pressure switch unless synchronized / confirmed with / from Can Man!

Corretive:

  • Delay off time drives has to be increased (access over spanner symbol, key symbol, customer password, key symbol, time settings, drives off delay).
  • Check the overlap in the end, maybe overlap is too small, and it looks like not welded.
  • Also possible: time “jam in weld section” (longest canbody?) did stop the welder, error message should appear in the touch screen!
    contact Can Man.

Problem:

Error message: “Jam canbody transport”

Possible Causes & Resolutions:

  • Calibration crown: Possibly is adjusted too close (too much overlap). This can cause a high resistance. Readjust according manual.
  • Slider condition: Switch of machine and move the slider by hand. It must move smoothly. Since the slider of the linear motor contains strong magnets, remove dust or small metallic particles from the slider (see picture beside). To do this, remove the front cover.
  • Wrong adjustment of curve time: Curve time means the duration for one complete move of linear motor. It must be shorter then one machine cycle! Example: Production speed => 120cpm => Machine cycle 500ms => curve time must be lower then 500ms.
  • Enable signal of plc lost (Error message Linmot controller “User Err:Motion Cmd in Wrong St.“): Check wiring between PLC module and Linmot controller. Check PLC module. Clean the contact surfaces between the PLC modules with contact spray.

Additionally checkpoints for X8 with air cylinder downstacker

  • Function of the valve Y1 for downstacker: Watch the LED on the valve for consitent timing / on – off switching. If inconsitent, please check output on PLC (Vipa output A4.6, Beckhoff output BA117 1/9), wiring and plug to valve or replace solenoid or entire valve.
  • Cylinder condition: Possibly is worn, therefore check for are air leaks in both positions and to much backlash between piston rod and cylinder body. Removing air hoses (or air pressure) and move the piston in and out (up and down) manually.


NOTE:
 If you did remove the bracing, reassemble correctly. Check the insulation and tighten the self-locking nut only slightly, that the connection can adjust itself.







Possible cause:

  • Wrong direction of rotation of the vacuum pump motor (only when machine has been disconnected from the power).
    • change phases
  • Clogged filter of the vacuum pump (or in the vacuum hose / tube).
    • replace it
  • Clogged bores in the sucker cups.
    • clean it
  • Worn sucker cups.
    • change sucker cups
  • Wrong vertical adjustment of the sucker bar.
    • see manual of welder (chapter 5.3) and learn how to adjust sucker bar upper position
  • Badly cutted blanks with lots of burrs.
    • grind / adjust cutters of slitter
  • Clogged vacuum valve.
    • clean it (see here) or replace valve (CM article No. 005925)
  • LED not “ON” when production “ON”.
    • refer to the electrical manual
  • Too tight adjustment of the blank magazine.
    • see manual of welder (chapter 5.3.) and learn how to set blank magazine correctly
  • Worn sucker rod or worn seals/bearing in the vacuum housing.
    • replace it

NOTE: Only applicable for the model X8-350!

Download PDF here

Possible cause:

  • Maintain the calibration crown according to the manual (Book 2; chapter 5.5.4.)
    Important: All precalibration rollers must turn smoothly, not one should be blocked.
  • Reset the calibration crown according Resetting of the tooling
  • Guideline: The higher the production speed, the more difficult to control body offset issues!
  • Tin deposit on z-bar grooves
  • Rollforming not enough

Special settings:

  • The setting of the first, second and probably third spring tensioned rollers before the diabolo roller crown may vary in setting.
  • Basic setting – first, second and – depend on can height – also third rollers should have 0.10 mm movement.
  • If the body offset still remain, start to undo all the nuts of the first pre-calibration rollers by a sixth turn, and so on.
  • Check whether the Z-bar grooves are clean or full of tin/steel pick up:
    • If the grooves are full, clean them by sandpaper 400 or higher. For better cleaning take off the lower welding arm completely. Switch off the chiller before start to dismantle!
    • Check the insulation according manual – How to do an insulation check (yearly task)?
    • Check whether the secondary circuit – lower arm side – is connected to ground by a separate green/yellow cable!

Download PDF here

Download PDF here

Possible cause:

  • The setting of the magazine is wrong
  • The separating air is not correctly set, or the air pressure is too low
  • Too much tin plates – especially on can heights over 200 mm:
    • in the magazine, the weight is too high!
  • Tin plates have too much burrs
  • Suckers are worn
  • Sucker height too low
  • Linmot slider is not well positioned:
    • Pusher plate must stay around 2 mm behind the tin plates
  • No signal of tool sensor B6:
    • Maybe gap between can body and sensor to big?
    • Maybe wire break and no signal on plc/pacemaker. Check cable and plug!
  1. Try to move the tension cylinder / cylinders by hand back and forward, without air pressure and wire.
  2. Try to turn lower welding roll (without wire) by hand.
  3. Check the groove of the upper welding disc.
  4. Is the wire width correct?
  5. Adjust the pressure of the tension cylinders: Cylinder below wire profiling unit requires 1.6 bar. Cylinder (behind main alu-plate) for wire chopper unit requires 2.0 – 2.4 bar.
  • Take off the upper rollformer shaft / bending wedge unit completely. Release first both spring pressures completely!
  • Change the bending wedge, take care that the roller is not falling by mistake onto carbide wedge! Put a rag between.
  • Change the support bearings below lower rollformer roller first if damaged!
    • Important: Left and right of both bearings a shim of ø 8/14 x 0.5 mm is needed, to avoid that outside rings of bearings are touching lateraly on the hardened support and becoming hot!
  • Control whether the little shaft (into the needle bearings of lower rollformer shaft) in the right side plate is really fixed well or not.
  • Mount the lower rollformer roller completely, and measure the clearance between roller and bearing: 0.02 – 0.05 mm.
    • Important: If no clearance can be measured, take off the hardened support with bearings, and grind the lower side slighty until above mentioned clearance 0.02 – 0.05 mm has been reached.
  • Mount the upper rollformer shaft / bending wedge unit back (use only bores in the middle!), and move the bending wedge about two turns up. Avoid that the wedge touches the lower shaft after closing the rollformer! Don’t tighten spring pressure yet!
  • Close the rollformer, and hold left and right a feeler gauge 0.10 mm between both rollers. Close the rollformer slowly step by step. Take care that bending wedge will not touch lower roller!
  • Reset the height of upper roller until you can move out both feeler gauges easily. Now open rollformer and measure the clearance between bending wedge and roller. It should min. 0.3 mm.
  • Double check ones more whether a proper clearance between lower roller and bending wedge is there.
  • Close the rollformer completely and reset spring pressure and set roller clearance correctly.
  • Now the rollformer is ready for first rollforming trials.

The damaged/bended corner is touching first the inner catch rail.

The inner catch rail looks like a hook and will be found underneath the lower rollformer shaft on the catch station.

By changing the horizontal level of the catch channel slightly, the roll-forming direction of the tin plate will be changed/affected, and the whole tin plate edge should touch the catch rail equally.

  1. Measure the inner left and right distance between the hard-chromed guidance channel and internal hard-chromed guide-shell (around lower rollformer shaft). The left/right measures are most probably not equal.
  2. Try to correct one of the distance until both measures are equal. If you are not sure how to correct, feel free to contact us via the online support system.

Report all steps, new or different settings, and old and new production parameters (can size, cpm, weld speed, weld current, weld frequency, current wave-form and transformer step) for an easier overview and follow-up ! (www.canman.ch /Open new ticket and add your document)

Note on which tin-plate parameters (thickness, hardness, tin coating inside / outside, rolling direction, BA or CA, supplier, printed or not) such faults occur, and on which tin-plates not !

Basic parameters & settings to be checked first

  1. Tin-plates must be cutted within the allowed tolerances:
    • Measure the tin-plates and report if out of tolerance!
    • Follow sheet „blank-cutting tolerances“! (www.canman.ch/SUPPORT/Canmaking/002)
    • Are all tin-plate parameter clear and noted: Thickness, hardness, tin coating in- and outside, rolling direction, BA or CA, supplier, printed or not
  2. Can-bodies must be correctly rollformed:
    • Not conical and best roundness must be reached!
    • Overlap of both tin-plates edges:
      • ø 52 ~ 5 mm
      • ø 99 ~ 15 mm
      • ø 153 ~ 30 mm
      • ø 284 ~ 60 mm
  3. The copper wire must be correctly profiled and the surface not damaged:
    • The width of the profiled copper wire shall always be 0.05 mm smaller than the profile-groove in the weld rollers!
    • Measure the width of the profiled copper wire within around half a meter on several position, and note the variations. Maximum difference of 0.05 mm is allowed. If you measure more, check the concentricity of the profiling rings.
    • Change the copper wire profiling rings or idler/guide wheels if the surface of the copper wire shows a damage.
  4. Both weld rolls must be regrooved after its regular groove life-span:
    • To avoid unexpected heavy weld faults, it is recommended to implement the total piece-counter and the regrooving interval into the production order!
    • As an example:
      • Upper weld disc ø 90 mm to be regrooved after 3 mio cans (interval depends on, type of welder, type of weld roll and welding speed).
      • Lower weld roll ø 62 mm to be regrooved after 2 mio cans.
      • Example: Total piece counter at production start at 28 mio welded can bodies, upper weld disc has been regrooved at 25 mio, therefore to be regrooved now! Lower weld roll regrooved at 27.5 mio, therefore to be regrooved at 29.5 mio.
    • After every regrooving, weld roll and / or z-bar must be repositioned: Use the correct tools to reset the lower weld roll and/or nose-piece, and the upper welding roller!
  5. The z-bar must be clean in and outside – and not worn -, calibration crown must be clean, and all pre-calibration rollers shall turn easily:
    • A dirty z-bar may not be well insulated, therefore the risk of wear is higher and the weld current is flowing over z-bar and tin-plate to the weld center!
    • Note: The insulation of the secondary circuit should be controlled yearly!
    • Non-turning pre-calibration rollers can create body-offset and inconstant can gap!
  6. The calibration crown center must be correctly positioned to the weld center:
    • The center of the crown must stay between 3 – 0.5 mm before the center of the lower weld roll (in weld direction seen).
  7. The position and speed of the exit conveyor (all conveyors which transport the can body out of the weld center) must be aligned perfectly.
    • Both belts of any V-Shape conveyor need to have a gap of 0.3 – 0.5 mm to the can body. If available use a setting mandrel instead of a can body. The alignment of the conveyor must be absolutely parallel to the weld direction!
    • The gap between two can bodies on the exit conveyor should not be higher than10 – 20 mm! (if can gap is 1.0 – 3.0; see „can gap“ in point 12.)
    • A driven diabolo roller / bottom conveyor after the diabolo rollers must run the same speed like the copper wire!
  8. Both tin-layers must be centered and parallel to the copper wire:
    • That means that all mechanical settings are correct!
  9. The copper wire tension and elongation must be correct:
    • Make sure that the air-pressures for the pneumatical cylinders are set correctly, or the copper wire is in the right groove of the wire drive disc (Soudronic m/c’s only).
    • Measure the copper wire elongation after the lower weld roll, or after the weld roll before the wire chopper: Elongation varies under normal conditions between 0 – 4 % of the can body height.
    • A sufficient copper wire tension is important to avoid a slipping copper wire on the weld rolls!
  10. The can body overtravel must fit:
    • Set the overtravel according manual / scale on the transport carriage!
    • Measure how many mm the can body will be pushed over the center of the weld rolls.
  11. The welding pressure must be set correctly:
    • Welding pressure for Wima welders vary between 35 and 50 kg / daN. Start with ~ 45 kg / daN (if needed check the manual to convert in bar).
    • 50 Hz Wima welders using welding pressure between 35 – 50 kg/daN as well.
  12. The welded overlap must be correct, and on beginning and end within allowed tolerances:
    • Correct welded overlap depending on z-bar:
      • Z-bar of 0.3 mm results in a welded overlap of 0.4 – 0.5 mm
      • Z-bar of 0.4 mm results in a welded overlap of 0.5 – 0.6 mm
      • Z-bar of 0.6 mm results in a welded overlap of 0.6 – 0.7 mm
      • Z-bar of 0.8 mm results in a welded overlap of 0.8 – 0.9 mm
    • If the overlap is not correct, adjust until overlap is correct:
      • Reset the calibration crown if needed with the mandrel. The diabolo-rollers should not have any radial-play!
      • Adjust the overlap according manual.
    • Once the overlap has been set, double check and set the can gap. Increasing the overlap will reduce the can gap, decreasing the overlap will increase the can gap.
    • Weld around 5 cans and measure the gap between the tin-layers. A good can gap measures between 1.0 – 3.0 mm (depending on the can body format). Any variation should be within 0 – 1.0 mm.
  13. The weld current frequency must fit:
    • Welders with a static frequency inverter should have a welding spot length between 0.6 – 1.2 mm.
    • A welder without static frequency inverter should be operated between 8 – 12 m/min. Reducing the welding speed does decrease the welding spot length.
    • The welding spot length should always be as long as possible (by reducing the frequency) to reduce energy and heat in the welding seam and in the welder to a minimum.
    • Main target must be a flexible and smooth welding seam!
  14. The main weld current must be set correctly!
    • How to do:
      • Reduce weld current until cold weld zones appear. Tear-off test must be done at an angle of 30 – 45°, means try to pull-off the top tin plate edge. To be done from each side. Note the weld current value!
      • Increase weld current until hot weld appears. Tear-off test must be done at an angle of 0°, means pull-off the seam only and find out when the seam starts to become fragile. Note the weld current value!
      • Add 2/3 of the weld current difference between cold and hot weld seam to the cold weld seam value, and start the production!
    • Set beginning and end time and beginning and end current!
    • Note: If the welder is running with triangle wave-form, make sure the duty-cycle is between 80 – 90 %. If the welder is running with sine wave-form, make sure the right transformer step has been choosen! Contact us if you are not sure.
  15. The seam-extrusion inside and outside must be equal!
    • If the seam extrusion is bigger inside, reduce the height of the calibration crown. If the seam extrusion is bigger outside, increase the height of the calibration crown.



Checklist to Avoid Micro Leaks

Micro leaks can occur within the seam and beside the seam – especially on cold-formed areas like necking, beading, flanging or seaming -, even if all above mentioned basic parameters & settings seems to be correct.

Micro leaks can have various sources: Wrong settings on the welder, tin-plate parameters which support such faults, worn or wrong machineries in the downline, or tin-plate parameters which do not fit to beader, necker, flanger and seamer.

For a better visual understanding put the faulty-can bodies in a water bath, and inspect the leaking area by a microscope. Store the pictures if possible!

  1. Make sure that necker, flanger, beader and seamer are in good condition, and do not stress the weld seam more than needed.
    • For further information check the manuals (check the tin-plate specifications range) or contact the supplier!
  2. Try to weld different tin-plates to understand which tin-plate parameter can be produced without such faults.
    • Rolling-direction parallel to weld seam can increase the occurrence of micro-leaks!
  3. Micro-leaks in and near the seam can be reduced by changing the energy in each welding spot:
    • Reduce the welding frequency within the possible range (see point 13. in above checklist), and set the main weld current again (see point 14. in above checklist). The production cycle (cpm) must probably be reduced to reach a good weld seam. Produce a certain number of cans and test them.
    • Increase the welding frequency within the possible range, and set the current again. Produce a certain number of cans and test them.
    • Reduce the welding pressure to max 45 kg / daN, and set the main weld current again (see point 14. in above checklist). Produce a certain number of cans and test them.
    • Reduce the welded overlap by around 0.10 mm, and set the main weld current (see point 14. in above checklist). Produce a certain number of cans and test them.



Checklist to Avoid Flange-Cracks

Flange cracks can occur at the beginning and the end of the seam, even if all above mentioned basic parameters & settings seems to be correct.

Flange cracks can have various sources: Wrong settings on the welder, tin-plate parameters – for instant parallel rolling direction – which support such faults, worn or wrong flanger in the downline, or tin-plate parameters which do not fit to the flanger and or seamer.

For a better visual understanding put the faulty-can bodies in a water bath, and inspect the leaking area by a microscope. Store the pictures if possible!

  1. Make sure that flanger and seamer are in good condition, and do not stress the weld seam more than needed:
    • For further information check the manuals (check the tin-plate specifications range) or contact the supplier!
  2. Try to weld different tin-plates to understand which tin-plate parameter can be produced without such faults:
    • Rolling-direction parallel to weld seam will increase flange cracks, because the seam cracks in line with the rolling direction!
    • Weld tin-plates with cross rolling direction and test them.
  3. Flange cracks can be reduced by changing the energy in each welding spot:
    • Reduce the welding frequency within the possible range (see point 13. in above checklist), and set the main weld current again (see point 14. in above checklist). The production cycle (cpm) must probably be reduced to reach a good weld seam. Produce a certain number of cans and test them.
    • Increase the welding frequency within the possible range, and set the current again. Produce a certain number of cans and test them.
    • Reduce the welding pressure to max 45 kg / daN, and set the main weld current again (see point 14. in above checklist). Produce a certain number of cans and test them.
    • Reduce the welded overlap by around 0.10 mm, and set the main weld current (see point 14. in above checklist). Produce a certain number of cans and test them.
    • Activate the current reduction on the begin and end to reduce the heat in the first few welding spots.
  4. If above listed does not help, some theoretically wrong settings could help:
    • Increase the can gap to have completely different welded begin and end. Produce a certain number of cans and test them, and set back if it didn’t help!
    • Set a slight can-body offset, to bring the current different into the tin-plate. Produce a certain number of cans and test them, and set back if it didn’t help!
  • Empty the water tank. On 2-circuit cooling unit only cold water tank has to be emptied.
  • Blow off one by one each cooling circuit in the welder. This allows to empty each circuit separately. If your welder has a 2-circuit cooling system only the circuit for the lower and upper weld roll has to be emptied.
  • Change the filter cartridge and clean the filter housing inside.
  • Fill the tank with water only, open main valve Y14, and run the system for at least one hour to flush rests of old emulsion out.
  • Empty the water tank again and clean again if necessary.
  • Fill the water tank with water (or distilled water if requested), and mix the PowerRoll™ coolant H1 in with 8 percent.

We recommend following maintenance procedures:

  • Change the filter cartridge monthly.
  • Change the cooling emulsion yearly. Use the PowerRoll™ cooling system cleaner at any time you change the emulsion.
  • Use the PowerRoll™ cooling system decalcer after around 5 years.

Order numbers:

  • PowerRoll™ coolant H1 (food grade), 7 Liter, 011494
  • PowerRoll™ cooling system cleaner H1 (food grade), 10 Liter, 011495
  • PowerRoll™ cooling system decalcer, 25 kg, 011496
  • Filter cartridge 50 µm, 002446

Safety data sheets see below:

The error occures when there is a problem with the measurement of the wire speed (not wire speed by self).

  • Check the gap between idler wheel and sensor, 1mm is recommended!
  • Check the bearings of the idler wheel! Is turning smoothly? To much play can create an unstable gap to the sensor.
  • Check cable between sensor and plc!

If there is still a problem with the measurement of wire speed, you can proceed as follows to restart production:

  1. Push the “Key button” on home screen
  2. Login with your password ****
  3. Push again the “Key button” to reach the setting window
  4. There you can find a second “Key button”. Push that button to reach the main setting window.
  5. There you can find on right top position a button “Wire speed control”
  6. Switch this funktion to ”OFF”

Please note: The workaround described above is not recommended for permanent production!

  • Check first whether the conveyor / elevator unit is blocked somewhere!
  • Check the 24 VDC fuse according electrical diagram. Make sure that the correct size will be used!
  • Check the setting of the respective sensor (according electrical diagram), which allows the conveyor to move if the sensor is active / free!
  • Take the 24 VDC motor out, and check whether the motor is defective or not! Make sure that the conveyor is not moving downwards as soon as the mechanical connection between motor and elevator unit has been released!

P03 = positioning countering error

Possible causes:

  • Resolver on the backside of the bodytransport motor is damaged.
    • Check if the bearings are worn out!
  • Resolver is not fixed well on the shaft.
    • Fix it!
  • Wire break in the cable between resolver and servo controller.
    • Check the cable!

Possible cause:

Possible cause/checklist:

  1. Position Linmot pusher plate:
    Must be 1 mm behind tin plate edge!
  2. Adjust roller clearance on all 7 pairs according manual.
  3. First roller pair:
    If you can’t get 0.1 mm roll clearance, check the toothed gears inside/outside. They may have a wrong lateral position; that ends in a too big clearance between the shafts!
  4. Test after setting:
    Take off main and inner timing belt, rollers touching each other, all gears must have slight play!
  5. Check and adjust a well rollformed canbody:
    Form of canbody must be round, both edges must have a parallel overlap, depending on the diameter!
    – Diameter 52 mm = approx. 5 mm
    – Diameter 99 mm = approx. 20 mm
  6. Check the feeder angle and rollformer speed according the recipe of the canbody you are currently running.
    NOTE: «If parameter is different from recipe, it has been changed without authorization of Can Man! Any guarantee claims will be refused!»
  7. Check the curve you have in the tuning window with the recipe of the canbody you are currently running.
    NOTE: «If parameter is different from recipe, it has been changed without authorization of Can Man! Any guarantee claims will be refused!»
  8. Make sure you have mounted the correct pair of final pusher fingers (see the diameter range engraved on the fingers).
  9. Check the actual overtravel with the help of the manual.

The recipe helps to adapt the speed of the incoming can into welding roller and the actual welding speed. In the best case, those speeds are equal.

Below you find a table of this recipe in steps of 10 mm can height.

Turn the wheel of the synchrostar, that the pusher finger is as close as possible to the welding roll.

Measure now the distance from the top of the pusher finger to the center of the welding roll.

Distance = Can height – Overtravel Example:
Canheight: 122mm Overtravel: 4.8 mm

Distance: 117.2 mm

Possible cause:

This problem occurs, if the main switch of machine is turned on, but the machine is not running production for a longer period. The cooling plate of servo drive is heating up, because the water valve is turned off during this time, to prevent condensation water.

Turn off the main switch, if you don’t run the machine for a longer time.
To get rid off the error with overtemp. servo drives you can go to the „Tuning page“. Press the button to switch on the main valve for the cooling system manually. Keep this button pressed for a few minutes, the system will cool down and you can start the machine normally. If you close the “Tuning page”, the main valve is switching back to automatic mode, controlled by „Production ON/OFF“.

Possible cause:

  • Drives for the height change magazin and infeed system are active and stopped before reaching the position – overcurrent active.
    • Go to the mask for height change, push the reset button and the start button. The drives must reach the position without overcurrent message. If the error comes again, check the free movement of mechanical system.
  • If “SF” and “BF” on the PLC are “Red”, some drives on profibus are missing (no connection of height change position drive to profibus).
    • Check Fuse F6/F7!
    • End resistant of all profibus plugs must be “OFF”, only first and last plug “ON”.
    • Open the profibus plug on height change positioning drives, then open and close again the connectors!
    • Check the profibus cables!
    • Check the profibus module for damages or bad contacts!

Possible cause:

  • Check the wire groove, maybe the profil is not straight anymore (see also if short near the seam).
  • Too much welding current.
  • Too low welding frequency.
  • Check the tension the belt for the profiling unit and pendulum rollerhead.
  • Servo drive transport belt: Check if the whole transport belt  unit is vibrating during positioning. If yes: Change the drive gear on top the servo motor.

Possible cause:

  • Since the slider of the linear motor contains strong magnets, remove dust or small particles from slider with a disposable paper.
  • Make sure that you have a clearance of 0.1 – 0.2 mm between the pusher plate and the vacuum plate.



Maintenance, cleaning and insulation check (can be used in general for any welder)

Procedure:

  • Recommended to be done when the main Z-bar has to be changed anyway
  • Time to do: 4 – 8 hours for 1 person
  •   Turn the main switch off, make sure the water cooling unit is also off!
  •   Take off the copper wire completely.
  •   Take off internal side seam tubes or internal oxyde tube.

 Tubes have to be insulated in the area of rollformer, to avoid any contact to the ground.

(In the area of the lower welding arm is a simple insulation not possible).
− Take off the grounding cable from the lower copper plate going to the welding transformer

    (Do not forget to place back after you finish).
− Clean the whole secondary circuit as good as possible by rag and compressed air.
 Blow from rollformer side towards overhead exit conveyor, to protect the bearings in the rollformer.

  •   Take off the lower welding arm.
  •   Dismount the main Z-bar including front nosepiece.
  •   Clean both Z-bars, the Z-bar slot in the arm carefully, without using grinding paper, to avoid increasing theinternal width!
  •   Check internal/external full ceramic cross bars for damages, no need to take them off, if they are ok.
  •   Clean the contact surface between arm and the copper plate going to the welding transformer with grindingpaper 400.
  • Use a little flat plate and fold the grinding paper around.
  • Not a must but recommended: Lubricate one of the contact surfaces slightly by copper grease(to avoid humidity in between. If you decide to do, do it on all other contacts)
  • Check the O-Ring (to be done also on all following ones)

− Mount the Z-bar back into the arm and measure the insulation by Ohm-meter > 10 Mega Ohm!

  • We recommend to use a special heat compound to guarantee a better heat transfer from the Z-bar to thewater cooled welding arm!
  • We recommend to use new insulation washers (recommended also on all others).
  •   Check the little yellow full ceramic idler wheel in front of the lower welding roller, make sure screws/nutsare locked, and the circlip is not missing!
  •   Clean also the upper slot in the upper power plate.
  •   Take off the top copper plate between welding transformer and upper power plate (support of the lowerwelding arm). Clean the plate and the brown insulation plate (take care, can easily be broken).
  •   Clean all areas around the upper power plate, especially the area between power plate and copper plategoing to the welding transformer. This area is difficult to reach, when the lower arm is build in.
  •   Clean both areas between upper power plate and the main alumimium plate (devided by two brown

insulation plates).

  •   Clean the area around the big copper plate (going around the shaft of the upper pendulum rollerhead).
  •   Check following insulations (Ohm-meter > 10 Mega Ohm): Each idler wheel to the aluminium plate.

− Check also every bearing. Attention: Most of them have ceramic balls, marked by a red point!

  •   Each body of the copper profiling unit to the aluminium plate.
  •   The body of the big cooling wheel to the aluminium plate.
  •   The twin idler wheels (between rollformer and upper power plate) between itself but also to the aluminiumplate.
  •   Both transport rings, cutting wheel and pressing bearing/ roll of the wire chopper to the aluminium plate(clean up before may be helpful).
  •   The upper power plate to the main aluminium plate.
  •   The front support of the pendulum rollerhead to the aluminium plate.
  •   The welding pressure cylinder to the supporting plate.
  •   The main aluminium plate to the machine frame.
  •   The pendulum rollerhead to the machine frame.
  •   Calibration crown: Clean the calibration crown first.
  •   Each diabolo roller to the main brass plate.
  •   Support of guidance channel/calibration crown:
  •   Take off the whole canbody guidance including the long aluminium supporting plate (T-shape).
  •   Clean the whole area.
  •   Check the insulation between the long steel guide plate and its supports mounted to the frame:Three brown insulation plates underneath the long steel guide plate.
    Two separate brown insulation plates underneath a long steel bar (30/60 x 40 x 400 mm), to be found on the machine frame, in the area below the calibration crown.
  •   Put now back all parts.

 Make sure you are using only stainless steel screws and washers and lubricate the threads again!

Possible cause:

  1. Take out the bottom gear inside.
  2. Take out both gears outside (motor side).
  3. Adjust the inlet shaft clearance 0.10 mm.
  4. Mount both gears outside again.
  5. Move the upper gear outside laterally, till you feel a play between the teeth of both gears!
  6. Don’t mount the bottom gear inside anymore, you don’t need it!
  7. Lubricate the gears outside with a special gear lubricant (can be ordered from Can Man / article No. 006950).

Possible cause:

  • Check the air pressure on the small air regulator, the value must be around 0.5bar (pressure to engage the clutch).
    • refer also to the touch screen “Air” symbol, where you find the exact values.
  • Check the air pressure on the precision air regulator, left side from synchrostar motor, to 1.6 to 2.0 bar (pressure to disengage the clutch)
    • refer again to the touch screen “Air” symbol.
  • Check whether the safety clutch is engaged or not: Turn the synchrostar by hand, and see whether the motor is also turning or not. If yes, the clutch is engaged!
  • If the clutch is engaged, but the error message still remains, the sensor B69 might wrong positioned:
    • Check if the LED from the sensor is OFF.
    • If the LED is still ON, turn the sensor a quarter turn counterclockwise, or until the LED is OFF. Do not turn the sensor too much counterclockwise. If the distance is too big the clutch does not stop the machine in case of a crash. To test you can adjust the precision air regulator of clutch to „0“. Now the clutch is disengaged and the sensor has to be ON.
    • Make sure that the sensor has still a clearance of about 0.5mm refer to manual Mayr EAS 450  or Mayr Clutch 0-481-325
    • Turn the synchrostar and make sure that there is no resistance coming from the sensor/clutch!

Possible cause /checklist:

  • Check all terminals at the Pacemaker board.
    • wait for 5 minutes after switching off the unit).
  • Check the welding pressure: Display > 35 daN!
  • Are the time settings t1 and t2 correct?
  • Is the weld power limiter switched „ON“? Which mode is chosen? Glueing?

Possible causes:

  1. Both supporting bearing underneath lower rollformer roller are broken.
    Take off the roller, and check each bearing, if needed exchange them with new ones.
  2. The shaft clearance and/or pressure of the last rollformer roller pair (bending station) is not correct.



How to reset:

  • Open the rollformer completely, close and lock it
  • Check whether the lifting motor has enough play after the rollformer is locked or not.
    • If not, the motor may have a wrong internal micro switch setting.
  • Make sure the rollformer is locked.
  • Completely unload the springs on both sides till each spring has an axial play.
  • To ensure that the roller is easily moving up and down, lift up each end of the roller by hand.
    • Belt tension inside does not effect conical rollforming!
  • Reset roller clearance to 0.1mm by feeler gauge.
    • Check the clearance with two gauges on the very left, and on the very right end of the roller!
  • Turn both springs clockwise till each screw touches the spring.
  • Load each spring by 2.5 revolutions.
  • Reset roller clearance to 0.05 – 0.10 mm
    • Check with two gauges on the very left, as well as the very right end of the shaft. After that you should be able to get a proper rollformed body, with an overlap of 5 mm.

Possible causes:

  • If your Big 8 slitter does have only one long magnetic rod-sensor, Big 8 cutting heads shall not touch each other, because the magnetic positioning rings (sitting around magnetic rod-sensor and mounted in each Big 8 unit), could interfear each other.
  • The amount of Big 8 units must always be equal with the amount of Big 8 icons shown on the display.

Preparing of LAN or WLAN access:

  1. Connect a new PC or laptop with the Wifi of the slitter (CM_POWER_CONTROL). If you don’t have the password, contact Can Man
  2. Open the network setting of that new device and set a fix IP address = 192.168.10.50 SubNet 255.255.255.0
  3. Transfer the “CanMan” folder (C:CanMan) with the programs from the original windows tablet to the new device

How to start panel/HMI software:

  1. Open the folder “CanMan”
  2. Open the folder “Runtime”
  3. Double click the file “WinGRS”
  4. Now the software starts and you can use it to control the slitter

Note: Panel Software is starting in Demo mode and does work for 60min only. After that it has to be restarted. To run the HMI without time limit you need a new license or if the original panel is not in use anymore the license can be transferred with the designated form:


Setting up of a new device in case of an unserviceable device:

  1. Ask Can Man for the HMI Software
  2. Unzip the received file to the desktop of the windows device
  3. Open the folder “CanMan”
  4. Open the folder “Runtime”
  5. Double click the file “WinGRS”
  6. Now the software starts and you can use it to control the slitter

! Attention ! The recipe from the unserviceable device is lost.

  1. Exchange the defective servo drive with the new one:
    The safety card is inserted, from above, in the card slot marked “safety” in the servo drive. Loosen the screw carefully.
  2. Transfer the safety card from the original to the new one:
    Carefully pull on the screw.
  3. The servo drive will be controlled by the IPC and needs no programming.


Attention:
Install the safety card without using force!

NOTE:
The Rexroth drive has absolute encoders, therefore a battery is necessary to back-up the encoder signals. If the battery is low you will receive an error message.
Exchange the battery, according to the Rexroth manual.

NOTE:
In case the position is lost you need to reset to the reference point, you will find instructions in the Rexroth manual.



ATTENTION:
Do not switch off the machine when you exchange the battery, otherwise the position gets lost.

NOTE:
The impact of this problem could mean PLC might switch to stop, and the centering column will lower itself.



Check the wiring of the holding magnet for a short circuit.



Exchange the relay of the magnet control. Refer to the electrical scheme and picture below.

The recipe helps to adapt the speed of the incoming can into welding roller and the actual welding speed. In the best case, those speeds are equal.

Below you find a table of this recipe in steps of 10 mm in can height.



Turn the wheel of the synchrostar, so that the pusher finger is as close to the welding roll as possible .



Now measure the distance from the top of the pusher finger to the center of the welding roll.

Distance = Can height – Overtravel

Example:
Can-height: 122 mm, Over-travel: 4.8 mm

Distance: 117.2 mm

The position of the welding roll (WR) has an influence on the overlap at the beginning and at the end.

WR slightly too high = Overlap at the beginning less
WR slightly too low = Overlap at the beginning constant
WR higher = Overlap at the end better
WR lower = Overlap at the end less
WR lower = Overlap at the beginning less







If you still couldn’t resolve the problem, read more at: I have problems to keep a constant overlap

Air Maintenance Unit

Oil:
Aral Vitam XR 46
(Festo – Part No. 12009388 T116)

Vacuum Pump
Mineral Vacuum Pump Oil
Multi Lube 100 – 750212 (Rietschle)

CM Article No. 003634 (5-lt container)

Cooling Unit
Coolant lubricant Zubora 92 F (standard)
CM Article No. 002609 (20-lt container)

PowerRoll™ Coolant H1 (food grade)
CM Article No. 011494 (7-lt container)

Gearbox
CLP 460 Oil
(e.g. Shell Omala 460)
See also data sheet on CD-Rom in Book 5

Central Lubrication Unit
Lithium Complex KP2P-30/EP – DIN 51502
NLGI Class 2 – Application –30 to +150°C

CM Article No. 007857 standard (400g)
CM Article No. 007858 food grade (400g)

Safety Data Sheet Cooling Lubricant
NOTE:
The safety data sheet of cooling lubricant you will find on CD-Rom in Book 5 in file „Cooling unit“



Gearbox Lubricants (PDF)

Zubora 92 F (PDF)

PowerROLL Coolant H1 (PDF)







The center of the calibration crown (tooling) should be X = 2 – 3 mm behind the center of the pendulum roller head.



To adjust the position, tip the „tool out“ symbol.



Then you have to loosen the two M10 screws on top of the tooling plate.



Then you loosen the M6 counternut (1) below the plate, then you can adjust the position with the M6 screw (2). When you turn clockwise, you will reduce the distance, when you turn counterclockwise you increase the distance between the calibration crown and the pendulum roller head.



Tighten the counternut (1) again and then tip „tool in“ to check the position.



The correct setting!



An alternative spot to measure the correct distance is below the tooling plate:

X = 82 – 83 mm.

Remote maintenance:
In the electrical cabinet a modem with a remote maintenance adapter is integrated. Therefore you can do small changes over the phone line.



Recommended is an analog phone line with a direct phone number, with no internal connection through a switch board.



CAUTION:
Disconnect the phone line, if not in service! The remote maintenance system depends on a very good quality phone network. A bad network will make the service impossible.



NOTE:
There are two possibilities to do maintenance work or updates to the PLC Software.



Remote maintenance:
In the electrical cabinet a modem with a remote maintenance adapter is integrated. Therefore you can do small changes over the phone line.

Recommended is an analog phone line with a direct phone number, with no internal connection through a switch board.

CAUTION:
Disconnect the phone line, if not in service! The remote maintenance system depends on a very good quality phone network. A bad network will make the service impossible.



PLC Software Siemens Step 7:

The Siemens PLC is programed by the Siemens PLC Software Step 7TM, the panel (Touchscreen) by WinCC flexibleTM.



The following requirements are necessary to provide this service:
– Notebook with Software Step 7TM and

WinCC flexibleTM from Siemens
– MPI/DP (Profibus) interface
– Technical engineer with the software

knowlegde of Step 7TM + WinCC flexibleTM.



CAUTION:
If you change the software without prior consultation of CAN MAN, the works guarantee becomes void.

Possible causes:

  • The movement (the back and forth) of the wire and the final wire break happens, because the analog signal is right on the threshold to start. You can solve the problem, when you increase the „Hertz“ setting of the frequency converters U4 and U6.
    • Place the programming display on the converter U4 and change the parameter C19 from 5Hz to 7Hz, and do the same for the converter U6.
  • A second reason for this phenomena could be the incorrect position of the analog sensors B1 and B2, see the following description, which is explained for the CM X8, but is valid also for the other automatic welders.

Possible causes:

  • The timing of the rounding process is too late.
  • The rolled can body is clamped or caulked in the catch station.
  • One or more transport fingers is / are twisted or lost.
  • The tension of one or both transport finger timing belts is too low.
  • Check the transport finger’s offset.
  • The final pusher fingers of the Synchrostar are taking over the can body from the transport fingers too late.
  • The precalibration is set too tight, or some precalibration rollers are not easily turning anymore.
  • Check if any groove of the z-bar section is worn.

Possible causes/checklist:

  1. Take the wire and switch out of the air supply. Can you smoothly move both cylinders of the wire drive?
  2. Check all rolls of wire drive system. Turn them by hand. All bearings ok?
  3. Check the transport wheel of wire chopper unit, condition and distance (acc. to instruction manual)
  4. Remove the belt of the motor for pendulum roller head and turn them by hand. Is it turning smoothly?
  5. Check the same on profiling and chopper unit.
  6. Now install the belts and tight them correctly.
  7. Put in the wire and adjust the air regulator.
    Cylinder wire profiling unit 1.5 bar and cylinder wire chopper unit 2.0 bar.
  8. Change the selector switch to “wire manual” and run the wire.
  9. Take a look at welding rolls – is wire position correct?
  10. Check profiling of copper wire, correct width and constant?
  11. Weld a can with current and without current. Wire break?
  12. Have you changed the wire? Use the old one to compare.
  13. Check the tin mark on the wire. Ok?
  14. Don’t forget to lubricate the profiling unit and chopper unit.

Possible causes:

  • Tool plug not properly connected.
  • Plug wet or humid.
    • Blow out and dry the plug.
  • Short-circuit from the diabolo rolls or precalibration to the mounting plate. Due to the temperature sensor cables, which are guided through mounting plate, an error message could be triggered through induction.
    • Dispose the short-circuit and clean the tooling from welding spillings. Use a contact spray.

The instructions below show you how to connect the following signals: a) Line control b) Error powder unit and c) Release powder

Signal: line control



In order to switch off the downline due to an error, the PLC has a prepared input. To use this input, we need a potential-free signal from the downline, which is closed when the line is ready. Use the terminal E5.1 to connect the line control.



As soon as an error occurs, the destacking of the sheets stops and after an adjustable delay the wire-run and the remaining drives. The canbody transport continues to run slowly. This mode plus the flashing of the key „Production ON“ shows the operator the status of the line stop.





ATTENTION:
Machine begins to produce independently again, respectively after the release of the line control.



This input should be connected the same way as the line control. Here as well we need a potential-free relay contact of the powder unit. But this contact needs to be open, if there is any error. This signal needs to be connected to E126.7.

The production shuts off, if an error occurs. After that the operator needs to switch on the machine.



Signal: Release powder



In order to switch on the powder, we provide a change-over contact. The contact switches as soon as the production or a single can is triggered. In order to provide enough time for the initialization of the powder, the destacking is delayed by an adjustable time. Before you connect this signal, you have to remove the comb bridge (1) and the link (2), in order to make the contact potential-free.



Use the terminal K6.2 (A124.2).



NOTE:
Consult the electrical scheme of your welder to double-check the various input signals. In case you are not successful with the connection, contact a CAN MAN electrician.



Cause 1:

The setting of t1 and t2 is wrong. If the timing is wrong the PM cannot execute the signal, which is necessary to memorize the canbodies in the reject unit and to start the record of the graph.

Setting of t1 and t2:

t1 defines the starting point for the reduced current time window.

t2 is the time, where the reduced current windows ends. t2–t1= thus is the timespan for the reduced current, therefore t2 > t1!



NOTE:
The value of t2 and t1 needs to be smaller as the cycle of one single can.

For example:
A production of 300/min. corresponds to a cycle time of 200 ms/can. Production of 600/min. corresponds to 100ms/can.



NOTE:
For a more detailed explanation of timing t1 and t2, consult your manual book 2, chapter 5.6.5. “Setting of Parameter t1 & t2 for reduced Current and Overlap Check“.



Cause 2:

Check the inductive proximity switch B64 at the final pusher unit for function, operating distance and defect.



B64

Final pusher (Synchrostar II): Sensor B64.



Description:
Inductive proximity sensor for embeddable mounting.
Polarity: PNP
Output: NO. or NC.
Operating distance: 2mm



Cause 3:

Check the tool switch B6 in the calibration tool for function, operating distance and defect.



B6

The position of the welding sensor B6, can be almost flush. Just make sure that you do not get scratches on the canbodies.



The height of the sensor can be adjusted here (see arrow).



Inductive Sensor (magnetic field resistant)

Mounting mode: flush
Function principle: inductive/normally open Rated operating distance: 3 mm



  1. Check the position of the switch!
  2. The internal battery is defect!

NOTE:
If you do not use the panel for a longer period (several weeks), the device should be turned off on the backside. Otherwise the internal battery will discharge and will get damaged!



NOTE:
The internal battery can be exchanged by opening the back cover of the unit. CM Article No. 009548



If you push the button on the right side, you are able to see the status of the integrated battery and optional available second battery.



The optional second battery is located at the back of the device.



Possible causes:

  • No supply of a slave on the bus system.
    • Check supply of all slaves.
      Emergency stop must be released.
  • Address of slave on Profibus is wrongly adjusted.
    • Check setting of all DIP switches on the Lenze bus module and on the Linmot controller.
      You can find the correct setting on the wiring diagram.
  • Wrong position of the switch for end resistant on the bus plug.
    • Check all switches on the complete bus system. Seriously follow the cable from PLC to the last slave. First plug and plug of last slave must be set to ON, all other plugs to OFF.

Check function of the reed sensors B256, B257, B258 and B259.

You can find them on the cylinders of the magnetic conveyor (Y125) and transport roll (Y124). Manually activate the two cylinders on the valve block and adjust the reed sensors if necessary.

Refer also to the pneumatic diagram here.

Possible causes:

  • Responsible for having all stripes correctly aligned after first operation, are both rubber shafts.
  • Each rubber shaft has a left and right support, and each support is under pressure by a pressure spring.
  • If the setting of the springs is not correct, some stripes may stop earlier or later than other stripes:
    • Increase or reduce the tension on the springs, till you get a satisfying result.
  • If this still does not solve the problem, a complete resetting of both rubber shafts is necessary:
    • Reduce the tension of all four screws completely.
    • Release the air pressure by switching off the main air supply.
    • Both rubber shafts have to touch the lower rollers completely.
    • If, for instance, the left side of one rubber shaft does not touch the lower roller, do the following:
      • Slightly undo the M8 of the main support, till the rubber shaft goes down automatically, then lock the screw again.
    • Start to tighten the pin screw (for spring pressure tension) till each screw does touch the spring.
    • Turn every pin screw between 2-3 revolution, but all the same!
    • When you move the piston rod of the pneumatic cylinder completely in by hand, the rubber rollers must of course touch the lower roller, and you must see the springs get compressed further.
    • Switch the main air pressure supply back on.



Check the transport rings on the knives: If the rubber is too small (due to heavy wear) conical or much bigger (if no original spares are in use) cutting tolerances can be negatively affected!



Make sure that enough support rings are mounted between the knives. They keep the sheet leveled. The thinner the sheets, the more important it is to keep them flat.



Make sure that all knives are well grinded.

NOTE:
You should regrind your cutters after approx. 3 mio. sheets.



Possible causes:

1. Clearance between the upper and lower cutter is too small – min. 1/100 mm.



2. The bearings of the roller cutter have play => they need to be free of play!

3. The roller cutter shaft is heating up differently!

a) Something touches the roller cutter => slowly turn the roller cutter by hand

b) the bearing is heating up too much => bearing defect!





c) If you have an exchange roller cutter => the roller cutter shaft might not be fixed properly to the side.



=> or the roller cutter shaft is too tensely assembled!

Switch the battery “ON” on the backside of the touch-panel.



Start the touch-panel.



Click on this symbol.



Click on the “CUSTOMER” key.



Login with your password.



After you push the tool button once more, you can see the recipe window.



WARNING:
Do not push the load button. In this case you load an empty recipe and all parameters are set to 0 and you are not able to set back!



Choose a free memory space.
In this example 3 (blue coloured frame)



Push the „SAVE” button and a keyboard field will appear.



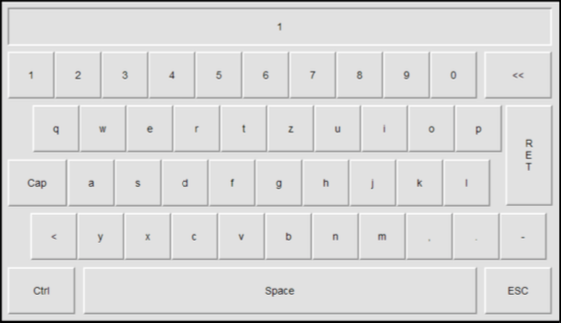

Enter a name for your program, e.g. „TEST“ and press the return key.
Confirm the entry with “Yes” or “No”.



NOTE:

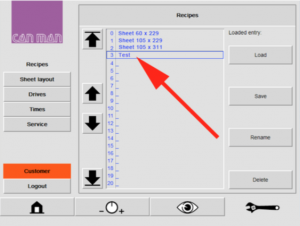

Now you can see the saved recipe on the list. You have saved the actual sheet parameter incl. the basic parameters of the PowerCUT.

Possible cause:

  • The reed sensor B233 on the vertical cylinder rear/right corner is not correctly adjusted.
    • when piston of cylinder remains in bottom position (due to blank magazine clearing process), the reed switch must be active



Possible causes:

Make sure that the lateral, adjustable top guides (picture) are set correctly in lateral position as well as in height. They shall guide and hold the stripes as flat as possible over both sensors B260 and B261. Both sensors need to be reached at same time, otherwise the error will occur.



If the lateral guide is too far away from the sensor, the sheet might bulge. Therefore move the lateral guide closer to the sensor.

NOTE:
Do not loosen the screw marked red. The standard setting for top guide should be approx. X = 72 mm.



– Make sure that pressing rolls are adjusted correctly (picture).

– Check the movements of the sheet, they might get stuck somewhere.



  • Strip height is set wrong. Then the belt in front of the second operation is running too fast or too slow. This can create a problem with strip feeder LinMot.

Possible cause:

  • too many braking magnets
    => reduce the amount of magnets

NOTE:
If you have too few magnets, it might cause angularity problems!



Damages at the front edge:

  • the spring load at the catch might be too high
    => reduce spring load (see picture).



  • lateral guide (see picture – in red) might be too close
    => increase the distance “X” slightly.

NOTE:
Do not loosen the red marked screw. The standard setting for top guide should be approx. X = 72 mm.



Possible causes:

  • make sure that the inner core and the suction cup are on the same level (picture 1).
  • make sure that the suction unit in the upper (active) position is on the sheet metal level (picture 2)



Find a complete error list together with the interpretation of the error codes

Download PDF here

Possible causes:

  • Since the slider of the linear motor contains strong magnets, remove dust or small particles from slider with a disposable paper.
  • LED state shown by the yellow LED on the controller or check the hand panel
    • “Sensors / Actors 3/4”
  • Motor resistant according Linmot manual
  • Cable according Linmot manual



Possible causes:

  • wrong cutter setting
  • cutters are blunt
    • grind your cutters
  • watch the sucker unit in front of the 1. cutting operation for too much downwards-bow of the sheet
    • adjust bottom stop
    • replace worn out sucker or parts
    • mount the full range of downholder rings – see picture below!
    • they prevent the bowing movement of the sheets

NOTE: The SQM measuring device can only detect “angular” cutting errors!

Possible cause:

  • wrong position of a reed sensor
    • check all reed sensors
    • use the help of the display – which shows the status of the sensors
    • consult the timing diagram of the PowerCUT – download here.

Possible cause:
– bus connector limit switch not set correctly – address and dip switches not set according

to the electrical scheme (bus subscriber) – wire defect
– bus connector defect
– bus modul or subscriber defect.



To narrow the error you have to check the status with all the subscribers.
To test, switch the limit switch into the bus connector => the bus runs now to the corresponding subscriber, e.g. “Lenze inverter” which the LED flashes yellow.

If you are able to narrow in the error, exchange the corresponding components.



NOTE:
Do not forget to set the parameter and the dip switches accordingly. The parameters are mentioned in the electrical scheme!



BF LED (red) not active

Lenze inverter:
LED upper-left must light up (green)
LED upper-right must be flashing (yellow)

LinMot:
Error LED not active or no error code profibus





Beckhoff Control:

For the Beckhoff Control, please refer to this PDF for instructions.



Please refer to “User Manual Motion Control Software” for the error codes of the MC Software. The PROFIBUS Interface has the following additional error codes:

Error code hexadecimal: Error description: C1h Fatal error: Drive not supported
C2h Config error: Invalid MACID
C3h DP Err: Connection lost

  • Check the squareness of a couple sheets: From corner to opposite corner, as well as opposite corner distance. Compare both measures: The difference should be < 1 mm.
  • Make sure that the lateral position of the sheet stack is correct: Correct the stack position by the handle, until the sheet does < 2 mm lateral movement till the final position before 1. cutting operation.
  • Measure the sheet flow height on the first table: 0.5 mm below cutting level.
  • Stop 1 sheet before the 1. operation – with centering rollers closed – and check the pressure on the spring roller: Too much load on the spring can damage the sheet.
  • The speed of the first cutters (measure on the carbide knife) must be a around 1 m/min less compared to the speed of the driven conveyor belt.
  • Make sure that both trim-guides (after 1. operation) do have a space of 0.5 mm to the stripe edge!
  • Measure the burrs of all stripes, if necessary grind the knifes!
  • Make sure that one pair of knifes is mounted reversely (helps to guide trim downwards, helps to avoid bow cut).
  • Measure the concentricity of all transport rings, exchange damaged transport rings!
  • Fill-up too big space(s) between the cutters with white guide-rings ! This helps especially for thin sheets and for higher developments. Measure the gap between each guide-rings with feeler-gauge 0.50 mm.
  • Regulate the position of the centering system by the hand wheel, till both trims measure the correct width.
  • Check the parallelism of each trim: Bend the trim, and compare both widths. The result is related to the squarness of the sheets. If the trims are not parallel, it is needed to adjust the alignment of one none-spring tensioned support bearing on the centering device.
  • Measure parallelism of all stripes after 1. operation: Target < 0.05 mm!
  • Set the sensors between both overhead conveyors (after 1. operation) correctly: Laterally, the stripes should not move more than 2 mm after being centered by the 2. centering device!
  • Measure the stripe flow height on the second table: 0.5 mm below cutting level!
  • Measure the blank flow height after the 2. operation: 1 – 2 mm below cutting level!
  • Make sure that enough magnets are mounted in the area before the 2. operation, and that the magnets are mounted at the correct positions. Attention: Too much magnet force will cancel the centering device function!
  • Reset the postion of the Linmot infeed device according to manual.
  • Reset the position of the Linmot centering device according to manual.
  • Position 1 stripe before the 2. operation – with centering rollers closed – and check the pressure on the spring roller: Too much load on the spring can damage the stripe!
  • Check the spring tension of the push finger on the second operation. Maybe it is to low and the push finger does not go back to the right position after moving back to feed the next stripe.
  • Check the mechanical condition of the push finger. Maybe it is worn out and have to much backlash.
  • The acceleration belt for the second operation must be tensioned. Attention!! If spanner is readjusted, the thread bolt can touch the knives. We recommend to chop the thread bolt or take out the spanner and remove the thread bolt! (related for PowerCUT manufactured before 02.2015.)
  • The speed of the Linmot infeed system during transfer into 2. operation must be correct > cannot be measured.
  • The speed of the second cutters (measure on the carbide knife) must be a around 1 m/min less compared with to the speed of the driven conveyor belt (only if lift-table is in use).
  • Measure the burrs of all stripes, if necessary grind the knives!
  • Measure the concentricity of all transport rings, exchange damaged transport rings!
  • Make sure that the grooves of all Big8 z-bars are clean!
  • Fill-up too big space between the cutters with white guide-rings! Measure the gap between each guide-rings with feeler-gauge 0.50 mm.
  • Use the SQM measuring device to measure the angular errors of each stripe!
  • Test the angular tolerances by choosing velocity 1, 2 and 3. Report the differences.

Setting gauge for blank magazine

The setting gauge allows faster adjustment of the blank magazine. This file can be used as a template for individual manufacturing according to specific formats.

To remove the used cutting blades, two spherical clamp screws M6 (8) have to be loosened. The steps for the fitting of the fixing plate (4), which is part of the standard tools delivered with every slitter, are:

  1. Remove the plastic plate cover, 4 screws M5.
  2. Turn the cutter shaft (7) which is fitted to the drive motor (1) with the special tool (3) until the blade (2) is in the horizontal cutting position.
  3. Secure the direct driven cutter shaft (7) in this position with a fixing plate (4) against twisting. The fitting of the fixing plate (4) is done with 2 M5 screws which were used on the plastic plate cover.
  4. Release the clamp nut (6) of the not driven cutter shaft (9) with the special tool (3) and the point opening socket wrench (5).
    Use the same wrench (5) on the clamp nut (6) beside the drive motor (1). Turn clockwise = to grip
    Turn counterclockwise = to release
  5. Turn the released cutter shaft (9) until the blades are nearly closed together. Place a small piece of 0,02 mm tape between the blades. Turn the cutter shaft (9) until the tape is tied between the blades.
  6. In this position, the clamp nut (6) of the cutter shaft (9) should be tied up with the special tool (3) and the point opening socket wrench (5).
  7. Take away the tape and check that the cutter blades do not touch each other. Turn with the special tool (3), in the correct direction, with the motor driven cutter shaft (7). The ahead running blades should be in this cutter shaft.

Important
During the assembly of the new cutter blades (2) check that the ahead running blade is on the motor driven cutter shaft (7). See picture no. 3

Nobody should start the unit during the set up. The emergency button should be pressed down, the key-operated switch taken away from the slitter.

Non-compliance of this instruction will cause cutter blade damage or blocking of shafts.

Possible causes:

  • the preselect counter is activated but a value is missing
  • the blank collector is full
  • if connected to a line control, it may have triggered a line stop

Can Man Purple:

  • RAL 4008

Can Man Silver:

  • RAL 9006 white-aluminium, bright
All Can Man content is now also available on the Soudronic Group website.
Where do you want to continue your journey?
All Can Man content is now also available on the Soudronic Group website.
Where do you want to continue your journey?
